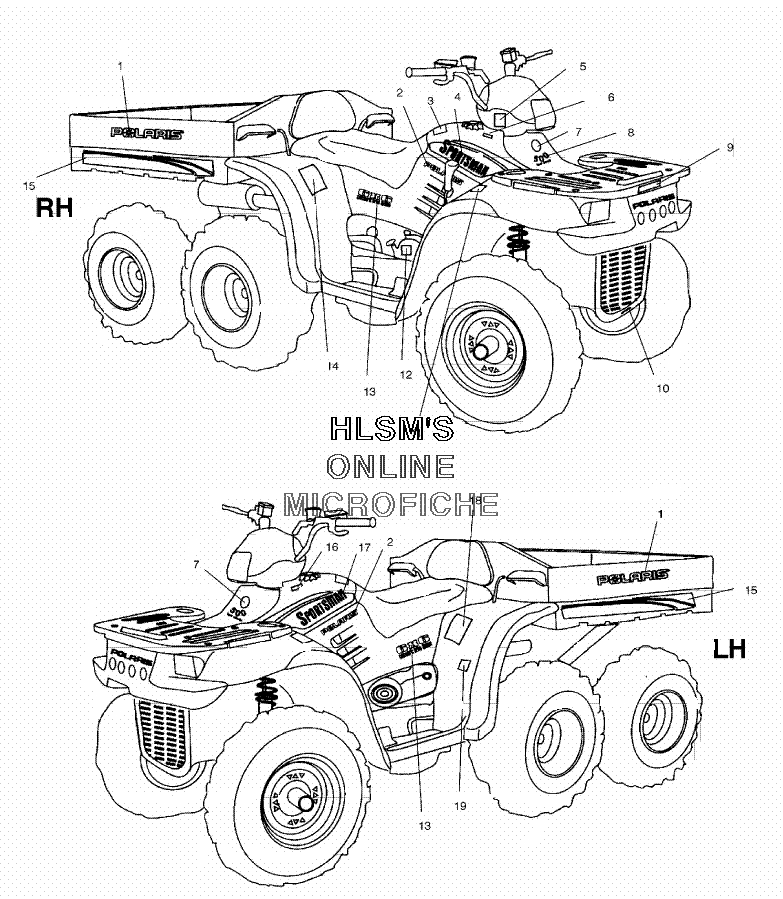

DECALS для Polaris SPORTSMAN 6X6 (A00CL50AA) - 2000 года выпуска
-
№АртикулНазвание
-
17078537 DECAL, "POLARIS", BOXDECAL, "POLARIS", BOX
-
27078443 DECAL, "POLARIS", SDPNL (WHITE)DECAL, "POLARIS", SDPNL (WHITE)
-
37078254 DECALDECAL
-
47078534 DECAL,TANK SIDE (RIGHT) (AA)DECAL,TANK SIDE (RIGHT) (AA)
-
47078545 DECAL,TANK SIDE (RIGHT) (DA)DECAL,TANK SIDE (RIGHT) (DA)
-
57078003 DECAL, HEADLIGHT ADJUSTMENTDECAL, HEADLIGHT ADJUSTMENT
-
67074935 DECAL 95-97 WARNING AWD SWITCHDECAL 95-97 WARNING AWD SWITCH
-
77078315 LOGO, 45TH ANNIVERSARY (BUILT BEFORE 12/31/99)LOGO, 45TH ANNIVERSARY (BUILT BEFORE 12/31/99)
-
77078465 DECAL, STAR LOGO (BUILT AFTER 12/31/99)DECAL, STAR LOGO (BUILT AFTER 12/31/99)
-
87078449 DECL,"500L/C,4STRK",FR CVRDECL,"500L/C,4STRK",FR CVR
-
97074954 DECAL, REAR DECKDECAL, REAR DECK
-
107074220 DECAL, MACPHERSON STRUTDECAL, MACPHERSON STRUT
-
117079292 DECAL, WARNING DISC, 6X6DECAL, WARNING DISC, 6X6
-
127078577 DECAL, DRAIN RECOILDECAL, DRAIN RECOIL
-
137078535 DECAL,"6X6 CDS" (LEFT)DECAL,"6X6 CDS" (LEFT)
-
137078536 DECAL,"6X6 CDS" (RIGHT)DECAL,"6X6 CDS" (RIGHT)
-
147072715 DECALDECAL
-
157078538 DECAL, STRIPE, BOX (LEFT)DECAL, STRIPE, BOX (LEFT)
-
157078549 DECAL, STRIPE, BOX (RIGHT)DECAL, STRIPE, BOX (RIGHT)
-
167079604 DECALDECAL
-
177078533 DECAL, TANK SIDE (LEFT) (AA)DECAL, TANK SIDE (LEFT) (AA)
-
177078544 DECAL, TANK SIDE (LEFT) (DA)DECAL, TANK SIDE (LEFT) (DA)
-
187074109 DECAL,LOAD DIST.(350-6X6)DECAL,LOAD DIST.(350-6X6)
-
197075719 DECAL, TIRE PRESS, MAG 6X6DECAL, TIRE PRESS, MAG 6X6
