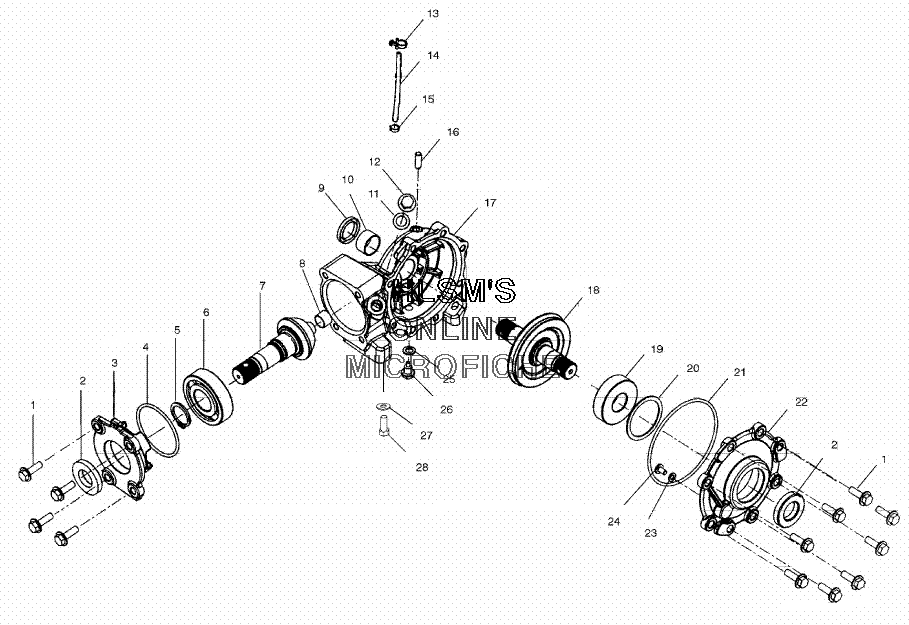

FRONT - GEARCASE для Polaris SPORTSMAN 6X6 (A00CL50AA) - 2000 года выпуска
-
№АртикулНазвание
-
1A1341276 GEARCASE, FRONT ASSY. (INCL. 1-12,16-26) (BUILT BEFORE 7/1/99)GEARCASE, FRONT ASSY. (INCL. 1-12,16-26) (BUILT BEFORE 7/1/99)
-
1A1341323 GEARCASE, FRONT ASSY. (INCL. 1-12,16-26) (BUILT AFTER 7/1/99) 1GEARCASE, FRONT ASSY. (INCL. 1-12,16-26) (BUILT AFTER 7/1/99) 1
-
13233252 SCREWSCREW
-
23233248 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
33233701 INPUT COVER, FRONT HOUSINGINPUT COVER, FRONT HOUSING
-
43233700 O-RINGO-RING
-
53233699 RING, RETAININGRING, RETAINING
-
63233589 BEARING, BALLBEARING, BALL
-
73233698 PINION, INPUT (1341276)PINION, INPUT (1341276)
-
73233726 PINION, INPUT (14 TEETH) (1341323)PINION, INPUT (14 TEETH) (1341323)
-
83233541 BUSHING, GARLOCKBUSHING, GARLOCK
-
93233319 SEALSEAL
-
103233697 BUSHING, GARLOCKBUSHING, GARLOCK
-
113233324 WASHERWASHER
-
123233711 PLUG, OIL FILLPLUG, OIL FILL
-
137080756 CLIP, SNAP-INCLIP, SNAP-IN
-
148450003-1525 FUEL LINE (1/4 ID/1525 CM.) (OPT)FUEL LINE (1/4 ID/1525 CM.) (OPT)
-
157080307 CLAMPCLAMP
-
163233524 TUBE, VENTTUBE, VENT
-
173233696 GEARCASEGEARCASE
-
183233710 OUTPUT SHAFT SUBASSY., FRONT HOUSING (1341276)OUTPUT SHAFT SUBASSY., FRONT HOUSING (1341276)
-
183233694 OUTPUT SHAFT, FRONT HOUSING (1341276)OUTPUT SHAFT, FRONT HOUSING (1341276)
-
183233695 GEAR 29 TEETH, FRONT HOUSING (1341276)GEAR 29 TEETH, FRONT HOUSING (1341276)
-
183233725 SHAFT, OUTPUT 29 TEETH (1341323)SHAFT, OUTPUT 29 TEETH (1341323)
-
193233020 BEARINGBEARING
-
203233554 SHIM (OPT)SHIM (OPT)
-
213233693 O-RINGO-RING
-
223233692 OUTPUT COVER, FRONT HOUSING (1341276)OUTPUT COVER, FRONT HOUSING (1341276)
-
223233724 COVER, OUTPUT (1341323)COVER, OUTPUT (1341323)
-
233233583 SHIM (450 X .265) (OPT)SHIM (450 X .265) (OPT)
-
243233702 BUTTON, THRUST (1341276)BUTTON, THRUST (1341276)
-
243233582 THRUST BUTTON (1341323)THRUST BUTTON (1341323)
-
253233254 PLUG, WASHERPLUG, WASHER
-
263233253 PLUG, HEXAGON FLANGEPLUG, HEXAGON FLANGE
-
277552603 WASHERWASHER
-
287512492 SCREWSCREW
