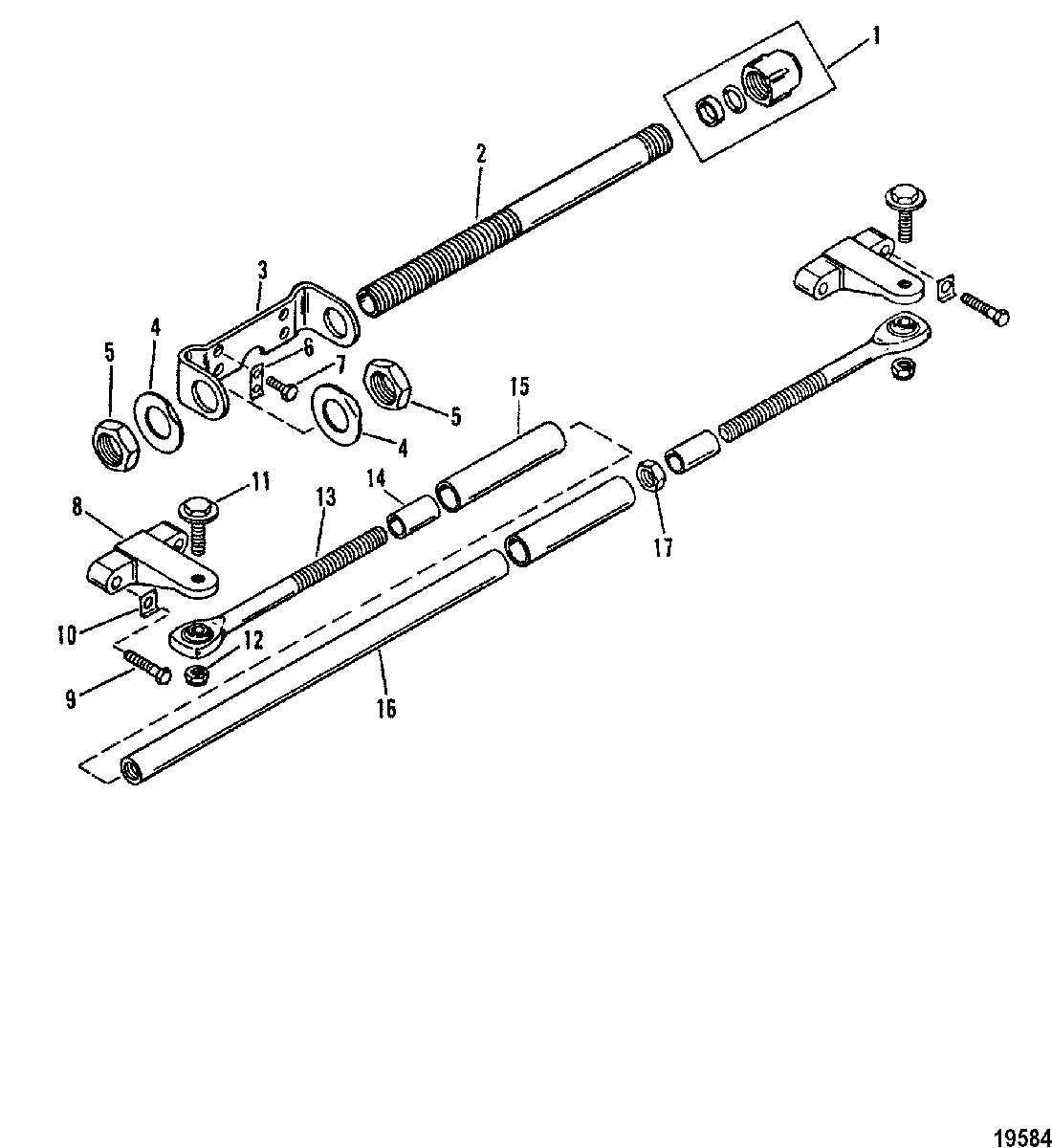

Dual Engine Extension Kit для Mercury - XR-4 0C239553 THRU 0D081999
-
№АртикулНазвание
-
-92876A9 DUAL ENGINE EXTENSION KITDUAL ENGINE EXTENSION KIT
-
119624A1 SEAL KITSEAL KIT
-
271565 TUBE-CABLE GUIDE, CABLE GUIDETUBE-CABLE GUIDE, CABLE GUIDE
-
341055A1 MOUNTMOUNT
-
414-42100 TAB WASHERTAB WASHER
-
511-8M0041651 NUT, (.875-14)NUT, (.875-14)
-
688404 TAB WASHERTAB WASHER
-
710-38601 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
817729A1 BRACKETBRACKET
-
910-62055 SCREW, (.3125-24 x 1.25)SCREW, (.3125-24 x 1.25)
-
1017728 TAB WASHERTAB WASHER
-
1110-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
1211-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1397933A1 STEERING EYESTEERING EYE
-
1423-23651 SLEEVE, (1.625)SLEEVE, (1.625)
-
1597931 TUBING, (4.00 Inches)TUBING, (4.00 Inches)
-
168M0026098 TUBETUBE
-
1711-42099 NUT, (.562-18)NUT, (.562-18)
