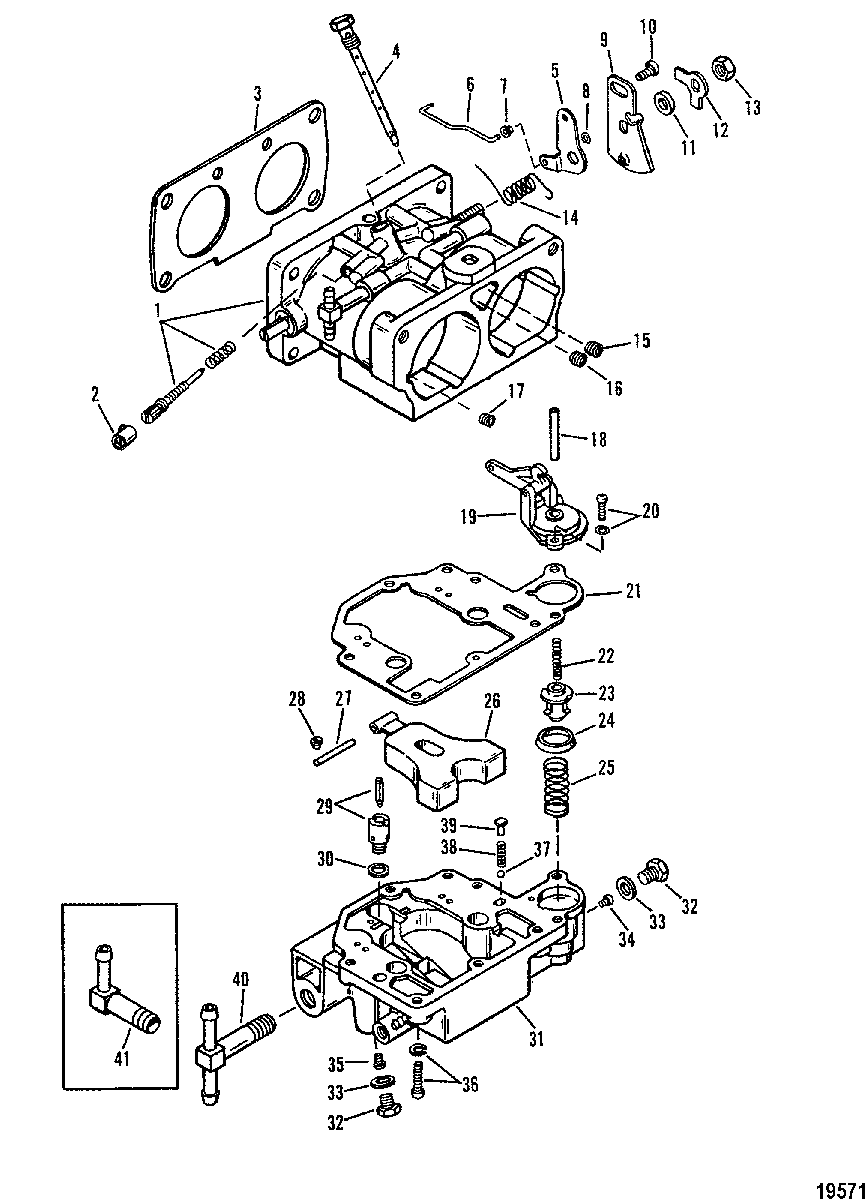

Carburetor для Mercury - XR-4 0C239553 THRU 0D081999
-
№АртикулНазвание
-
13311-818650A28 CARBURETOR ASSEMBLY
(135 - WMH-8-Top)CARBURETOR ASSEMBLY
(135 - WMH-8-Top) -
13311-818650A29 CARBURETOR ASSEMBLY
(135 - WMH-8-Center)CARBURETOR ASSEMBLY
(135 - WMH-8-Center) -
13311-818650A55 CARBURETOR ASSEMBLY
(135 - WMH-8-Bottom)CARBURETOR ASSEMBLY
(135 - WMH-8-Bottom) -
13311-818650A28 CARBURETOR ASSEMBLY
(135 - WMH-8A-Top)CARBURETOR ASSEMBLY
(135 - WMH-8A-Top) -
13311-818650A29 CARBURETOR ASSEMBLY
135 - WMH-8A-Center)CARBURETOR ASSEMBLY
135 - WMH-8A-Center) -
13311-818650A55 CARBURETOR ASSEMBLY
(135 - WMH-8A-Bottom)CARBURETOR ASSEMBLY
(135 - WMH-8A-Bottom) -
13311-818650A31 CARBURETOR ASSEMBLY
(150 - WMH-1-Top)CARBURETOR ASSEMBLY
(150 - WMH-1-Top) -
13311-818650A32 CARBURETOR ASSEMBLY
(150 - WMH-1-Center)CARBURETOR ASSEMBLY
(150 - WMH-1-Center) -
13311-818650A56 CARBURETOR ASSEMBLY
(150 - WMH-1-Bottom)CARBURETOR ASSEMBLY
(150 - WMH-1-Bottom) -
13311-818650A31 CARBURETOR ASSEMBLY
(150 - WMH-7-Top)CARBURETOR ASSEMBLY
(150 - WMH-7-Top) -
13311-818650A32 CARBURETOR ASSEMBLY
(150 - WMH-7-Center)CARBURETOR ASSEMBLY
(150 - WMH-7-Center) -
13311-818650A56 CARBURETOR ASSEMBLY
(150 - WMH-7-Bottom)CARBURETOR ASSEMBLY
(150 - WMH-7-Bottom) -
13308-9672A61 CARBURETOR
(XR4/MAGNUM II-Top)CARBURETOR
(XR4/MAGNUM II-Top) -
13308-9672A62 CARBURETOR
(XR4/MAGNUM II-Center)CARBURETOR
(XR4/MAGNUM II-Center) -
13308-9672A63 CARBURETOR
(XR4/MAGNUM II-Bottom)CARBURETOR
(XR4/MAGNUM II-Bottom) -
13311-818650A37 CARBURETOR
(175 - WMH-2-Top)CARBURETOR
(175 - WMH-2-Top) -
13311-818650A38 CARBURETOR
(175 - WMH-2-Center)CARBURETOR
(175 - WMH-2-Center) -
13311-818650A58 CARBURETOR
(175 - WMH-2-Bottom)CARBURETOR
(175 - WMH-2-Bottom) -
13311-818650A37 CARBURETOR
(175 - WMH-11-Top)CARBURETOR
(175 - WMH-11-Top) -
13311-818650A38 CARBURETOR
(175 - WMH-11-Center)CARBURETOR
(175 - WMH-11-Center) -
13311-818650A58 CARBURETOR
(175 - WMH-11-Bottom)CARBURETOR
(175 - WMH-11-Bottom) -
13311-818650A52 CARBURETOR
(200-Top)CARBURETOR
(200-Top) -
13311-818650A53 CARBURETOR
(200-Center)CARBURETOR
(200-Center) -
13311-818650A59 CARBURETOR
(200-Bottom)CARBURETOR
(200-Bottom) -
2810779 CAPCAP
-
327-677511 GASKET, MOUNTING FLANGEGASKET, MOUNTING FLANGE
-
4810743 EMULSLON TUBE
(135/150/XR4/Magnum II/175)EMULSLON TUBE
(135/150/XR4/Magnum II/175) -
4810764 EMULSION TUBE
(200)EMULSION TUBE
(200) -
5810748 ACCELERATOR LEVER ASSEMBLYACCELERATOR LEVER ASSEMBLY
-
6810723 ACCELERATOR LINKACCELERATOR LINK
-
7NSS NOT SOLD SEPARATE, Bushing, Accelerator LinkNOT SOLD SEPARATE, Bushing, Accelerator Link
-
8NSS NOT SOLD SEPARATE, Ring, Accelerator LinkNOT SOLD SEPARATE, Ring, Accelerator Link
-
9810721 THROTTLE LEVER (TOP/CENTER)THROTTLE LEVER (TOP/CENTER)
-
9810722 THROTTLE LEVER (BOTTOM)THROTTLE LEVER (BOTTOM)
-
10NSS NOT SOLD SEPARATE, Screw, Accelerator LeverNOT SOLD SEPARATE, Screw, Accelerator Lever
-
111395-811284 SPACER, THROTTLE LEVER
(135/150/XR4/Magnum II/175)SPACER, THROTTLE LEVER
(135/150/XR4/Magnum II/175) -
111395-811284 SPACER
(200)SPACER
(200) -
1212-810745 WASHER, LEVER RETAINER NUTWASHER, LEVER RETAINER NUT
-
1311-810744 NUT, LEVER RETAINERNUT, LEVER RETAINER
-
14NSS NOT SOLD SEPARATE, Spring, Throttle ReturnNOT SOLD SEPARATE, Spring, Throttle Return
-
151399-3517 JET, (.084), BOWL VENT
(150)JET, (.084), BOWL VENT
(150) -
151395-6030 JET, (.070), BOWL VENT
(135)(WMH-5)JET, (.070), BOWL VENT
(135)(WMH-5) -
151395-6246 JET, (.048), BOWL VENT
(135)(WMH-8)JET, (.048), BOWL VENT
(135)(WMH-8) -
1519266040 JET, BOWL VENT
(XRR/Magnum II)JET, BOWL VENT
(XRR/Magnum II) -
151395-6201 JET, (.080), BOWL VENT
(175)JET, (.080), BOWL VENT
(175) -
151399-3796 JET, (.076), BOWL VENT
(200)JET, (.076), BOWL VENT
(200) -
161399-5315 MAIN FUEL JET, (.042), IDLE AIR BLEED
(150)MAIN FUEL JET, (.042), IDLE AIR BLEED
(150) -
161395-7394 JET, (.044), IDLE AIR BLEED
(135-WMH-5)(175)JET, (.044), IDLE AIR BLEED
(135-WMH-5)(175) -
161395-6246 JET, (.048), IDLE AIR BLEED
(135-WMH-8)(175)JET, (.048), IDLE AIR BLEED
(135-WMH-8)(175) -
1619266036 JET, IDLE AIR BLEED
(XR4/Magnum II-WMH-4)JET, IDLE AIR BLEED
(XR4/Magnum II-WMH-4) -
161395-6359 JET, (.052), IDLE AIR BLEED
(175)JET, (.052), IDLE AIR BLEED
(175) -
1619266040 JET, IDLE AIR BLEED
(200)JET, IDLE AIR BLEED
(200) -
161399-5317 JET, (.046), IDLE AIR BLEED
(200)JET, (.046), IDLE AIR BLEED
(200) -
17810742 JET, (.044), PROGRESSION AIR
(150)(175-WMH-2)JET, (.044), PROGRESSION AIR
(150)(175-WMH-2) -
171399-3026 JET, (.036), PROGRESSION AIR
(135-WMH-5)JET, (.036), PROGRESSION AIR
(135-WMH-5) -
171399-7570 JET, .040, PROGRESSION AIR
(135WMH-8)(WMH-8)JET, .040, PROGRESSION AIR
(135WMH-8)(WMH-8) -
17810741 JET, (.030), PROGRESSION AIR
(XR4/Magnum II)JET, (.030), PROGRESSION AIR
(XR4/Magnum II) -
17815633070 JET, PROGRESSION AIR
(175-WMH-11)JET, PROGRESSION AIR
(175-WMH-11) -
171399-3251 JET, (.034), PROGRESSION AIR
(200)JET, (.034), PROGRESSION AIR
(200) -
1817-810747 STEM, ACCELERATOR PUMPSTEM, ACCELERATOR PUMP
-
19810737 COVER ASSEMBLY, ACCELERATORCOVER ASSEMBLY, ACCELERATOR
-
20NSS NOT SOLD SEPARATE, Screw, AcceleratorNOT SOLD SEPARATE, Screw, Accelerator
-
21NSS NOT SOLD SEPARATE, Gasket, Fuel BowlNOT SOLD SEPARATE, Gasket, Fuel Bowl
-
22NSS NOT SOLD SEPARATE, Spring, Accelerator PumpNOT SOLD SEPARATE, Spring, Accelerator Pump
-
23810762 PUMP CUP ASSEMBLYPUMP CUP ASSEMBLY
-
24NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
25NSS NOT SOLD SEPARATE, Spring, Accelerator PumpNOT SOLD SEPARATE, Spring, Accelerator Pump
-
26810738 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
27NSS NOT SOLD SEPARATE, Float ShaftNOT SOLD SEPARATE, Float Shaft
-
28NSS NOT SOLD SEPARATE, Screw, Float ShaftNOT SOLD SEPARATE, Screw, Float Shaft
-
291395-8116901 VALVE SEAT KITVALVE SEAT KIT
-
30NSS NOT SOLD SEPARATE, Gasket, Valve SeatNOT SOLD SEPARATE, Gasket, Valve Seat
-
31810729 FUEL BOWL (W/FITTLNG-TOP)
(135/150/175/XR4/Magnum II/175-WHM-2/200)FUEL BOWL (W/FITTLNG-TOP)
(135/150/175/XR4/Magnum II/175-WHM-2/200) -
31810734 FUEL BOWL (CENTER/BOTTOM)
(135/150/175/XR4/Magnum II/175-WHM-2/200)FUEL BOWL (CENTER/BOTTOM)
(135/150/175/XR4/Magnum II/175-WHM-2/200) -
311395-811932 FUEL BOWL (TOP)
(175-WMH-11)FUEL BOWL (TOP)
(175-WMH-11) -
311395-811931 FUEL BOWL (CENTER/BOTTOM)
(175-WMH-11)FUEL BOWL (CENTER/BOTTOM)
(175-WMH-11) -
321395-811694 PLUG, POWER JETPLUG, POWER JET
-
33NSS NOT SOLD SEPARATE, Gasket, Power/Progression JetNOT SOLD SEPARATE, Gasket, Power/Progression Jet
-
341399-4217 MAIN JET, (.062)
(150)(XR4/Magnum II)MAIN JET, (.062)
(150)(XR4/Magnum II) -
341395-6028 JET, (.050)
(135)JET, (.050)
(135) -
341399-4216 JET, (.064)
(175/200)JET, (.064)
(175/200) -
35810740 JET, POWER
(150-WMH-1/XR4/Magnum II/175-WMH-2)JET, POWER
(150-WMH-1/XR4/Magnum II/175-WMH-2) -
351395-811283 JET, POWER
(150-WMH-7)JET, POWER
(150-WMH-7) -
35816151 JET, POWER
(135-WMH-5)JET, POWER
(135-WMH-5) -
351395-811293 JET, POWER
(135-WMH-8)JET, POWER
(135-WMH-8) -
351395-811685 JET, POWER
(135-WMH-8A)JET, POWER
(135-WMH-8A) -
351395-811285 POWER JET, POWER
(XR4/Magnum II-WMH-6)POWER JET, POWER
(XR4/Magnum II-WMH-6) -
351395-811925 POWER JET, POWER
(175-WMH-11)POWER JET, POWER
(175-WMH-11) -
35810763 POWER JET, POWER
(200)POWER JET, POWER
(200) -
36NSS NOT SOLD SEPARATE, Screw, Fuel BowlNOT SOLD SEPARATE, Screw, Fuel Bowl
-
37NSS NOT SOLD SEPARATE, Metering BallNOT SOLD SEPARATE, Metering Ball
-
38NSS NOT SOLD SEPARATE, Metering SpringNOT SOLD SEPARATE, Metering Spring
-
39NSS NOT SOLD SEPARATE, Retainer, Metering SpringNOT SOLD SEPARATE, Retainer, Metering Spring
-
401395-7900 TEE FITTING (TOP/CENTER)TEE FITTING (TOP/CENTER)
-
411395-7901 ELBOW (BOTTOM)ELBOW (BOTTOM)
-
-27-815791A92 GASKET SET
(135/150)GASKET SET
(135/150) -
-27-815791A92 GASKET SET
(XR4/Magnum II/175)GASKET SET
(XR4/Magnum II/175) -
-27-815791A92 GASKET SET
(200)GASKET SET
(200) -
-1395-8116912 REPAIR KIT, CarbREPAIR KIT, Carb
-
-8107492 GASKET SET, CarbGASKET SET, Carb
