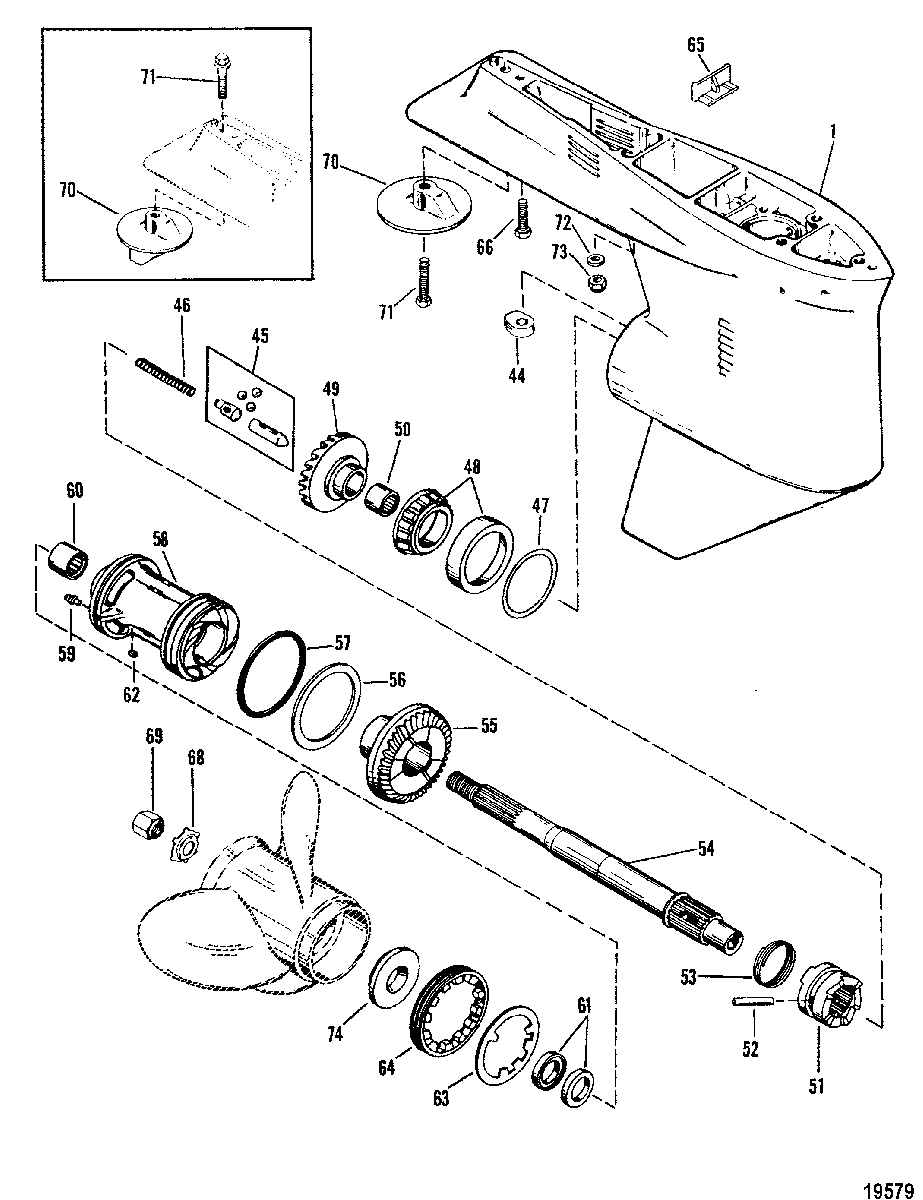

Gear Housing(Propshaft)(XR4/Magnum II) для Mercury - XR-4 0C239553 THRU 0D081999
-
№АртикулНазвание
-
-1674-814247T3 GEAR HOUSING BLACK
COMPLETEGEAR HOUSING BLACK
COMPLETE -
-1674-814247T3 GEAR HOUSING GRAY
COMPLETEGEAR HOUSING GRAY
COMPLETE -
-1674-814247T3 GEAR HOUSING BLACK
COMPLETEGEAR HOUSING BLACK
COMPLETE -
-1674-814247T3 GEAR HOUSING GRAY
COMPLETEGEAR HOUSING GRAY
COMPLETE -
11674-814247T8 GEAR HOUSING (BLACK)
BASICGEAR HOUSING (BLACK)
BASIC -
11674-814247T9 GEAR HOUSING (GRAY)
BASICGEAR HOUSING (GRAY)
BASIC -
11674-814247T1 GEAR HOUSING, Basic BlackGEAR HOUSING, Basic Black
-
11674-814247T1 GEAR HOUSING , Basic GrayGEAR HOUSING , Basic Gray
-
44760394 SHIFT CAMSHIFT CAM
-
45850315A1 CAM FOLLOWER ASSEMBLYCAM FOLLOWER ASSEMBLY
-
4624-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
4715-8M0063266 SHIM SETSHIM SET
-
4831-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
4943-16279A2 FORWARD GEARFORWARD GEAR
-
5031-30895T ROLLER BEARINGROLLER BEARING
-
5152-822539T CLUTCHCLUTCH
-
5217-8M0100263 PIN, CrossPIN, Cross
-
5324-30893 SPRINGSPRING
-
5444-12238T PROPELLER SHAFTPROPELLER SHAFT
-
55NSS NOT SOLD SEPARATE, Reverse Gear (Part of 43-16279A2)NOT SOLD SEPARATE, Reverse Gear (Part of 43-16279A2)
-
5612-76358 THRUST WASHER, BEARING CARRIERTHRUST WASHER, BEARING CARRIER
-
5725-29976 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
5841529T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
5922-98727 FITTING, GreaseFITTING, Grease
-
6031-30956T ROLLER BEARING, BEARING CARRIERROLLER BEARING, BEARING CARRIER
-
6126-76868 SEALSEAL
-
6228-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
6314-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
6452699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
658M0039169 FILLER BLOCKFILLER BLOCK
-
6610-30206 SCREW, (.375-16 x 1.00) (SOCKET HEAD)SCREW, (.375-16 x 1.00) (SOCKET HEAD)
-
6610-65210 SCREW, (.375-16 x 1.00) (HEX HEAD)SCREW, (.375-16 x 1.00) (HEX HEAD)
-
6814-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
6911-52707Q1 NUT, PropellerNUT, Propeller
-
7097-15300 TRIM TABTRIM TAB
-
7110-15797 SCREW, ANODIC PLATESCREW, ANODIC PLATE
-
7097-31640Q4 TRIM TAB ASSEMBLYTRIM TAB ASSEMBLY
-
7110-66024 SCREW, (.437-14 x 1.75)SCREW, (.437-14 x 1.75)
-
7212-45176 WASHER, (.453 x .812 x .105), DRIVE SHAFT HOUSING STUDSWASHER, (.453 x .812 x .105), DRIVE SHAFT HOUSING STUDS
-
7311-34933 NUT, (.437-20), DRIVE SHAFT HOUSING STUDSNUT, (.437-20), DRIVE SHAFT HOUSING STUDS
-
7413191Q01 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
-26-89238A2 SEAL KITSEAL KIT
-
-27-815791A92 GASKET SET
(135/150)GASKET SET
(135/150) -
-27-815791A92 GASKET SET
(XR4/Magnum II/175)GASKET SET
(XR4/Magnum II/175) -
-27-815791A92 GASKET SET
(200)GASKET SET
(200)
