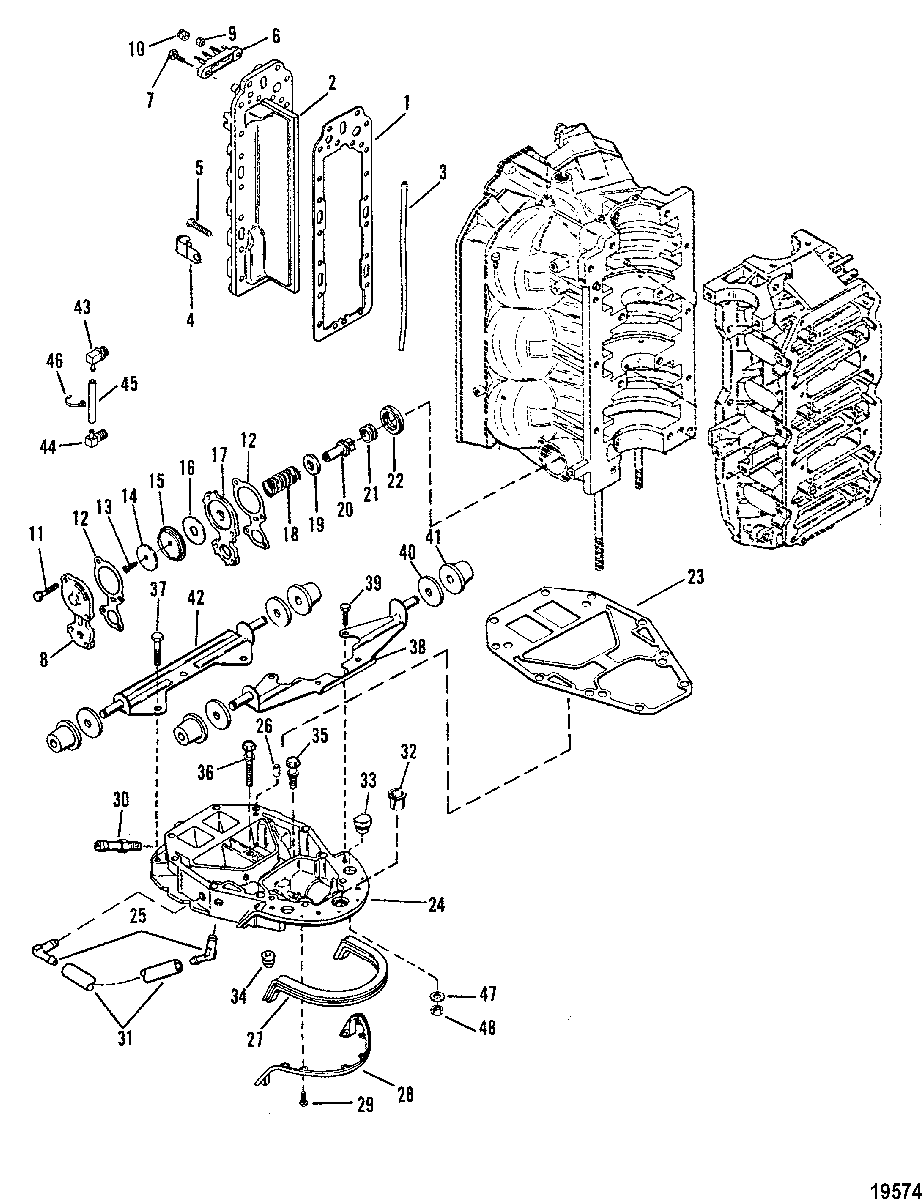

Exhaust Manifold and Exhaust Plate для Mercury - XR-4 0C239553 THRU 0D081999
-
№АртикулНазвание
-
127-190503 GASKET, DIVIDER PLATEGASKET, DIVIDER PLATE
-
219036T1 DIVIDER PLATEDIVIDER PLATE
-
326-814754 SEAL, DIVIDER PLATESEAL, DIVIDER PLATE
-
454-814634 CLAMPCLAMP
-
510-31984 SCREW, (.312-18 x 1.375), DIVIDER PLATESCREW, (.312-18 x 1.375), DIVIDER PLATE
-
510-53167T SCREW, (.312-18 x .880), DIVIDER PLATESCREW, (.312-18 x .880), DIVIDER PLATE
-
686-194373 TERMINAL BLOCK (3 TERMINALS)TERMINAL BLOCK (3 TERMINALS)
-
710-90192 SCREW, (.250-20 x .750), TERMINAL BLOCKSCREW, (.250-20 x .750), TERMINAL BLOCK
-
88M0039767 COVER, RELIEF VALVECOVER, RELIEF VALVE
-
911-45076 NUT, (#10-32), TERMINAL BLOCKNUT, (#10-32), TERMINAL BLOCK
-
1011-813938 CAPNUT, (#10-32)CAPNUT, (#10-32)
-
1110-74824 SCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCKSCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCK
-
1227-78690002 GASKET, RELIEF VALVE PLATEGASKET, RELIEF VALVE PLATE
-
1310-69570 SCREW, (#10-16 x .750), DIAPHRAGM TO PLATESCREW, (#10-16 x .750), DIAPHRAGM TO PLATE
-
1412-76451 WASHER, DIAPHRAGM SCREWWASHER, DIAPHRAGM SCREW
-
15144791 DIAPHRAGMDIAPHRAGM
-
1616496 WATER DEFLECTORWATER DEFLECTOR
-
1716497A1 PLATE, RELIEF VALVEPLATE, RELIEF VALVE
-
1824-64878 SPRING, COMPRESSION POPPET VALVESPRING, COMPRESSION POPPET VALVE
-
1912-85303 WASHER, POPPET SPRINGWASHER, POPPET SPRING
-
2014480 POPPET, VALVEPOPPET, VALVE
-
2125-64872 GROMMET, POPPET VALVEGROMMET, POPPET VALVE
-
2265848 CARRIER, POPPET VALVECARRIER, POPPET VALVE
-
2327-991764 GASKET, EXHAUST PLATEGASKET, EXHAUST PLATE
-
2418260A3 EXHAUST PLATE (W/STBD. SIDE FITTINGS)EXHAUST PLATE (W/STBD. SIDE FITTINGS)
-
2418260T2 EXHAUST PATE (W/O FITTINGS)EXHAUST PATE (W/O FITTINGS)
-
2522-687271 FITTING, (.250-18 Brass), EXHAUST PLATE (STARBOARD)FITTING, (.250-18 Brass), EXHAUST PLATE (STARBOARD)
-
2617-43044 PIN, DowelPIN, Dowel
-
278M0043164 SEAL, EXHAUST PLATESEAL, EXHAUST PLATE
-
28680101 BRACKET, SEAL RETAININGBRACKET, SEAL RETAINING
-
2910-878608 SCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATESCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATE
-
3022-89772 CONNECTOR, (.125-27) (STRAIGHT)CONNECTOR, (.125-27) (STRAIGHT)
-
3132-77653101 HOSE, (24.500 Inches Bulk) (STARBOARD FITTINGS)HOSE, (24.500 Inches Bulk) (STARBOARD FITTINGS)
-
3223-27132 BUSHING, EXHAUST PLATEBUSHING, EXHAUST PLATE
-
3325-19564001 GROMMETGROMMET
-
3425-12602002 GROMMET, EXHAUST PLATEGROMMET, EXHAUST PLATE
-
3510-66727 SCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHINGSCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHING
-
3610-68783 SCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHINGSCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHING
-
3710-898833 SCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHINGSCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHING
-
38812905T BRACKET ASSEMBLY, FRONTBRACKET ASSEMBLY, FRONT
-
3910-90285 SCREW, (.312-18 x .625), FRONT BRACKETSCREW, (.312-18 x .625), FRONT BRACKET
-
4012-187031 WASHERWASHER
-
4125-18778001 GROMMETGROMMET
-
4218578T09 BRACKET ASSEMBLY, REARBRACKET ASSEMBLY, REAR
-
4322-8144301 FITTING, (.500-14)FITTING, (.500-14)
-
4422-920071 FITTING, (.250-18) (90 DEG.)FITTING, (.250-18) (90 DEG.)
-
4532-8M0108355 FUEL LINE, (57.00 Inches Bulk)FUEL LINE, (57.00 Inches Bulk)
-
4654-816311T CABLE TIE, (8.00 Inches)CABLE TIE, (8.00 Inches)
-
4712-20553 WASHER, POWERHEAD STUDWASHER, POWERHEAD STUD
-
4811-69254 NUT, POWERHEAD STUDNUT, POWERHEAD STUD
-
-27-815791A92 GASKET SET
(135/150)GASKET SET
(135/150) -
-27-815791A92 GASKET SET
(XR4/Magnum II/175)GASKET SET
(XR4/Magnum II/175) -
-27-815791A92 GASKET SET
(200)GASKET SET
(200)
