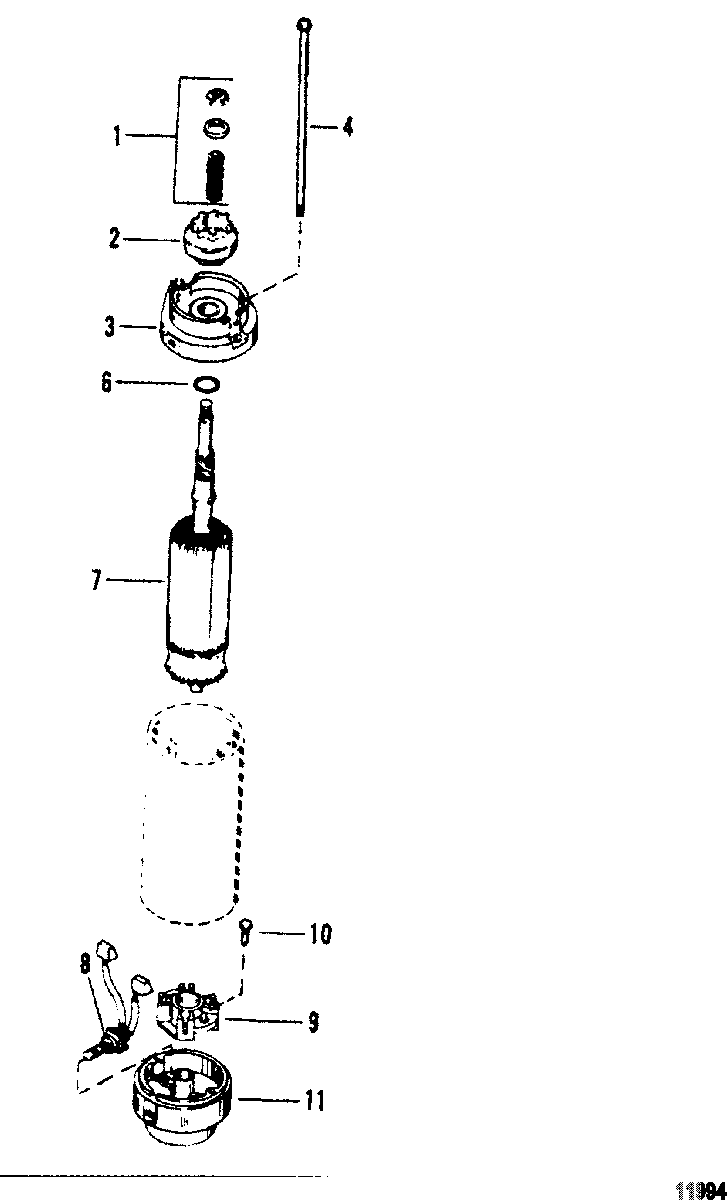

STARTER MOTOR ASSEMBLY для Mercury - V-200XRI (EFI) 0C291520 THRU 0D081999
-
№АртикулНазвание
-
-50-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190645 DRIVE KITDRIVE KIT
-
213310T1 PINION ASSEMBLY, DrivePINION ASSEMBLY, Drive
-
375660 PLATE, DRIVE ENDPLATE, DRIVE END
-
410-74968 BOLT, THRUBOLT, THRU
-
6N.S.S. Not Sold Seperate, Washer
(AMERICAN BOSCH #WA31 22)Not Sold Seperate, Washer
(AMERICAN BOSCH #WA31 22) -
779216 ARMATUREARMATURE
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDER, BRUSHHOLDER, BRUSH
-
10N.S.S. Not Sold Seperate, Screw
(AMER. BOSCH #02441-22-SC-30SM)Not Sold Seperate, Screw
(AMER. BOSCH #02441-22-SC-30SM) -
1115386001 END CAP, COMMUTATOREND CAP, COMMUTATOR
