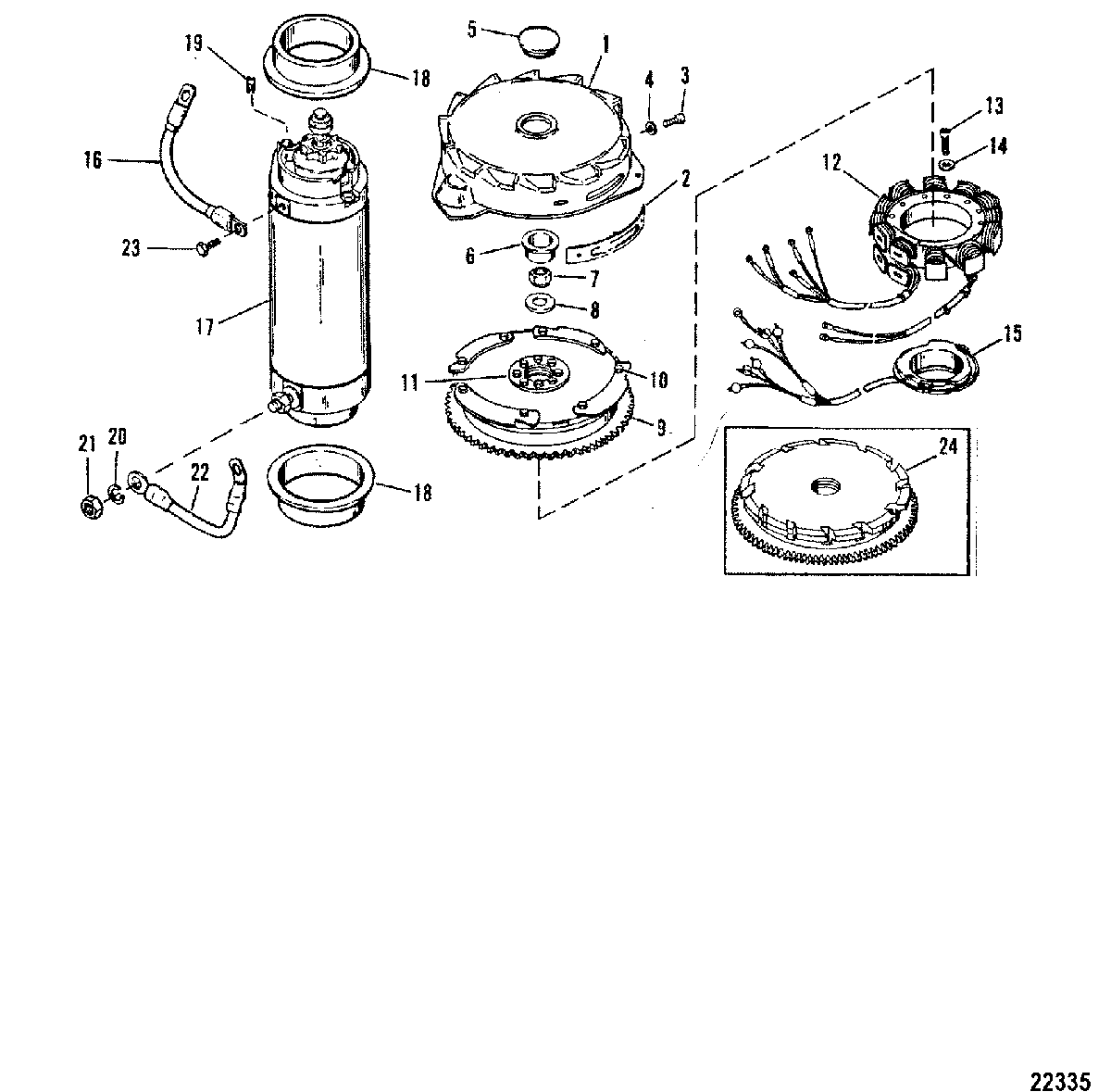

FLYWHEEL/STARTER MOTOR для Mercury - V-200XRI (EFI) 0C291520 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    18896A1 COVER KIT, FLYWHEEL
    COVER KIT, FLYWHEEL
  • 2
    79022 MARKER, TIMING
    MARKER, TIMING
  • 3
    10-37572 SCREW, (.190-32 x .380), TIMING MARKER
    SCREW, (.190-32 x .380), TIMING MARKER
  • 4
    12-72761 WASHER, (.203 x .562 x .060), TIMING MARKER SCREW
    WASHER, (.203 x .562 x .060), TIMING MARKER SCREW
  • 5
    19-89219001 PLUG, FLYWHEEL COVER
    PLUG, FLYWHEEL COVER
  • 6
    19-45907 PLUG, Yellow, FLYWHEEL
    PLUG, Yellow, FLYWHEEL
  • 7
    11-52901 NUT, (.625-18), FLYWHEEL
    NUT, (.625-18), FLYWHEEL
  • 8
    12-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL
    WASHER, (.641 x 1.250 x .190), FLYWHEEL
  • 9
    271-859238T16 FLYWHEEL (OLD DESIGN)
    FLYWHEEL (OLD DESIGN)
  • 10
    10-32417 SCREW, (.250-28 x .625), FLYWHEEL PLATE (OLD DESIGN)
    SCREW, (.250-28 x .625), FLYWHEEL PLATE (OLD DESIGN)
  • 11
    10-68997 SCREW, (.312-24 x .750), FLYWHEEL HUB (OLD DESIGN)
    SCREW, (.312-24 x .750), FLYWHEEL HUB (OLD DESIGN)
  • 12
    398-9610A5 STATOR
    STATOR
  • 13
    10-90045 SCREW, (#10-32 x 1.375), STATOR
    SCREW, (#10-32 x 1.375), STATOR
  • 14
    13-26996 LOCKWASHER, (#10), STATOR SCREW
    LOCKWASHER, (#10), STATOR SCREW
  • 15
    96455A9 TRIGGER PLATE ASSEMBLY
    TRIGGER PLATE ASSEMBLY
  • 16
    84-93388A1 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 17
    50-893893 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 18
    23-8M0034918 COLLAR, STARTER MOTOR
    COLLAR, STARTER MOTOR
  • 19
    8M0043376 STOP, RUBBER - STARTER MOTOR
    STOP, RUBBER - STARTER MOTOR
  • 20
    13-26992 LOCKWASHER, (.250), STARTER MOTOR TERMINAL
    LOCKWASHER, (.250), STARTER MOTOR TERMINAL
  • 21
    11-20890 NUT, (.250-20), STARTER MOTOR TERMINAL
    NUT, (.250-20), STARTER MOTOR TERMINAL
  • 22
    84-93388A14 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 23
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
  • 24
    271-859238T16 FLYWHEEL (NEW DESIGN)
    FLYWHEEL (NEW DESIGN)
