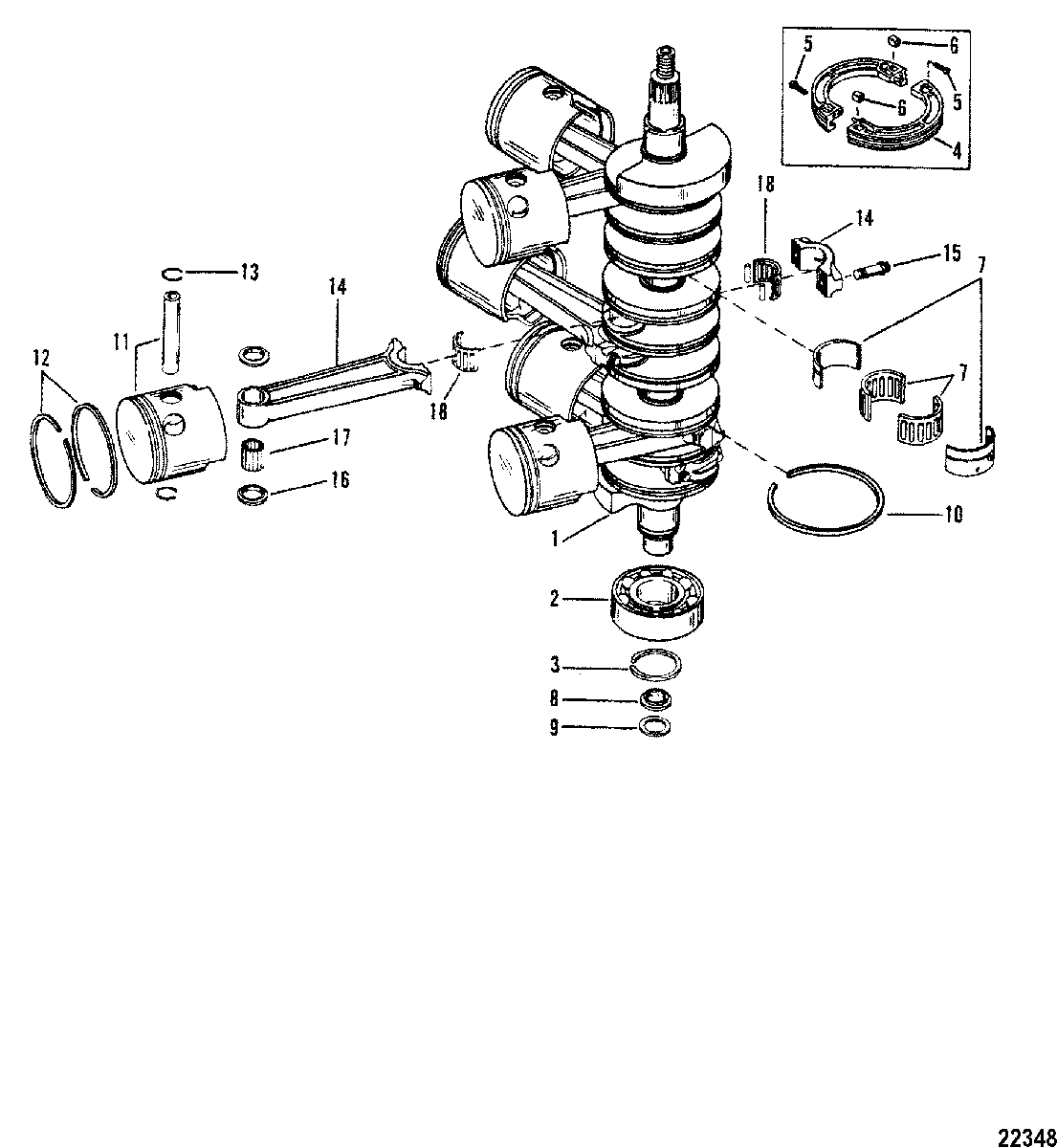

CRANKSHAFT(Conn. Rod Forging # is 644-818141) для Mercury - V-200XRI (EFI) 0C291520 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    455-9536T4 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-67923T BEARING, Ball (LOWER)
    BEARING, Ball (LOWER)
  • 3
    53-67446 RING
    RING
  • 4
    43-14513A09 GEAR KIT
    GEAR KIT
  • 5
    10-813073 SCREW, (#6-32 x .620)
    SCREW, (#6-32 x .620)
  • 6
    11-813134 NUT, (#6-32 Special)
    NUT, (#6-32 Special)
  • 7
    31-16756A6 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 8
    54196A6 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 9
    65800 PACKING
    PACKING
  • 10
    39-67377T RING (.124 THICK)
    RING (.124 THICK)
  • 11
    785-9738T9 PISTON (STARBOARD - STANDARD)
    PISTON (STARBOARD - STANDARD)
  • 11
    785-9738T10 PISTON (STARBOARD - .015 O.S.)
    PISTON (STARBOARD - .015 O.S.)
  • 11
    785-9737T9 PISTON (PORT - STANDARD)
    PISTON (PORT - STANDARD)
  • 11
    785-9737A10 PISTON (PORT - .015 O.S.)
    PISTON (PORT - .015 O.S.)
  • 12
    39-815515A12 PISTON RING (STANDARD)
    PISTON RING (STANDARD)
  • 12
    39-815268A4 PISTON RING (.015 O.S.)
    PISTON RING (.015 O.S.)
  • 13
    53-857196 RING, Lock, PISTON
    RING, Lock, PISTON
  • 14
    644-818141A13 CONNECTING ROD KIT
    CONNECTING ROD KIT
  • 15
    10-763491 SCREW, (.312-24 x .875), CONNECTING ROD
    SCREW, (.312-24 x .875), CONNECTING ROD
  • 16
    12-8M0012298 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • 17
    29-822553 BEARING, Needle, PISTON END
    BEARING, Needle, PISTON END
  • 18
    31-8M0045428 BEARING KIT
    BEARING KIT
  • -
    27-815791A92 GASKET SET
    (200)
    GASKET SET
    (200)
  • -
    27-815791A92 GASKET SET
    (175)
    GASKET SET
    (175)
