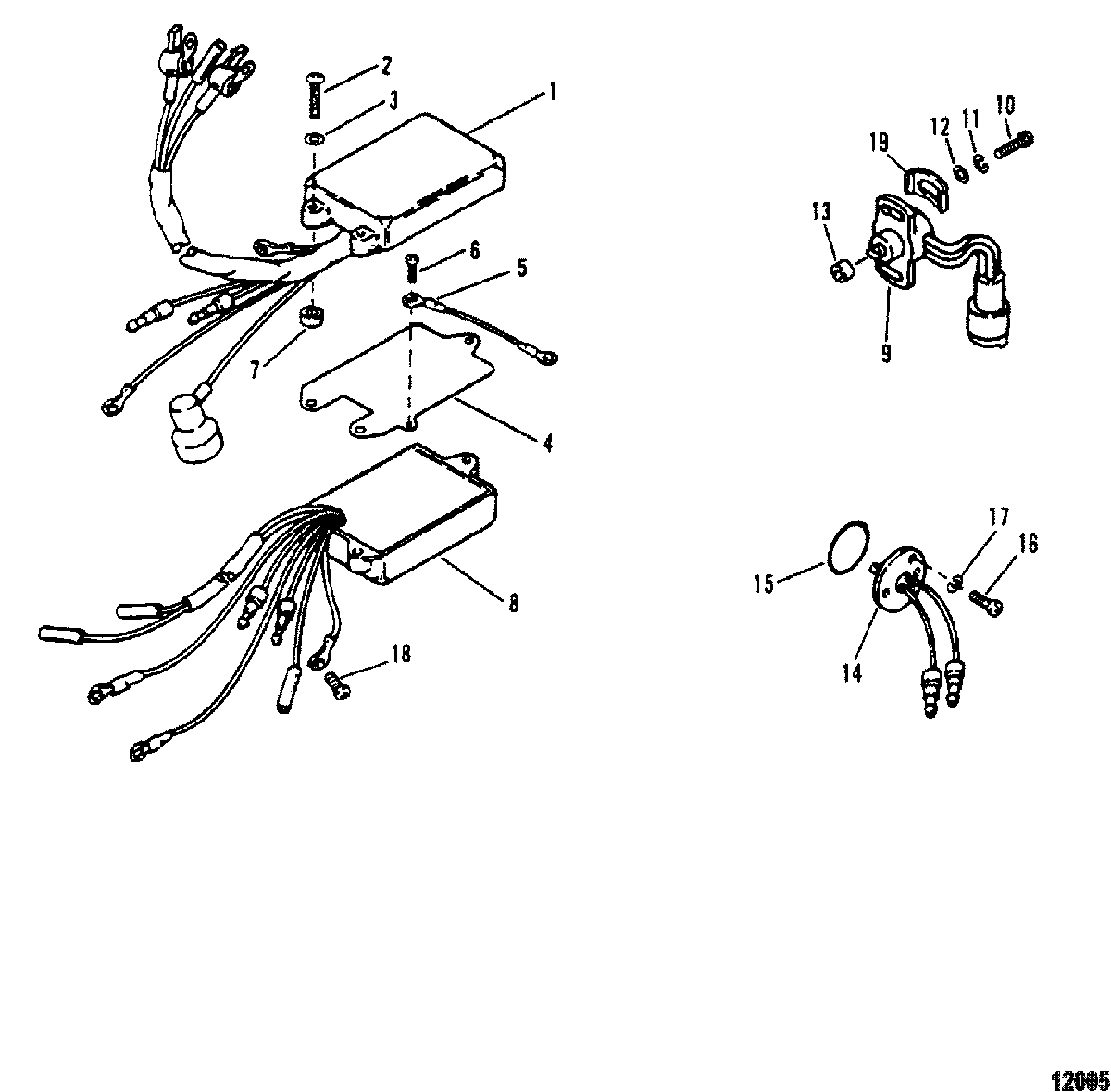

DETONATION CONTROLLER/TEMPERATURE SENSOR для Mercury - V-200XRI (EFI) 0C291520 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    826800A8 DETONATION CONTROLLER ASSEMBLY (200)
    DETONATION CONTROLLER ASSEMBLY (200)
  • 2
    10-88447 SCREW, (.190-32 x 1.62), DETONATION CONTROLLER (200)
    SCREW, (.190-32 x 1.62), DETONATION CONTROLLER (200)
  • 3
    12-38833 WASHER, DETONATION CONTROLLER SCREW (200)
    WASHER, DETONATION CONTROLLER SCREW (200)
  • 4
    13381 PLATE (200)
    PLATE (200)
  • 5
    84-88807A10 CABLE ASSEMBLY (200)
    CABLE ASSEMBLY (200)
  • 6
    10-62568 SCREW, (#10-16 x .375), CABLE TO PLATE (200)
    SCREW, (#10-16 x .375), CABLE TO PLATE (200)
  • 7
    23-94304 SPACER (200)
    SPACER (200)
  • 8
    41470A25 OIL INJECTION WARNING MODULE ASSEMBLY
    OIL INJECTION WARNING MODULE ASSEMBLY
  • 9
    14851T03 INDICATOR, THROTTLE POSITION
    INDICATOR, THROTTLE POSITION
  • 10
    10-15150 SCREW, INDICATOR
    SCREW, INDICATOR
  • 11
    13-26995 LOCKWASHER, (#8), INDICATOR SCREW
    LOCKWASHER, (#8), INDICATOR SCREW
  • 12
    12-30164 WASHER, INDICATOR SCREW
    WASHER, INDICATOR SCREW
  • 13
    23-15885 SLEEVE
    SLEEVE
  • 14
    13221T01 TEMPERATURE SENSOR ASSEMBLY
    TEMPERATURE SENSOR ASSEMBLY
  • 15
    25-45711 O-RING, (.612 x .103)
    O-RING, (.612 x .103)
  • 16
    10-57583T SCREW, (#8-32 x .375), TEMPERATURE SENSOR
    SCREW, (#8-32 x .375), TEMPERATURE SENSOR
  • 17
    13-26995 LOCKWASHER, (#8), TEMPERATURE SENSOR SCREW
    LOCKWASHER, (#8), TEMPERATURE SENSOR SCREW
  • 18
    10-42813 SCREW
    SCREW
  • 19
    813501 PLATE
    PLATE
  • -
    27-815791A92 GASKET SET
    (200)
    GASKET SET
    (200)
  • -
    27-815791A92 GASKET SET
    (175)
    GASKET SET
    (175)
