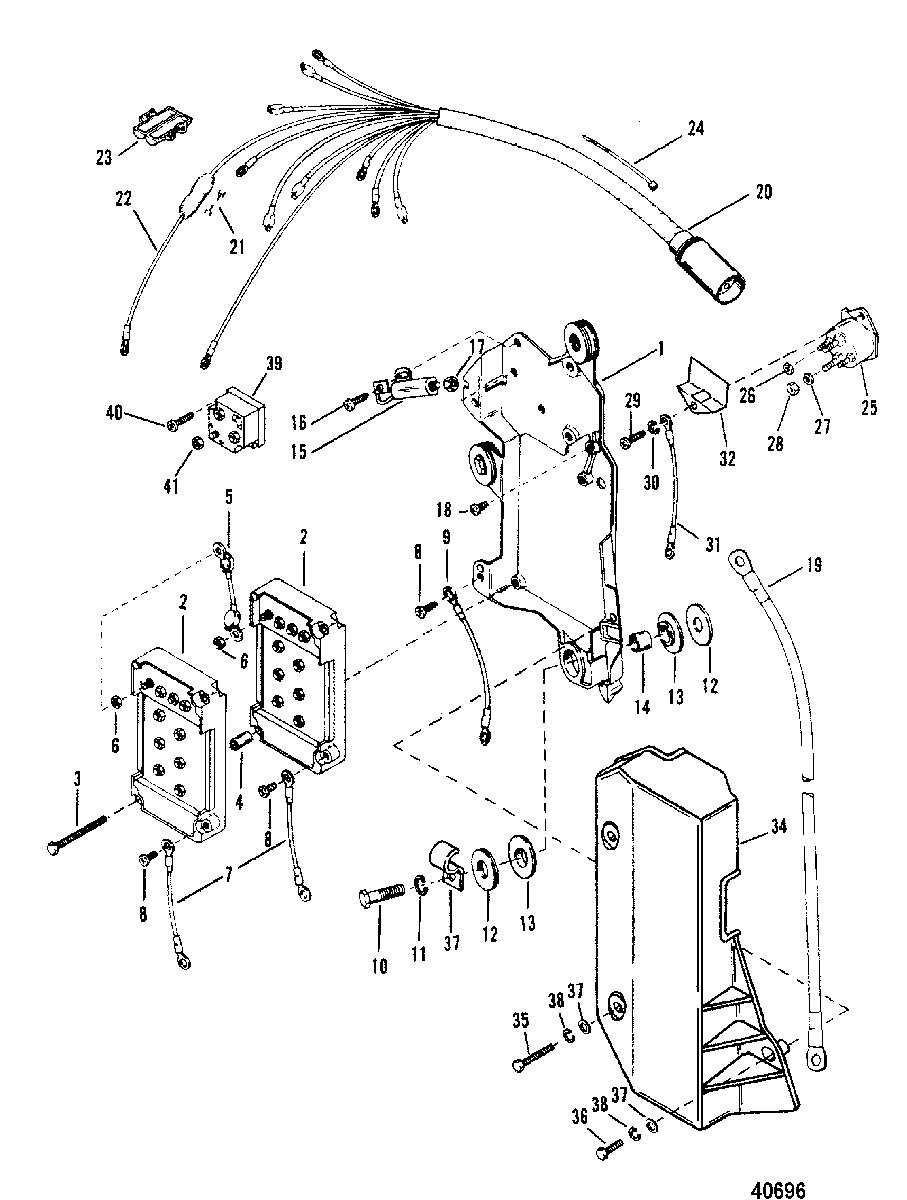

WIRING HARNESS/STARTER SOLENOID для Mercury - V-200 0C100861 THRU 0C291519

  • №
    Артикул
    Название
  • 1
    434292 IGNITION PLATE
    IGNITION PLATE
  • 2
    332-7778A12 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 3
    10-13669 SCREW, (#12-24 x 2.00)
    SCREW, (#12-24 x 2.00)
  • 4
    23-94453 BUSHING
    BUSHING
  • 5
    84-62310A2 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 6
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 7
    84-60871A10 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 8
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 9
    84-65999A3 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 10
    10-60411 SCREW, (1.25)
    SCREW, (1.25)
  • 11
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 12
    12-36042 WASHER
    WASHER
  • 13
    12-67264 WASHER, (Rubber)
    WASHER, (Rubber)
  • 14
    23-67268 BUSHING
    BUSHING
  • 15
    87-33386A3 SWITCH ASSEMLBY
    SWITCH ASSEMLBY
  • 16
    10-38055 SCREW, (.190-32 x .620)
    SCREW, (.190-32 x .620)
  • 17
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 18
    10-87926 SCREW, (#10-32 x .500)
    SCREW, (#10-32 x .500)
  • 19
    84-88439A3 CABLE ASSEMBLY, Positive - Battery
    CABLE ASSEMBLY, Positive - Battery
  • 19
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 20
    84-96220A12 HARNESS ASSEMBLY
    (USE WITH 18736A15 VOLTAKE REGULATOR
    HARNESS ASSEMBLY
    (USE WITH 18736A15 VOLTAKE REGULATOR
  • 20
    84-96220A4 HARNESS ASSEMBLY
    (USE WITH 62351A1 RECTIFIER)
    HARNESS ASSEMBLY
    (USE WITH 62351A1 RECTIFIER)
  • 21
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 22
    84-95084A2 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 23
    134731 HOLDER, Fuse
    HOLDER, Fuse
  • 24
    54-816311T TIE STRAP
    TIE STRAP
  • 25
    89-853654A1 SOLENOID, Starter
    SOLENOID, Starter
  • 26
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 27
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 28
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 29
    10-31716 SCREW, (.250-20 x .620)
    SCREW, (.250-20 x .620)
  • 30
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 31
    84-65999A2 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 32
    85-78866 INSULATOR (OLD DESIGN)
    INSULATOR (OLD DESIGN)
  • 33
    54-47483 J CLIP
    J CLIP
  • 34
    814422T COVER
    SN# 0C239553 & Up
    COVER
    SN# 0C239553 & Up
  • 35
    10-88447 SCREW, (.190-32 x 1.62)
    SN# 0C239553 & Up
    SCREW, (.190-32 x 1.62)
    SN# 0C239553 & Up
  • 36
    10-690201 SCREW, (#10-32 x .875)
    SN# 0C239553 & Up
    SCREW, (#10-32 x .875)
    SN# 0C239553 & Up
  • 37
    12-89302 WASHER, (.203 x .406 x .040)
    SN# 0C239553 & Up
    WASHER, (.203 x .406 x .040)
    SN# 0C239553 & Up
  • 38
    13-26996 LOCKWASHER, (#10) Stainless Steel
    SN# 0C239553 & Up
    LOCKWASHER, (#10) Stainless Steel
    SN# 0C239553 & Up
  • 39
    8M0058226 RECTIFIER
    RECTIFIER
  • 40
    10-38055 SCREW, (.190-32 x .620)
    SCREW, (.190-32 x .620)
  • 41
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
