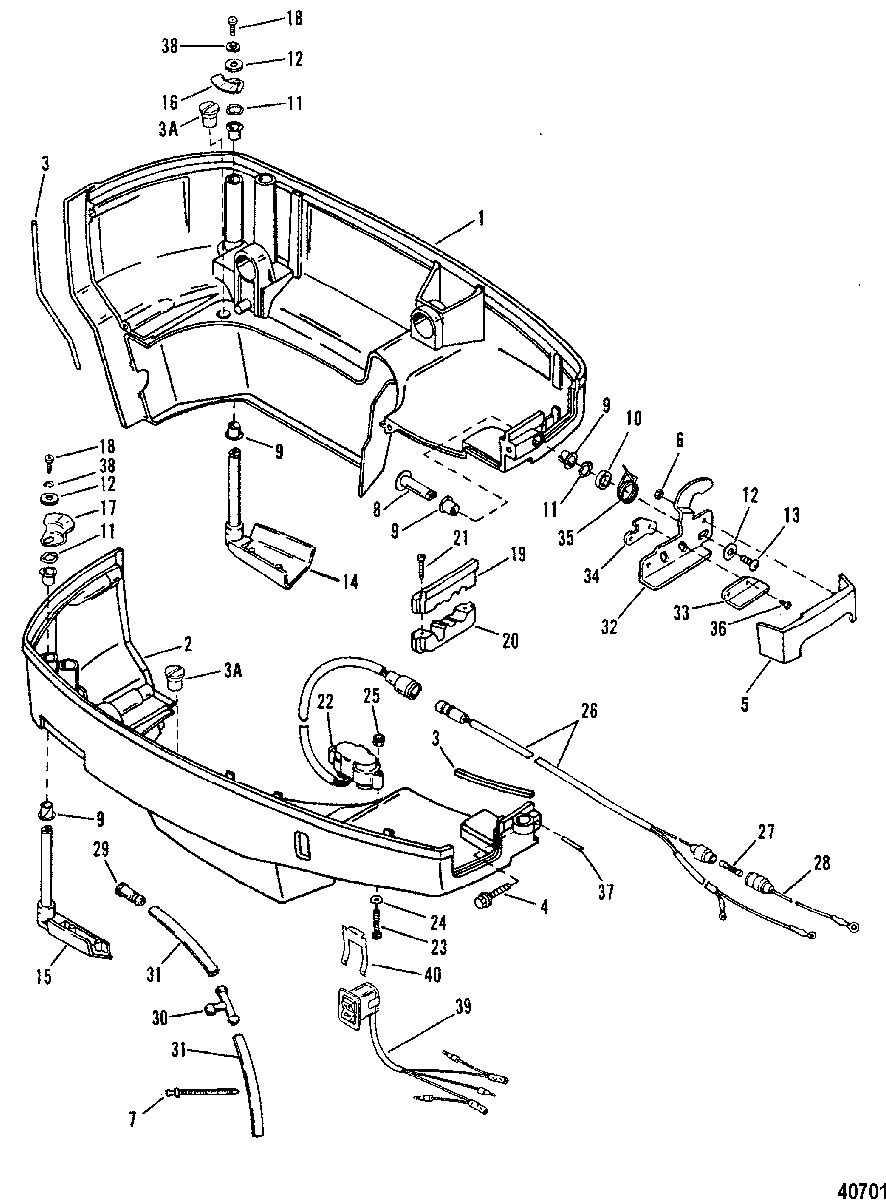

BOTTOM COWL для Mercury - V-200 0C100861 THRU 0C291519

  • №
    Артикул
    Название
  • 1
    2197-9744A16 BOTTOM COWL ASSEMBLY
    (PORT) (BLACK) SN# 0C239552 & Below
    BOTTOM COWL ASSEMBLY
    (PORT) (BLACK) SN# 0C239552 & Below
  • 1
    2197-9744A16 BOTTOM COWL ASSEMBLY
    (PORT) (GRAY) SN# 0C239552 & Below
    BOTTOM COWL ASSEMBLY
    (PORT) (GRAY) SN# 0C239552 & Below
  • 1
    2197-9744A16 BOTTOM COWL
    (PORT) (BLACK) SN# 0C239553 & Up
    BOTTOM COWL
    (PORT) (BLACK) SN# 0C239553 & Up
  • 1
    2197-9744A16 BOTTOM COWL
    (PORT) (GRAY) SN# 0C239553 & Up
    BOTTOM COWL
    (PORT) (GRAY) SN# 0C239553 & Up
  • 2
    2197-9745A1 BOTTOM COWL ASSEMBLY
    (STBD) (BLACK) SN# 0C239552 & Below
    BOTTOM COWL ASSEMBLY
    (STBD) (BLACK) SN# 0C239552 & Below
  • 2
    2197-9745A2 BOTTOM COWL ASSEMBLY
    (STBD) (GRAY) SN# 0C239552 & Below
    BOTTOM COWL ASSEMBLY
    (STBD) (GRAY) SN# 0C239552 & Below
  • 2
    2197-9745A5 BOTTOM COWL
    (STBD) (BLACK) SN# 0C239553 & Up
    BOTTOM COWL
    (STBD) (BLACK) SN# 0C239553 & Up
  • 2
    2197-9745A6 BOTTOM COWL
    (STBD) (GRAY) SN# 0C239553 & Up
    BOTTOM COWL
    (STBD) (GRAY) SN# 0C239553 & Up
  • 3
    18701A1 SEAL KIT, BOTTOM COWLS
    SEAL KIT, BOTTOM COWLS
  • 3A
    21-817519A1 CHECK VALVE
    CHECK VALVE
  • 4
    10-18699 SCREW, (.250-20 x 1.320), COWL
    (STARBOARD)
    SCREW, (.250-20 x 1.320), COWL
    (STARBOARD)
  • 5
    18872A1 COVER ASSEMBLY
    (BLACK)
    COVER ASSEMBLY
    (BLACK)
  • 5
    18872A1 COVER ASSEMBLY
    (GRAY)
    COVER ASSEMBLY
    (GRAY)
  • 6
    11-8136921 LOCKNUT
    LOCKNUT
  • 7
    54-816311T TIE STRAP
    TIE STRAP
  • 8
    18727 ROD
    ROD
  • 9
    23-65830 NYLINER
    NYLINER
  • 10
    23-19666 BUSHING
    BUSHING
  • 11
    13-99611 WAVE WASHER
    WAVE WASHER
  • 12
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 13
    10-18192 SCREW, (.250-20 x .620)
    SCREW, (.250-20 x .620)
  • 14
    19648A2 HANDLE ASSEMBLY (PORT)
    (BLACK)
    HANDLE ASSEMBLY (PORT)
    (BLACK)
  • 14
    19648A2 HANDLE ASSEMBLY (PORT)
    (GRAY)
    HANDLE ASSEMBLY (PORT)
    (GRAY)
  • 15
    19647A3 HANDLE ASSEMBLY (STARBOARD)
    (BLACK)
    HANDLE ASSEMBLY (STARBOARD)
    (BLACK)
  • 15
    19647A3 HANDLE ASSEMBLY (STARBOARD)
    (GRAY)
    HANDLE ASSEMBLY (STARBOARD)
    (GRAY)
  • 16
    19370 PAWL (PORT)
    PAWL (PORT)
  • 17
    19369 PAWL (STARBOARD)
    PAWL (STARBOARD)
  • 18
    10-73286 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 19
    54-19749 CLAMP, UPPER
    CLAMP, UPPER
  • 20
    54-197481 CLAMP, LOWER
    CLAMP, LOWER
  • 21
    10-92799 SCREW, (#10-16 x 1.12)
    SCREW, (#10-16 x 1.12)
  • 22
    84-16636A1 HARNESS ASSEMBLY, TRIM
    SN# 0C239552 & Below
    HARNESS ASSEMBLY, TRIM
    SN# 0C239552 & Below
  • 23
    10-72202 SCREW, (#10-32 x 1.25)
    SN# 0C239552 & Below
    SCREW, (#10-32 x 1.25)
    SN# 0C239552 & Below
  • 24
    12-56681 WASHER, (.203 x .500 x .032)
    SN# 0C239552 & Below
    WASHER, (.203 x .500 x .032)
    SN# 0C239552 & Below
  • 25
    11-826709106 NUT, (#10-32)
    SN# 0C239552 & Below
    NUT, (#10-32)
    SN# 0C239552 & Below
  • 26
    84-16639A1 HARNESS ASSEMBLY
    SN# 0C239552 & Below
    HARNESS ASSEMBLY
    SN# 0C239552 & Below
  • 27
    88-79091 FUSE, 20 Ampere
    SN# 0C239552 & Below
    FUSE, 20 Ampere
    SN# 0C239552 & Below
  • 28
    84-95084A2 CABLE ASSEMBLY, FUSE
    SN# 0C239552 & Below
    CABLE ASSEMBLY, FUSE
    SN# 0C239552 & Below
  • 29
    22-813613 FITTING, TELLTALE
    FITTING, TELLTALE
  • 30
    22-90824001 TEE, TELLTALE
    TEE, TELLTALE
  • 31
    32-8M0108355 LINE, (57.00 Inches Bulk), TELLTALE
    LINE, (57.00 Inches Bulk), TELLTALE
  • 32
    813076A2 FRONT HANDLE ASSEMBLY
    FRONT HANDLE ASSEMBLY
  • 33
    813076A2 HANDLE LOCK
    HANDLE LOCK
  • 34
    813076A2 HANDLE
    HANDLE
  • 35
    813076A2 SPRING
    SPRING
  • 36
    10-69079 SCREW, (#10-16 x .440)
    SCREW, (#10-16 x .440)
  • 37
    17-815296 PIN, Lock
    PIN, Lock
  • 38
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 39
    87-8M0042301 SWITCH ASSEMBLY
    SN# 0C239553 & Up
    SWITCH ASSEMBLY
    SN# 0C239553 & Up
  • 40
    8M0032848 RETAINER, SWITCH
    SN# 0C239553 & Up
    RETAINER, SWITCH
    SN# 0C239553 & Up
  • -
    813096A1 REAR LATCH KIT
    REAR LATCH KIT
