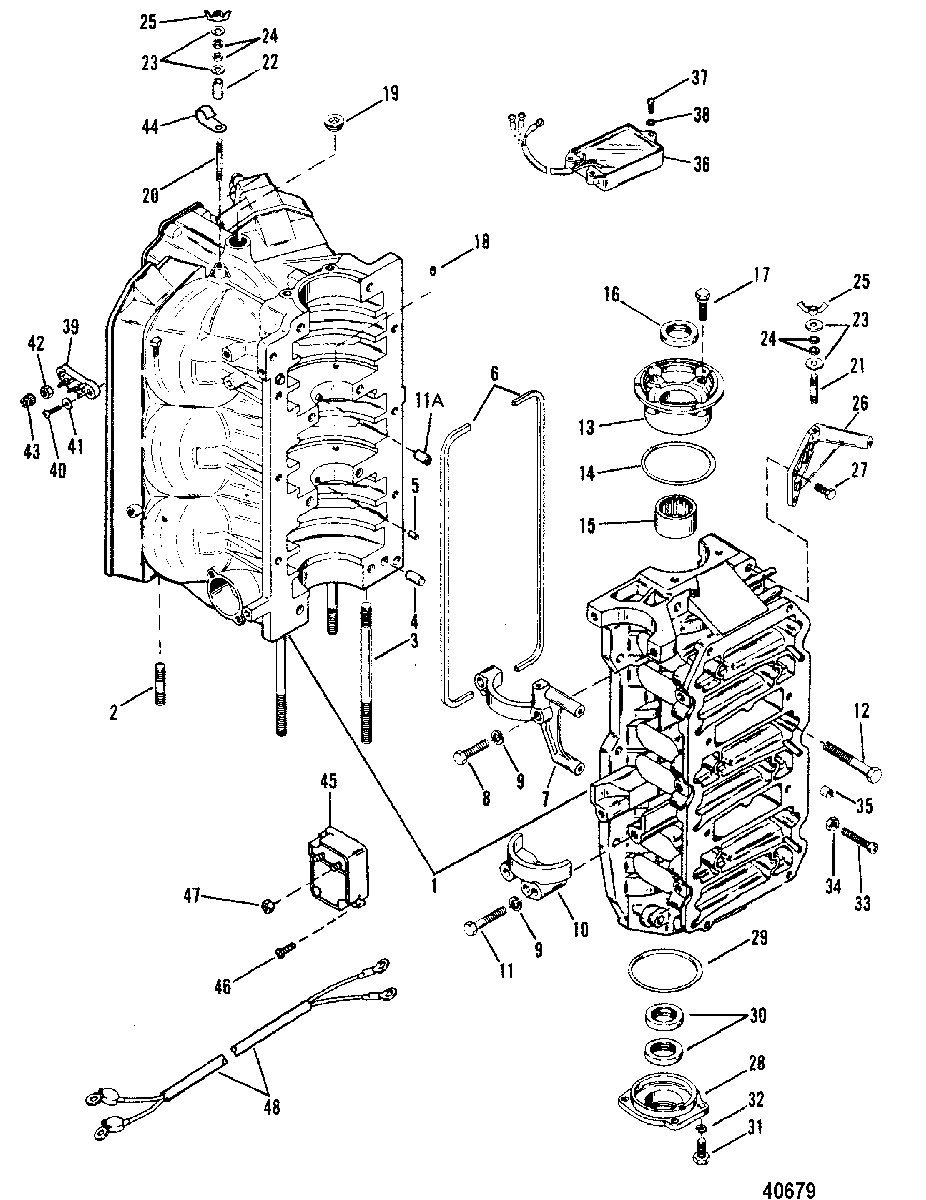

CYLINDER BLOCK AND END CAPS для Mercury - V-200 0C100861 THRU 0C291519
-
№АртикулНазвание
-
1858-8712A59 CYLINDER BLOCKCYLINDER BLOCK
-
216-76175 STUD, POWERHEAD (1-7/8")STUD, POWERHEAD (1-7/8")
-
316-670654 STUD, POWERHEAD
(5-1/2")STUD, POWERHEAD
(5-1/2") -
316-8M0034454 STUD, POWERHEAD
(6-3/4")STUD, POWERHEAD
(6-3/4") -
417-43044 PIN, Dowel, LOCATINGPIN, Dowel, LOCATING
-
517-8M0036405 PIN, CYLINDER BLOCK (BEARING RACE)PIN, CYLINDER BLOCK (BEARING RACE)
-
627-11338 GASKET, SEALINGGASKET, SEALING
-
78M0088723 COVER, STARTER MOTOR (UPPER)COVER, STARTER MOTOR (UPPER)
-
810-73657 SCREW, (.312-18 x 1.50), COVER TO CRANKCASESCREW, (.312-18 x 1.50), COVER TO CRANKCASE
-
913-26993 LOCKWASHER, (.312), STARTER MOTOR COVER SCREWLOCKWASHER, (.312), STARTER MOTOR COVER SCREW
-
1076867 COVER, STARTER MOTOR (LOWER)COVER, STARTER MOTOR (LOWER)
-
1110-815549 SCREW, (.312-18 x 2), COVER TO CRANKCASESCREW, (.312-18 x 2), COVER TO CRANKCASE
-
11A23-99448 BUSHINGBUSHING
-
1210-66717 SCREW, (.375-16 x 3.250), CRANKCASE TO CYLINDER BLOCKSCREW, (.375-16 x 3.250), CRANKCASE TO CYLINDER BLOCK
-
1210-74824 SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCKSCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK
-
131159-9608T1 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
1425-54029 O-RING, (2.800 x .103), END CAPO-RING, (2.800 x .103), END CAP
-
1531-93496T BEARING, Roller, END CAPBEARING, Roller, END CAP
-
1626-41953 SEAL, END CAPSEAL, END CAP
-
1710-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00), UPPER END CAP TO CYLINDER BLOCKSCREW AND LOCKWASHER, (.312-18 x 1.00), UPPER END CAP TO CYLINDER BLOCK
-
1810-24220 SCREW, (.190-24 x .190), SET - CYLINDER BLOCK
(OLD DESIGN)SCREW, (.190-24 x .190), SET - CYLINDER BLOCK
(OLD DESIGN) -
1922-38407 PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET)
(OLD DESIGN)PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET)
(OLD DESIGN) -
2016-15094 STUD, (.190-32 x 1.870), FLYWHEEL COVER TO CYLINDER BLOCKSTUD, (.190-32 x 1.870), FLYWHEEL COVER TO CYLINDER BLOCK
-
2116-8M0034435 STUD, (#10-32 x 1.00), FLYWHEEL COVER TO BRACKETSTUD, (#10-32 x 1.00), FLYWHEEL COVER TO BRACKET
-
2223-67269 SPACER, FLYWHEEL COVER STUDSPACER, FLYWHEEL COVER STUD
-
2312-49221 WASHER, FLYWHEEL COVER STUDWASHER, FLYWHEEL COVER STUD
-
2412-72761 WASHER, (.203 x .562 x .060) Stainless Steel, FLYWHEEL COVER STUDWASHER, (.203 x .562 x .060) Stainless Steel, FLYWHEEL COVER STUD
-
2511-816874 NUT, FLYWHEEL COVER STUDNUT, FLYWHEEL COVER STUD
-
26422482 BRACKET, FLYWHEEL COVERBRACKET, FLYWHEEL COVER
-
2710-49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASESCREW, (.250-20 x .750), BRACKET TO CRANKCASE
-
281156-7809T1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
2925-62700 O-RING, (3.237 x .103), END CAPO-RING, (3.237 x .103), END CAP
-
3026-41953 SEAL, END CAPSEAL, END CAP
-
3110-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
3213-26992 LOCKWASHER, (.250) Stainless Steel, LOWER END CAP SCREWLOCKWASHER, (.250) Stainless Steel, LOWER END CAP SCREW
-
3310-64022 SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCKSCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK
-
3411-64015 NUT, (.250-20), JAM - ADJUSTING SCREWNUT, (.250-20), JAM - ADJUSTING SCREW
-
3526852 CAP, Nylon, ADJUSTING SCREWCAP, Nylon, ADJUSTING SCREW
-
3693772A2 STABILIZERSTABILIZER
-
3710-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
3812-38833 WASHERWASHER
-
3986-194372 TERMINAL BLOCKTERMINAL BLOCK
-
4010-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
4112-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
4211-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
4311-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
4454-63153 J CLIPJ CLIP
-
4588825A7 VOLTAGE REGUALTORVOLTAGE REGUALTOR
-
4610-48409 SCREW, (#10-16 x .625) Stainless Steel, VOLTAGE REGULATORSCREW, (#10-16 x .625) Stainless Steel, VOLTAGE REGULATOR
-
4711-45076 NUT, (#10-32) Brass, VOLTAGE REGULATORNUT, (#10-32) Brass, VOLTAGE REGULATOR
-
4884-13397A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
-813043T89 POWERHEAD ASSEMBLY, COMPLETEPOWERHEAD ASSEMBLY, COMPLETE
-
-27-89221A88 GASKET SETGASKET SET
