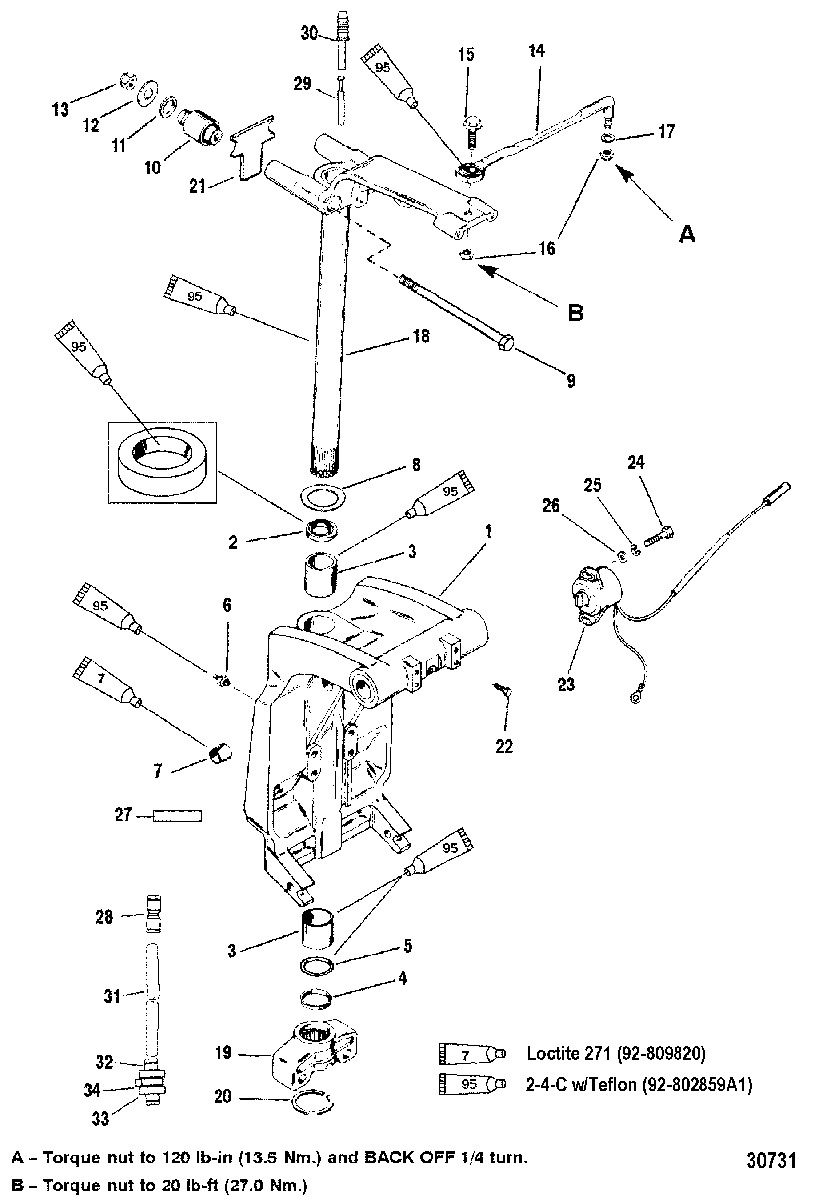

SWIVEL BRACKET AND STEERING ARM для Mercury - V-200 (EFI) 0G960500 THRU 0T408999
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, BlackSWIVEL BRACKET ASSEMBLY, Black
-
226-87735 SEAL, Oil (LOWER)SEAL, Oil (LOWER)
-
323-818764 BUSHINGBUSHING
-
423-816039 SPACERSPACER
-
525-33504 O-RINGO-RING
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
812-816432 THRUST WASHERTHRUST WASHER
-
910-8M0000491 SCREW, (.437-20 x 7.50)SCREW, (.437-20 x 7.50)
-
1077326 MOUNTMOUNT
-
1112-66921 WASHERWASHER
-
1212-78688 WASHERWASHER
-
1311-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1492876A12 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
1510-849838 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1611-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
1712-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
1817-8M0132731 SWIVEL PIN ASSEMBLY, Steering ArmSWIVEL PIN ASSEMBLY, Steering Arm
-
1817-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm - Stainless SteelSWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel
-
19878182T01 YOKE ASSEMBLY, BottomYOKE ASSEMBLY, Bottom
-
19878182T01 YOKE, Bottom - Stainless SteelYOKE, Bottom - Stainless Steel
-
2053-67684 RING, RetainingRING, Retaining
-
218M0000516 BUMPERBUMPER
-
2210-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
238M0098273 SENDER ASSEMBLY, TrimSENDER ASSEMBLY, Trim
-
2410-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
-
2513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
27NSS NOT SOLD SEPARATE, DECAL, Serial OverlaminateNOT SOLD SEPARATE, DECAL, Serial Overlaminate
-
2822-859747 COUPLERCOUPLER
-
2922-859732 PLUGPLUG
-
3022-859731 FITTING, AdapterFITTING, Adapter
-
3132-85944975 TUBING, (72.00 Inches Bulk) (Cut to 52 IN.)TUBING, (72.00 Inches Bulk) (Cut to 52 IN.)
-
3222-859448T FITTINGFITTING
-
3325-821555001 GROMMETGROMMET
-
3454-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
