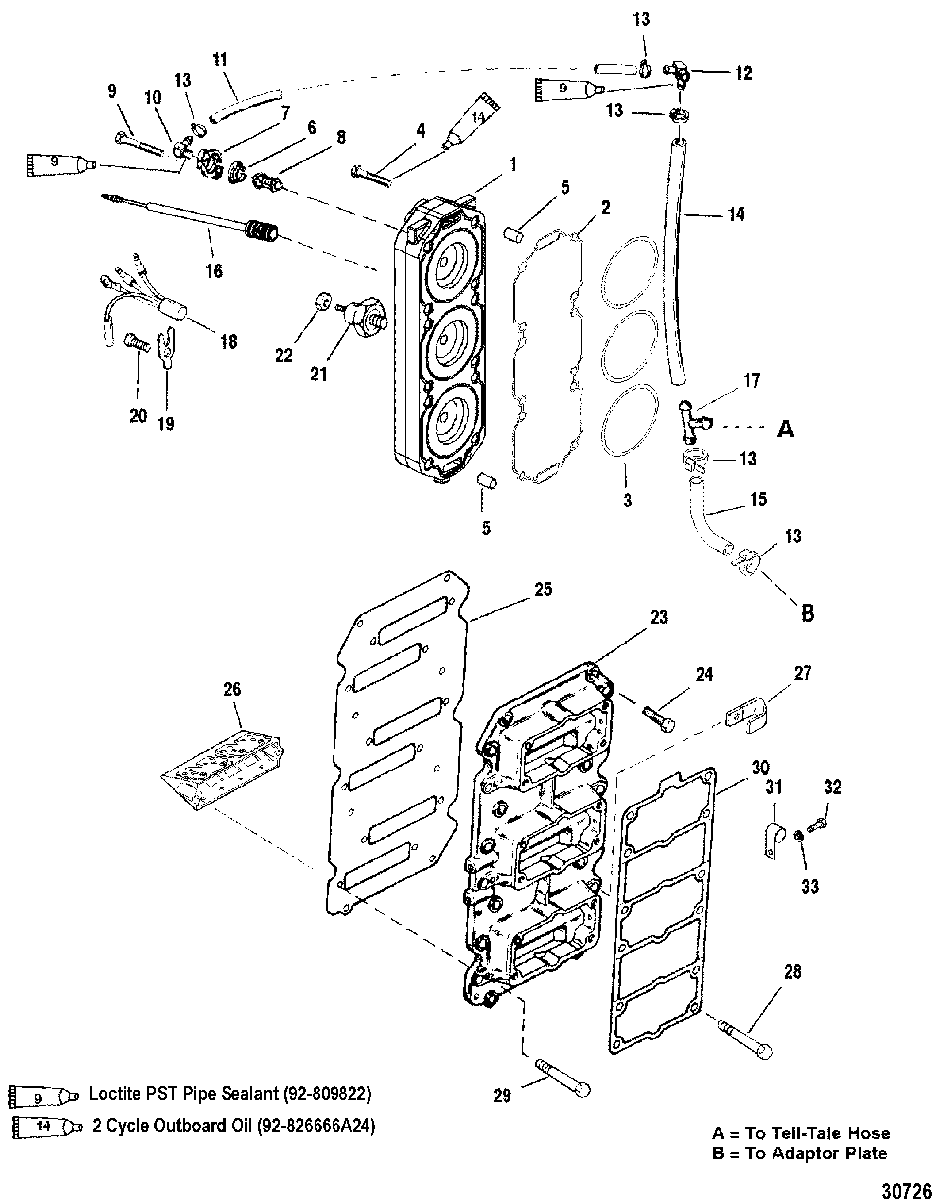

REED BLOCK AND CYLINDER HEAD для Mercury - V-200 (EFI) 0G960500 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    858281A9 CYLINDER HEAD
    (150)
    CYLINDER HEAD
    (150)
  • 1
    858281A10 CYLINDER HEAD
    (175/200)
    CYLINDER HEAD
    (175/200)
  • 2
    8584521 SEAL
    SEAL
  • 3
    8597721 SEAL
    SEAL
  • 4
    10-832971 SCREW, (.375-16 x 3.00)
    SCREW, (.375-16 x 3.00)
  • 4
    10-8274261 SCREW
    SCREW
  • 5
    17-63779 PIN, Dowel (.250 x .625)
    PIN, Dowel (.250 x .625)
  • 6
    27-62386001 GASKET
    GASKET
  • 7
    90390A1 COVER KIT
    COVER KIT
  • 8
    75692 THERMOSTAT
    THERMOSTAT
  • 9
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 10
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 11
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 IN.)
    HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 IN.)
  • 12
    22-68728 FITTING
    FITTING
  • 13
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 14
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 IN.)
    HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 IN.)
  • 15
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 4-1/2 IN.)
    HOSE, (48.00 Inches Bulk) (Cut to 4-1/2 IN.)
  • 16
    974651 SENDER (STBD.)
    SENDER (STBD.)
  • 17
    22-815914 T-FITTING
    T-FITTING
  • 18
    13536A14 SENSOR ASSEMBLY, Temperature (PORT)
    SENSOR ASSEMBLY, Temperature (PORT)
  • 19
    137151 RETAINER
    RETAINER
  • 20
    10-81893414 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 21
    826858 SENSOR, Knock (200)
    SENSOR, Knock (200)
  • 22
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 23
    17735A2 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 24
    10-28668 SCREW, (.250-20 x .875) Stainless Steel
    SCREW, (.250-20 x .875) Stainless Steel
  • 25
    27-146972 GASKET
    GASKET
  • 26
    855952T3 REED BLOCK ASSEMBLY
    REED BLOCK ASSEMBLY
  • 27
    54-55098 J CLIP
    J CLIP
  • 28
    10-55715 SCREW, (.250-20 x .880)
    SCREW, (.250-20 x .880)
  • 29
    10-90197 SCREW, (.250-20 x 1.125)
    SCREW, (.250-20 x 1.125)
  • 30
    27-167371 GASKET
    GASKET
  • 31
    54-65292 J CLIP
    J CLIP
  • 32
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 33
    8M0084613 C WASHER
    C WASHER
  • -
    27-815791A00 GASKET SET, Engine
    GASKET SET, Engine
  • -
    823434R00 POWERHEAD ASSEMBLY
    (150)
    POWERHEAD ASSEMBLY
    (150)
  • -
    812817T00 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
  • -
    813043R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
