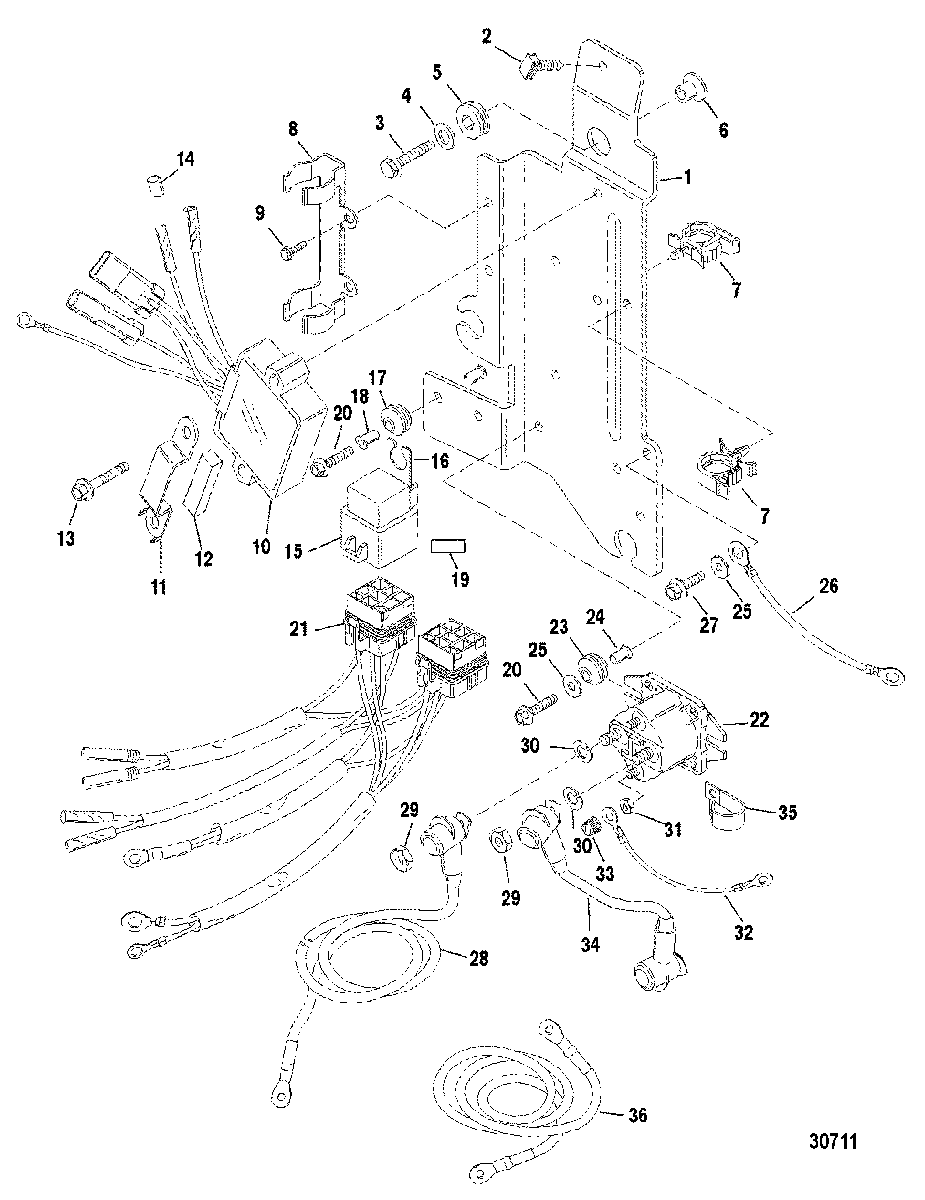

SOLENOID MOUNTING для Mercury - V-200 (EFI) 0G960500 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    8571641 PLATE
    PLATE
  • 2
    54-828991T CLIP
    CLIP
  • 3
    10-60411 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 4
    12-49436 WASHER
    WASHER
  • 5
    25-833155 GROMMET
    GROMMET
  • 6
    23-8502341 BUSHING
    BUSHING
  • 7
    828791 CLIP
    CLIP
  • 8
    8261151 CLAMP, Connector
    CLAMP, Connector
  • 9
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 10
    883072T2 REGULATOR, Voltage
    REGULATOR, Voltage
  • 11
    893771 BRACKET
    BRACKET
  • 12
    8308971 FOAM PAD
    FOAM PAD
  • 13
    10-82129135 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 14
    13541 PLUG, Male (GRAY LEAD)
    PLUG, Male (GRAY LEAD)
  • 15
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 16
    828102 BRACKET
    BRACKET
  • 17
    25-818967 GROMMET
    GROMMET
  • 18
    23-818968 BUSHING
    BUSHING
  • 19
    NSS NOT SOLD SEPARATE, Decal
    NOT SOLD SEPARATE, Decal
  • 20
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 21
    84-819514A11 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 22
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
  • 23
    25-822179 GROMMET
    GROMMET
  • 24
    23-818968 BUSHING
    BUSHING
  • 25
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 26
    84-856583A3 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 27
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 28
    84-88439A34 CABLE ASSEMBLY, Positive - Battery
    CABLE ASSEMBLY, Positive - Battery
  • 29
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 30
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 31
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 32
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
  • 33
    11-813938 CAP NUT, (#10-32)
    CAP NUT, (#10-32)
  • 34
    84-93388A14 CABLE ASSEMBLY, Yellow/Black
    CABLE ASSEMBLY, Yellow/Black
  • 35
    54-55098 J CLIP
    J CLIP
  • 36
    84-88439A24 CABLE ASSEMBLY, Negative - Battery
    CABLE ASSEMBLY, Negative - Battery
