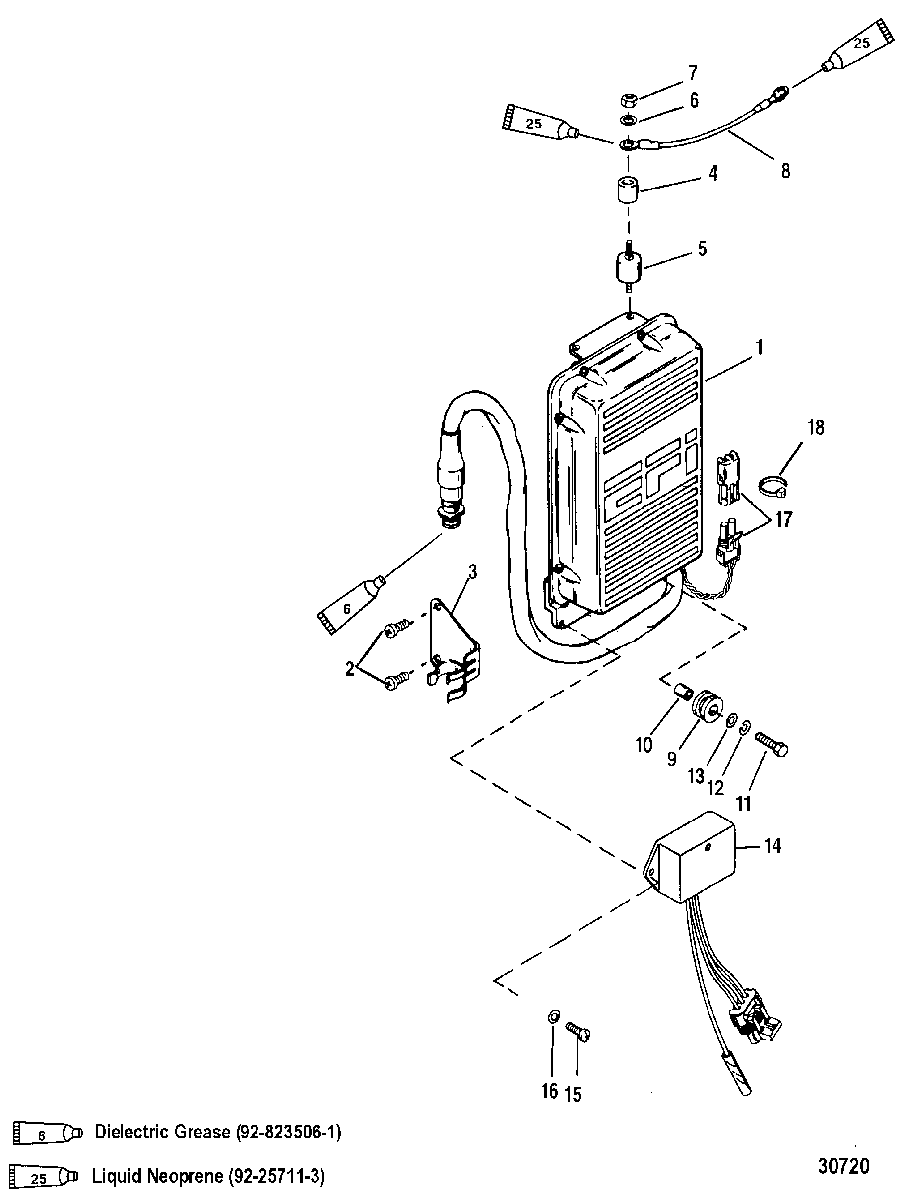

E.C.U. ASSEMBLY для Mercury - V-200 (EFI) 0G960500 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    82400327T ECU, Engine Control Unit
    (150)
    ECU, Engine Control Unit
    (150)
  • 1
    82400328T ECU, Engine Control Unit
    (175)
    ECU, Engine Control Unit
    (175)
  • 1
    8M0068753 ECU, Engine Control Unit
    (200)
    ECU, Engine Control Unit
    (200)
  • 2
    10-8221561 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 3
    54-146951 CLIP
    CLIP
  • 4
    23-34948 SPACER
    SPACER
  • 5
    90435 MOUNT
    MOUNT
  • 6
    12-21249 WASHER
    WASHER
  • 7
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 8
    84-88807A19 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 9
    14637 GROMMET
    GROMMET
  • 10
    23-14636 BUSHING
    BUSHING
  • 11
    10-28667 SCREW, (.250-20 x 1.00) Stainless Steel
    SCREW, (.250-20 x 1.00) Stainless Steel
  • 12
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 13
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 14
    13202A5 MODULE ASSEMBLY
    MODULE ASSEMBLY
  • 15
    10-37571 SCREW, (.190-32 x .500)
    SCREW, (.190-32 x .500)
  • 16
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 17
    832948A1 CONNECTOR ASSEMBLY
    CONNECTOR ASSEMBLY
  • 18
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
