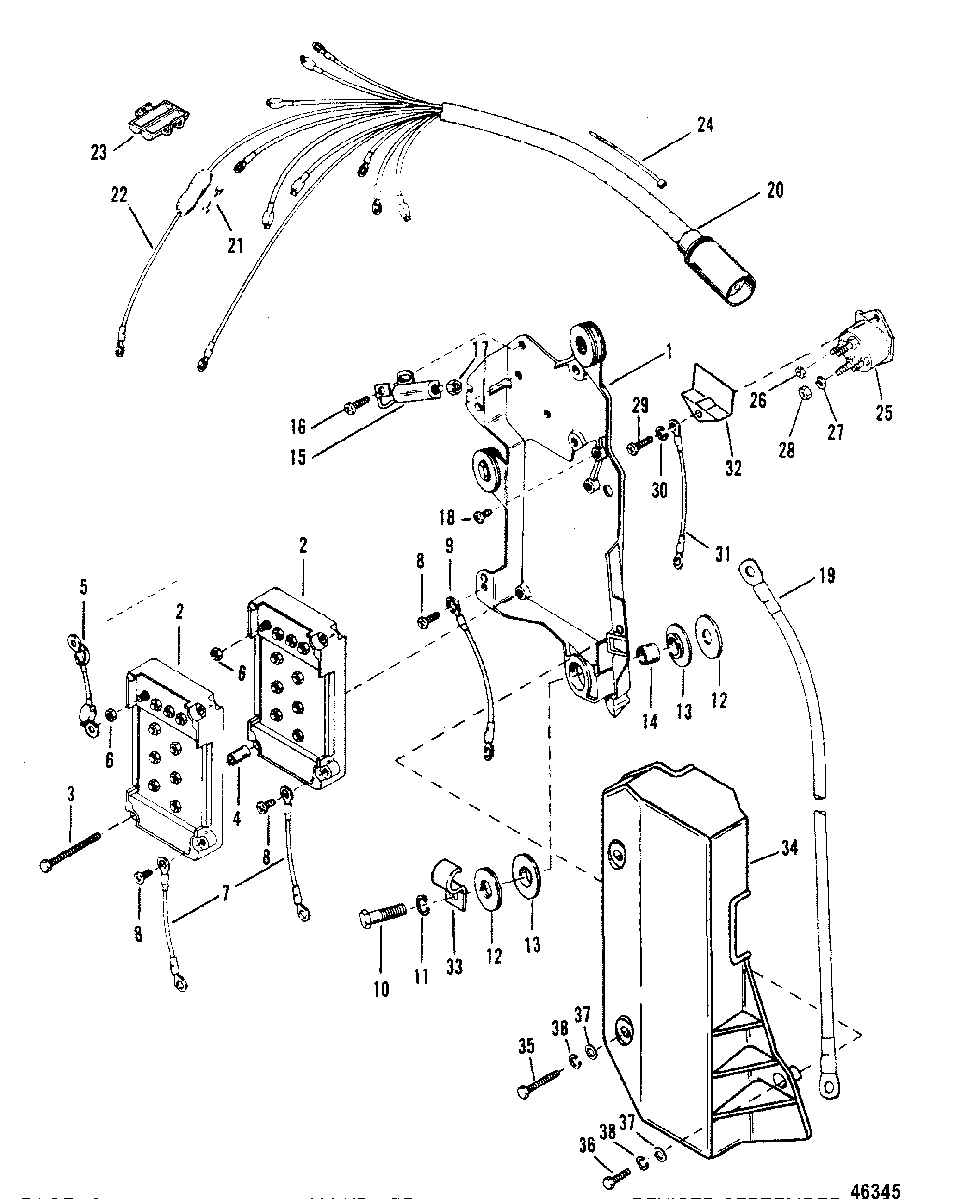

WIRING HARNESS/STARTER SOLENOID для Mercury - V-200 (EFI) 0C100861 THRU 0C999999

  • №
    Артикул
    Название
  • 1
    434292 IGNITION PLATE, IGNITION
    IGNITION PLATE, IGNITION
  • 2
    332-7778A12 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 3
    10-13669 SCREW, (#12-24 x 2.00), SWITCH BOX TO IGNITION PLATE
    (2-1/2")
    SCREW, (#12-24 x 2.00), SWITCH BOX TO IGNITION PLATE
    (2-1/2")
  • 4
    23-94453 BUSHING, SWITCH BOX SCREW
    BUSHING, SWITCH BOX SCREW
  • 5
    84-88528A2 CABLE ASSEMBLY (6" - RED/WHITE)
    CABLE ASSEMBLY (6" - RED/WHITE)
  • 6
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINAL
    NUT, (#10-32) Brass, SWITCH BOX TERMINAL
  • 7
    84-60871A10 WIRE ASSEMBLY, SWITCH BOX
    WIRE ASSEMBLY, SWITCH BOX
  • 8
    10-62568 SCREW, (#10-16 x .375), WIRE ATTACHING
    SCREW, (#10-16 x .375), WIRE ATTACHING
  • 9
    84-65999A3 CABLE ASSEMBLY, Black, BLACK
    CABLE ASSEMBLY, Black, BLACK
  • 10
    10-60411 SCREW, (1.25), IGNITION PLATE
    (1-1/4")
    SCREW, (1.25), IGNITION PLATE
    (1-1/4")
  • 11
    13-26993 LOCKWASHER, (.312), IGNITION PLATE SCREW
    LOCKWASHER, (.312), IGNITION PLATE SCREW
  • 12
    12-36042 WASHER, IGNITION PLATE SCREW
    WASHER, IGNITION PLATE SCREW
  • 13
    12-67264 WASHER, (Rubber), IGNITION PLATE SCREW (RUBBER)
    WASHER, (Rubber), IGNITION PLATE SCREW (RUBBER)
  • 14
    23-67268 BUSHING, IGNITION PLATE SCREW
    BUSHING, IGNITION PLATE SCREW
  • 15
    87-33386A3 SWITCH ASSEMLBY
    SWITCH ASSEMLBY
  • 16
    10-38055 SCREW, (.190-32 x .620), MERCURY SWITCH TO IGNITION PLATE
    (5/8")
    SCREW, (.190-32 x .620), MERCURY SWITCH TO IGNITION PLATE
    (5/8")
  • 17
    11-45076 NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
    NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
  • 18
    10-87926 SCREW, (#10-32 x .500), LEAD ATTACHING
    (1/2")
    SCREW, (#10-32 x .500), LEAD ATTACHING
    (1/2")
  • 19
    84-88439A3 CABLE ASSEMBLY, Positive - Battery, POSITIVE
    CABLE ASSEMBLY, Positive - Battery, POSITIVE
  • 19
    84-88439A2 CABLE ASSEMBLY, Battery - Negative, NEGATIVE
    CABLE ASSEMBLY, Battery - Negative, NEGATIVE
  • 20
    84-96220A12 HARNESS ASSEMBLY, ENGINE
    HARNESS ASSEMBLY, ENGINE
  • 21
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 22
    84-95084A2 CABLE ASSEMBLY, FUSE
    CABLE ASSEMBLY, FUSE
  • 23
    134731 HOLDER, Fuse
    HOLDER, Fuse
  • 24
    54-816311T TIE STRAP, HARNESS AND CABLES
    TIE STRAP, HARNESS AND CABLES
  • 25
    89-853654A1 SOLENOID, Starter
    SOLENOID, Starter
  • 26
    11-45076 NUT, (#10-32) Brass, SOLENOID TERMINALS (10-32)
    NUT, (#10-32) Brass, SOLENOID TERMINALS (10-32)
  • 27
    13-53166 LOCKWASHER, (.312), SOLENOID TERMINALS (5/16")
    LOCKWASHER, (.312), SOLENOID TERMINALS (5/16")
  • 28
    11-68292 NUT, (.312-18), SOLENOID TERMINALS (5/16-18)
    NUT, (.312-18), SOLENOID TERMINALS (5/16-18)
  • 29
    10-31716 SCREW, (.250-20 x .620), SOLENOID TO IGNITION PLATE
    (5/8")
    SCREW, (.250-20 x .620), SOLENOID TO IGNITION PLATE
    (5/8")
  • 30
    13-26992 LOCKWASHER, (.250) Stainless Steel
    SOLENOID TO IGNITION PLATE SCREW
    LOCKWASHER, (.250) Stainless Steel
    SOLENOID TO IGNITION PLATE SCREW
  • 31
    84-65999A2 CABLE ASSEMBLY, Black, UPPER MOUNT (BLACK)
    CABLE ASSEMBLY, Black, UPPER MOUNT (BLACK)
  • 32
    85-78866 INSULATOR, SOLENOID (OLD DESIGN)
    INSULATOR, SOLENOID (OLD DESIGN)
  • 33
    54-47483 J CLIP
    J CLIP
  • 34
    814422T COVER, IGNITION PLATE
    SN# C239553 & Up
    COVER, IGNITION PLATE
    SN# C239553 & Up
  • 35
    10-88447 SCREW, (.190-32 x 1.62)
    SN# C239553 & Up
    SCREW, (.190-32 x 1.62)
    SN# C239553 & Up
  • 36
    10-690201 SCREW, (#10-32 x .875)
    SN# C239553 & Up
    SCREW, (#10-32 x .875)
    SN# C239553 & Up
  • 37
    12-89302 WASHER, (.203 x .406 x .040)
    SN# C239553 & Up
    WASHER, (.203 x .406 x .040)
    SN# C239553 & Up
  • 38
    13-26992 LOCKWASHER, (.250) Stainless Steel
    SN# C239553 & Up
    LOCKWASHER, (.250) Stainless Steel
    SN# C239553 & Up
