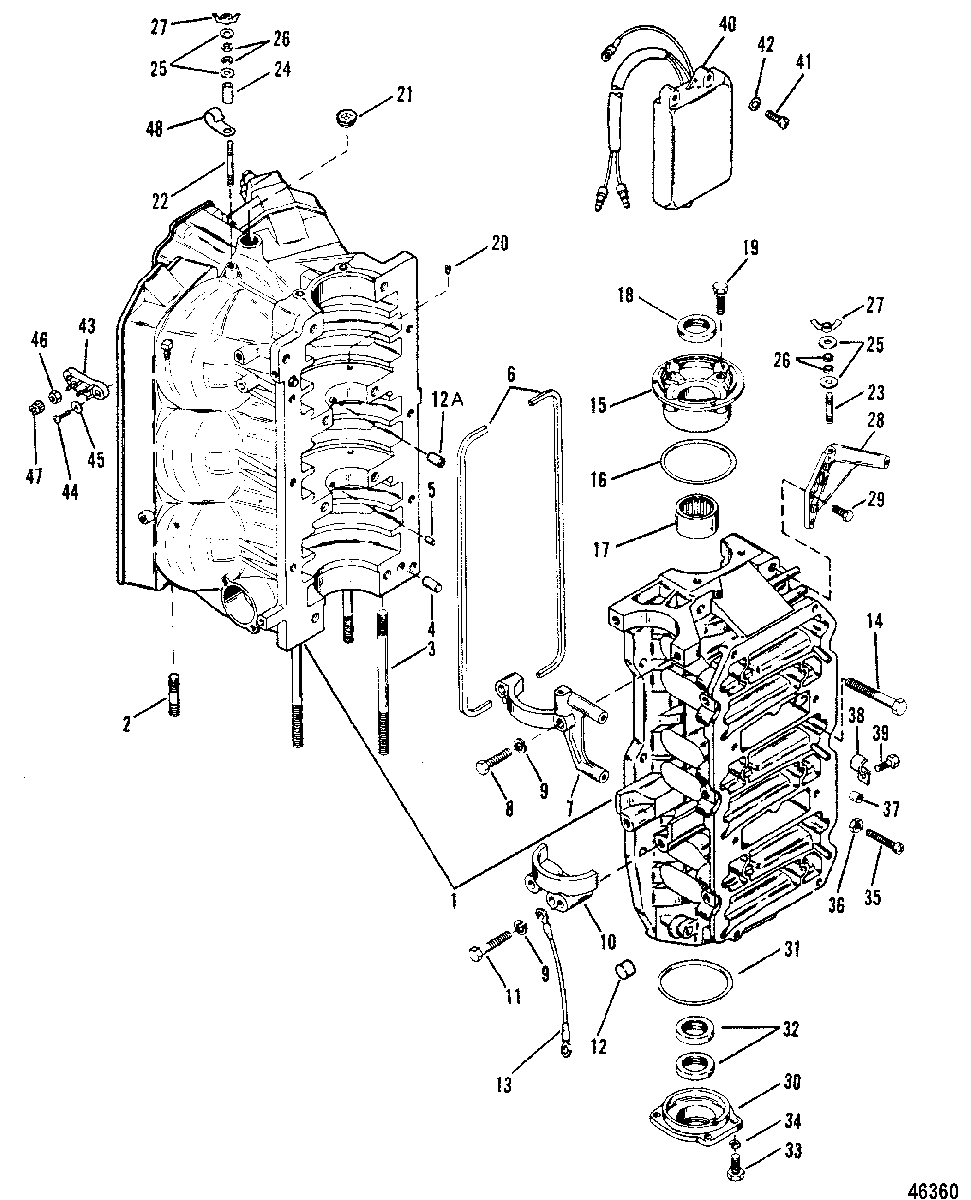

CYLINDER BLOCK AND END CAPS для Mercury - V-200 (EFI) 0C100861 THRU 0C999999
-
№АртикулНазвание
-
1858-8712T41 CYLINDER BLOCKCYLINDER BLOCK
-
216-76175 STUD, POWERHEAD
(1-7/8")STUD, POWERHEAD
(1-7/8") -
316-670654 STUD, POWERHEAD
(5-1/2")STUD, POWERHEAD
(5-1/2") -
316-8M0034454 STUD, POWERHEAD
(6-3/4")STUD, POWERHEAD
(6-3/4") -
417-43044 PIN, Dowel, LOCATINGPIN, Dowel, LOCATING
-
517-8M0036405 PIN, CYLINDER BLOCK (BEARING RACE)PIN, CYLINDER BLOCK (BEARING RACE)
-
627-11338 GASKET, SEALINGGASKET, SEALING
-
78M0088723 COVER, STARTER MOTOR (UPPER)COVER, STARTER MOTOR (UPPER)
-
810-73657 SCREW, (.312-18 x 1.50), COVER TO CRANKCASE
(1-1/2")SCREW, (.312-18 x 1.50), COVER TO CRANKCASE
(1-1/2") -
913-26993 LOCKWASHER, (.312), STARTER MOTOR COVER SCREWLOCKWASHER, (.312), STARTER MOTOR COVER SCREW
-
1076867 COVER, STARTER MOTOR (LOWER)COVER, STARTER MOTOR (LOWER)
-
1110-815549 SCREW, (.312-18 x 2), COVER TO CRANKCASE
(2")SCREW, (.312-18 x 2), COVER TO CRANKCASE
(2") -
1219-88801 PLUG, CUPPEDPLUG, CUPPED
-
1223-99448 BUSHINGBUSHING
-
1384-88807A20 CABLE ASSEMBLY, COVERCABLE ASSEMBLY, COVER
-
1410-66717 SCREW, (.375-16 x 3.250), CRANKCASE CYLINDER BLOCK
(3-1/4")SCREW, (.375-16 x 3.250), CRANKCASE CYLINDER BLOCK
(3-1/4") -
1410-74824 SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK
(1-1/4")SCREW, (.312-18 x 1.250), CRANKCASE TO CYLINDER BLOCK
(1-1/4") -
151159-9608T1 END CAP ASSEMBLY (UPPER)END CAP ASSEMBLY (UPPER)
-
1625-54029 O-RING, (2.800 x .103), END CAPO-RING, (2.800 x .103), END CAP
-
1731-93496T BEARING, Roller, END CAPBEARING, Roller, END CAP
-
1826-41953 SEAL, END CAPSEAL, END CAP
-
1910-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00), UPPER END CAP TO CYLINDER BLOCK (1")SCREW AND LOCKWASHER, (.312-18 x 1.00), UPPER END CAP TO CYLINDER BLOCK (1")
-
2010-24220 SCREW, (.190-24 x .190), SET - CYLINDER BLOCK (OLD DESIGN)
(3/16")SCREW, (.190-24 x .190), SET - CYLINDER BLOCK (OLD DESIGN)
(3/16") -
2122-38407 PLUG, (.500-14)
CYLINDER BLOCK (WATER JACKET) (OLD DESIGN)PLUG, (.500-14)
CYLINDER BLOCK (WATER JACKET) (OLD DESIGN) -
2216-15094 STUD, (.190-32 x 1.870), FLYWHEEL COVER TO CYLINDER BLOCK
(1-7/8")STUD, (.190-32 x 1.870), FLYWHEEL COVER TO CYLINDER BLOCK
(1-7/8") -
2316-8M0034435 STUD, (#10-32 x 1.00), FLYWHEEL COVER TO BRACKET
(1")STUD, (#10-32 x 1.00), FLYWHEEL COVER TO BRACKET
(1") -
2423-67269 SPACER, FLYWHEEL COVER STUDSPACER, FLYWHEEL COVER STUD
-
2512-49221 WASHER, FLYWHEEL COVER STUDWASHER, FLYWHEEL COVER STUD
-
2612-72761 WASHER, (.203 x .562 x .060) Stainless Steel, FLYHWEEL COVER STUDWASHER, (.203 x .562 x .060) Stainless Steel, FLYHWEEL COVER STUD
-
2711-816874 NUT, FLYWHEEL COVER STUDNUT, FLYWHEEL COVER STUD
-
28422482 BRACKET, FLYWHEEL COVERBRACKET, FLYWHEEL COVER
-
2910-49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASE
(3/4")SCREW, (.250-20 x .750), BRACKET TO CRANKCASE
(3/4") -
301156-7809T1 END CAP ASSEMBLY (LOWER)END CAP ASSEMBLY (LOWER)
-
3125-62700 O-RING, (3.237 x .103), END CAP (3 3/4" I.D.)O-RING, (3.237 x .103), END CAP (3 3/4" I.D.)
-
3226-41953 SEAL, END CAPSEAL, END CAP
-
3310-28636 SCREW, (.250-20 x .750), LOWER END CAP TO CYLINDER BLOCK
(3/4")SCREW, (.250-20 x .750), LOWER END CAP TO CYLINDER BLOCK
(3/4") -
3413-26992 LOCKWASHER, (.250) Stainless Steel, LOWER END CAP SCREWLOCKWASHER, (.250) Stainless Steel, LOWER END CAP SCREW
-
3510-64022 SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCKSCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK
-
3611-64015 NUT, (.250-20), JAM - ADJUSTING SCREWNUT, (.250-20), JAM - ADJUSTING SCREW
-
3726852 CAP, Nylon, NYLON - ADJUSTING SCREWCAP, Nylon, NYLON - ADJUSTING SCREW
-
3854-16793 CLAMPCLAMP
-
3910-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
4087076A10 IDLE SPEED CONTROL ASSEMBLYIDLE SPEED CONTROL ASSEMBLY
-
4110-690201 SCREW, (#10-32 x .875), IDLE SPEED CONTROLSCREW, (#10-32 x .875), IDLE SPEED CONTROL
-
4212-38833 WASHER, IDLE SPEED SONTROL SCREWWASHER, IDLE SPEED SONTROL SCREW
-
4386-194372 TERMINAL BLOCKTERMINAL BLOCK
-
4410-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
4512-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
4611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
4711-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
4854-63153 J CLIPJ CLIP
-
-812827T89 POWERHEAD ASSEMBLY, COMPLETE
INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING RODS AND BEARINGS, ETC.POWERHEAD ASSEMBLY, COMPLETE
INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING RODS AND BEARINGS, ETC. -
-27-14697A87 GASKET SETGASKET SET
