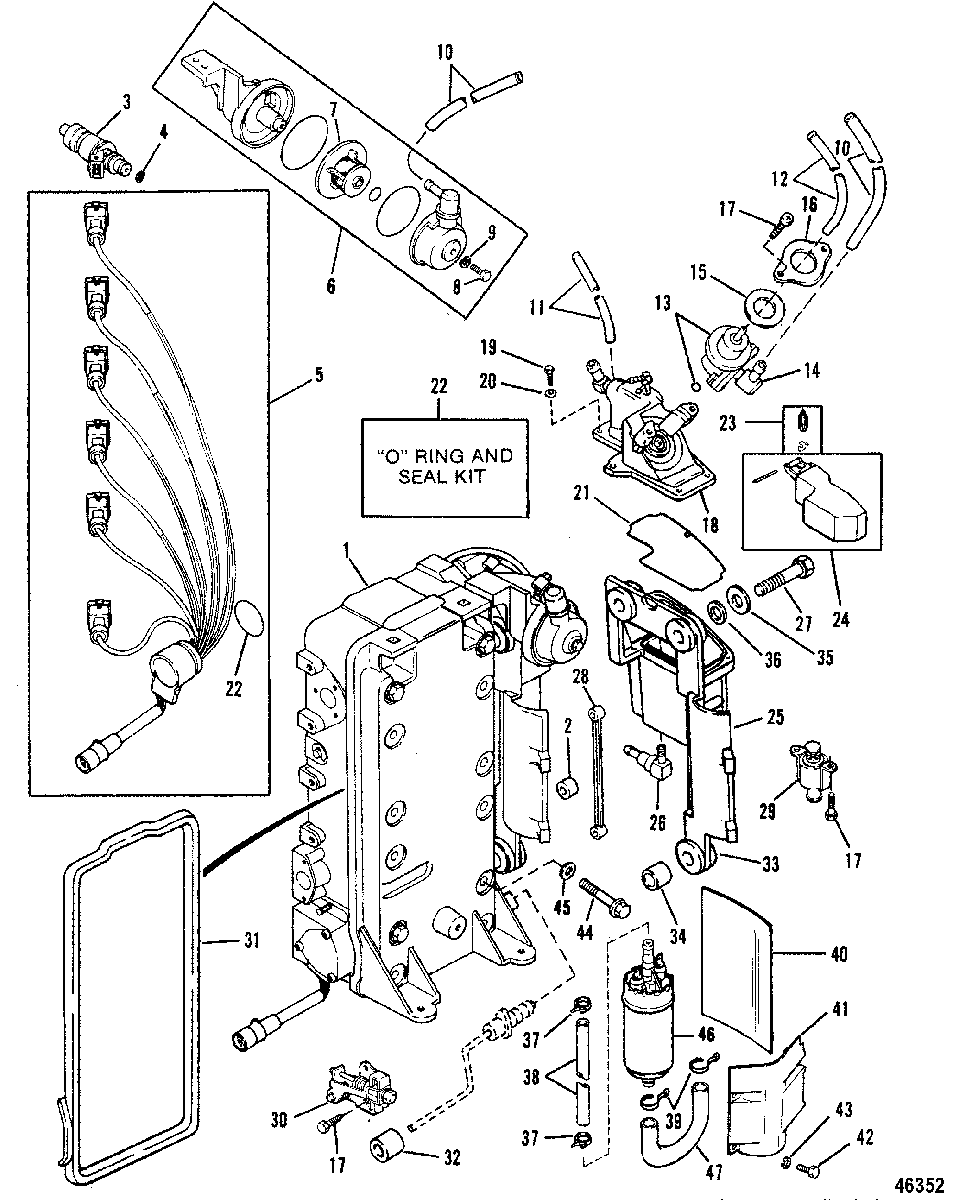

FUEL MANAGEMENT SYSTEM для Mercury - V-200 (EFI) 0C100861 THRU 0C999999
-
№АртикулНазвание
-
114817A2 MANAGEMENT ASSEMBLY, FuelMANAGEMENT ASSEMBLY, Fuel
-
267748 ROLLER, CAMROLLER, CAM
-
318715T INJECTOR, FuelINJECTOR, Fuel
-
435-17422 FILTER, INJECTORFILTER, INJECTOR
-
584-15443 HARNESS KITHARNESS KIT
-
635-15442 FILTER KIT, FuelFILTER KIT, Fuel
-
735-150282 FILTER, FuelFILTER, Fuel
-
810-400034 SCREW, (M5 x 14), FILTER COVERSCREW, (M5 x 14), FILTER COVER
-
913-400255 LOCKWASHER, (M5), COVER SCREWLOCKWASHER, (M5), COVER SCREW
-
1032-1350385 HOSE (1/2" O.D.)HOSE (1/2" O.D.)
-
1132-9912688 TUBING, (36.00 Inches Bulk) (1/8" I.D.)TUBING, (36.00 Inches Bulk) (1/8" I.D.)
-
1232-892024122 TUBING, (20.00 Feet Bulk) (3/32" I.D.)TUBING, (20.00 Feet Bulk) (3/32" I.D.)
-
1315027 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
14814233 ELBOW KITELBOW KIT
-
1527-18791 GASKET, PRESSURE REGULATORGASKET, PRESSURE REGULATOR
-
16814012 PLATE, PRESSURE REGULATORPLATE, PRESSURE REGULATOR
-
1710-814076 SCREWSCREW
-
.18814010 COVER KITCOVER KIT
-
1910-4001987 SCREW, (M4 x 16), COVER TO SEPARATORSCREW, (M4 x 16), COVER TO SEPARATOR
-
2013-26995 LOCKWASHER, (#8) Stainless Steel, COVER SCREWLOCKWASHER, (#8) Stainless Steel, COVER SCREW
-
2126-18790 SEAL, VAPOR SEPARATORSEAL, VAPOR SEPARATOR
-
2215029 O-RING AND SEAL KITO-RING AND SEAL KIT
-
2315446 VALVE KIT, FloatVALVE KIT, Float
-
2415445 FLOAT KITFLOAT KIT
-
25814011 BODY KITBODY KIT
-
2621-424811 CHECK VALVECHECK VALVE
-
2710-4000332 SCREW, (M6 x 35), SEPARATOR TO FUEL MANAGEMENTSCREW, (M6 x 35), SEPARATOR TO FUEL MANAGEMENT
-
2815444 LINKLINK
-
2921-18241 CHECK VALVECHECK VALVE
-
3020-18348 VALVE, Shut OffVALVE, Shut Off
-
3126-18792 SEAL, INJECTOR MANIFOLDSEAL, INJECTOR MANIFOLD
-
3223-19275 SPACERSPACER
-
3325-88033 GROMMETGROMMET
-
3423-814913 SPACERSPACER
-
3512-35280 WASHER (LARGE)WASHER (LARGE)
-
3612-69057 WASHER (SMALL)WASHER (SMALL)
-
3754-13791 CLAMP, (15.7), HOSECLAMP, (15.7), HOSE
-
3832-1350385 HOSE (1-3/4")HOSE (1-3/4")
-
3954-816311T TIE STRAPTIE STRAP
-
4014639 BLANKET, FUEL PUMPBLANKET, FUEL PUMP
-
4114640T COVER, FUEL PUMPCOVER, FUEL PUMP
-
4210-32228 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
4313-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
4410-845674 SCREW, (.250-20 x 4)SCREW, (.250-20 x 4)
-
4512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4614307T01 PUMP, FuelPUMP, Fuel
-
4732-146332 HOSEHOSE
