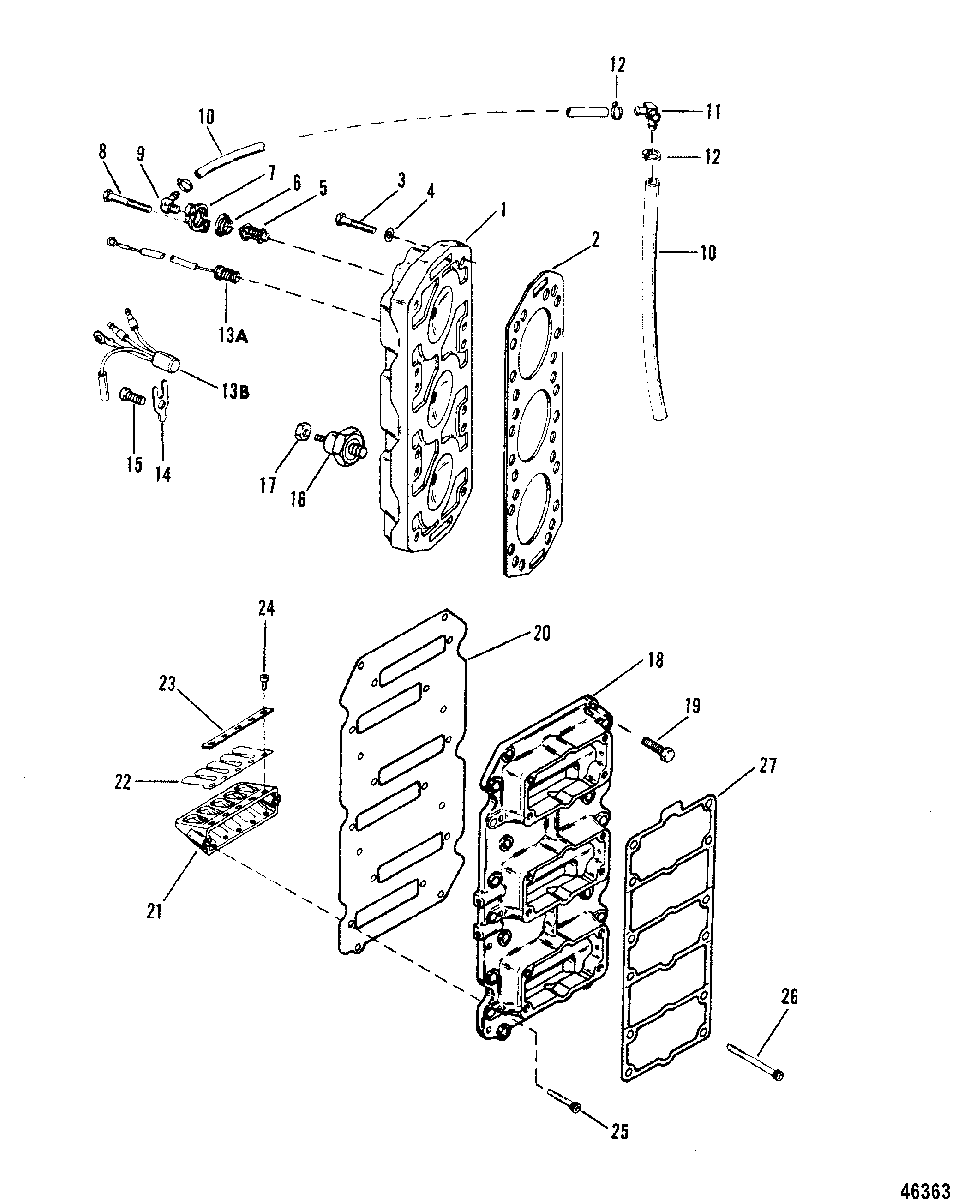

REED BLOCK AND CYLINDER HEAD для Mercury - V-200 (EFI) 0C100861 THRU 0C999999

  • №
    Артикул
    Название
  • 1
    15221A5 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 2
    27-41247T01 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 3
    10-98534 SCREW, (.375-16 x 2.30), CYLINDER HEAD (2")
    SCREW, (.375-16 x 2.30), CYLINDER HEAD (2")
  • 3
    10-13450 SCREW, (.375-16 x 2.30), CYLINDER HEAD (SPECIAL)
    SCREW, (.375-16 x 2.30), CYLINDER HEAD (SPECIAL)
  • 4
    12-25909 WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
    WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
  • 5
    75692 THERMOSTAT
    THERMOSTAT
  • 6
    27-62386001 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • 7
    90390A1 COVER KIT, THERMOSTAT
    COVER KIT, THERMOSTAT
  • 8
    10-35386 SCREW, (.312-18 x 1.00), THERMOSTAT COVER (1")
    SCREW, (.312-18 x 1.00), THERMOSTAT COVER (1")
  • 9
    22-687271 FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
    FITTING, (.250-18) 90 Degree - Brass, ELBOW - WATER HOSES
  • 10
    32-77653101 HOSE, (24.500 Inches Bulk), WATER DISTRIBUTION
    HOSE, (24.500 Inches Bulk), WATER DISTRIBUTION
  • 11
    22-68728 FITTING, THERMOSTAT COVER TO WATER HOSES
    FITTING, THERMOSTAT COVER TO WATER HOSES
  • 12
    54-816311T TIE STRAP, WATER HOSES
    TIE STRAP, WATER HOSES
  • 13
    97465 SENDER, Temperature (STARBOARD)
    SENDER, Temperature (STARBOARD)
  • 13
    13536A6 SENSOR ASSEMBLY, Temperature (PORT)
    SENSOR ASSEMBLY, Temperature (PORT)
  • 14
    137151 RETAINER, SENSOR AND SENDER
    RETAINER, SENSOR AND SENDER
  • 15
    10-98257 SCREW, (.312-18 x .500), RETAINER
    SCREW, (.312-18 x .500), RETAINER
  • 16
    825164A1 SENSOR, Detonation
    SENSOR, Detonation
  • 17
    11-45076 NUT, (#10-32) Brass, DETONATION SENSOR
    NUT, (#10-32) Brass, DETONATION SENSOR
  • 18
    14593A4 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 19
    10-28668 SCREW, (.250-20 x .875) Stainless Steel, ADAPTOR PLATE
    SCREW, (.250-20 x .875) Stainless Steel, ADAPTOR PLATE
  • 20
    27-146971 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 21
    75953 REED BLOCK
    REED BLOCK
  • 22
    34-75362A1 REED ASSEMBLY
    REED ASSEMBLY
  • 23
    961832 CLAMP, Reed
    CLAMP, Reed
  • 24
    10-823588 SCREW, (#8-32 x .187), REEDS TO REED BLOCK
    SCREW, (#8-32 x .187), REEDS TO REED BLOCK
  • 25
    10-92160 SCREW, (.250-20 x .75), REED BLOCK ATTACHING (3/4")
    SCREW, (.250-20 x .75), REED BLOCK ATTACHING (3/4")
  • 26
    10-90197 SCREW, (.250-20 x 1.125), REED BLOCK ATTACHING (2")
    SCREW, (.250-20 x 1.125), REED BLOCK ATTACHING (2")
  • 27
    27-167371 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • -
    27-14697A87 GASKET SET
    GASKET SET
