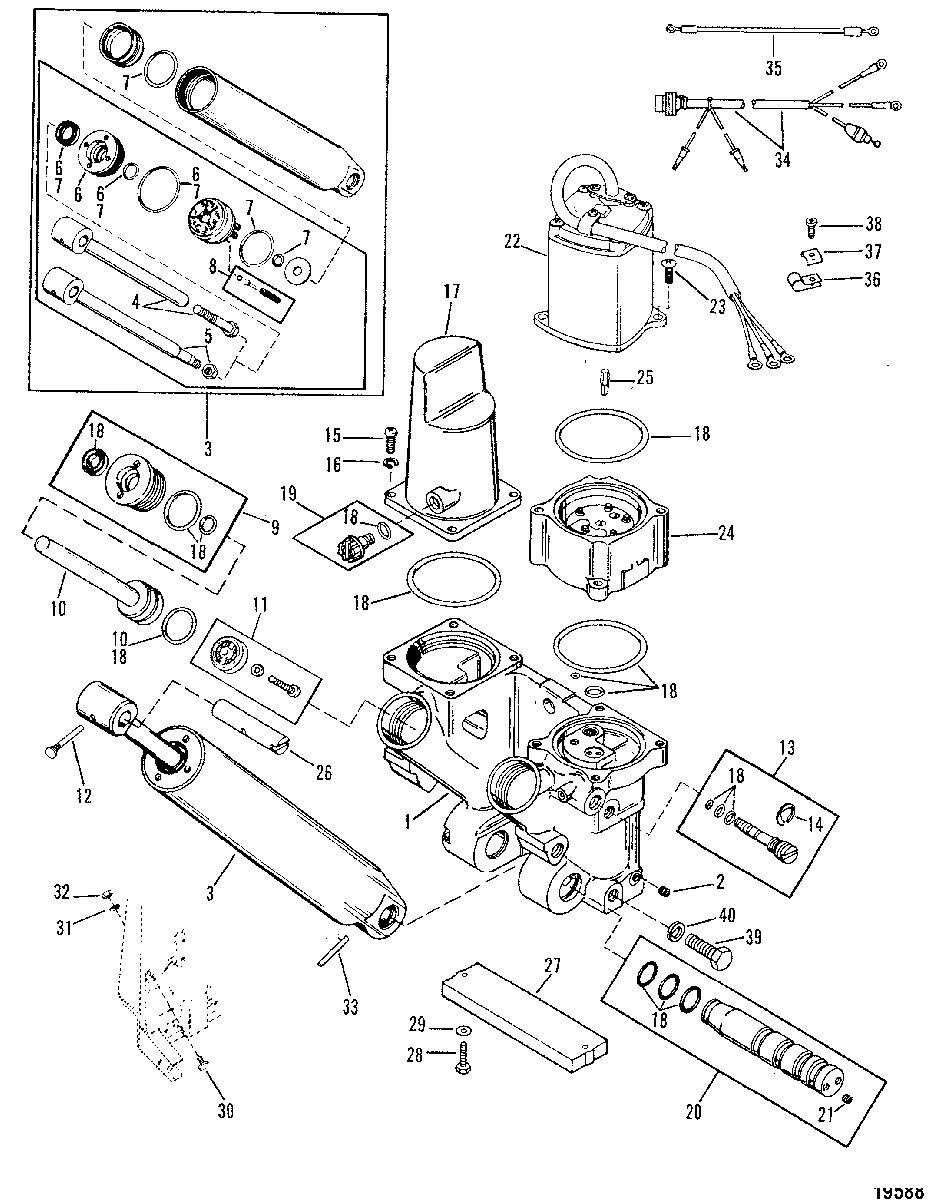

Power Trim Components(Design II) для Mercury - V-150 0C239553 THRU 0D081999
-
№АртикулНазвание
-
-826729A10 POWER TRIM ASSEMBLY, COMPLETEPOWER TRIM ASSEMBLY, COMPLETE
-
1811604F MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
222-56800 PIPE PLUGPIPE PLUG
-
38M0078330 TILT CYLINDER ASSEMBLYTILT CYLINDER ASSEMBLY
-
4811608 PISTON ROD (BOLT TYPE)PISTON ROD (BOLT TYPE)
-
58M0078330 PISTON ROD (NUT TYPE)PISTON ROD (NUT TYPE)
-
68M0090322 GUIDE KITGUIDE KIT
-
7811607A1 REPAIR KITREPAIR KIT
-
88M0078330 CHECK VALVE KITCHECK VALVE KIT
-
91100-8M0021648 GUIDE ASSEMBLYGUIDE ASSEMBLY
-
10878413A1 PISTON AND ROD ASSEMBLY (PORT)PISTON AND ROD ASSEMBLY (PORT)
-
10878414T01 PISTON AND ROD ASSEMBLY (STARBOARD)PISTON AND ROD ASSEMBLY (STARBOARD)
-
1135-12184A1 TRIM FILTER ASSEMBLYTRIM FILTER ASSEMBLY
-
1217-821539 PIN, GroovePIN, Groove
-
13893929A01 VALVE ASSEMBYVALVE ASSEMBY
-
1453-815949001 E RINGE RING
-
1510-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1612-4002315 WASHERWASHER
-
17811611 COVERCOVER
-
18811612A3 O-RING KITO-RING KIT
-
1919-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
20878241A03 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
2122-56800 PIPE PLUGPIPE PLUG
-
22878265A6 TRIM MOTORTRIM MOTOR
-
2310-811615 SCREW (LONG)SCREW (LONG)
-
2310-811616 SCREW (SHORT)SCREW (SHORT)
-
24811617T1 PUMPPUMP
-
25811619 DRIVESHAFTDRIVESHAFT
-
2699625002 SHAFTSHAFT
-
2797-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
2810-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2912-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
308M0045383 STRIKER PLATESTRIKER PLATE
-
3113-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3211-46335 NUT, (.375-24)NUT, (.375-24)
-
3317-878267 PIN, GroovePIN, Groove
-
3484-814609A1 CONTROL HARNESS, POWER TRIMCONTROL HARNESS, POWER TRIM
-
3584-88808A22 CABLE (6-3/8" - RED)CABLE (6-3/8" - RED)
-
3584-88808A23 CABLE (24" - RED)CABLE (24" - RED)
-
3584-87379A14 WIRE ASSEMBLY, (2.750 Inches)WIRE ASSEMBLY, (2.750 Inches)
-
3654-22875 CLIP, PUMP WIRECLIP, PUMP WIRE
-
378M0084613 C WASHER, CLIP SCREWC WASHER, CLIP SCREW
-
3810-69079 SCREW, (#10-16 x .440), CLIP TO TRANSOM BRACKETSCREW, (#10-16 x .440), CLIP TO TRANSOM BRACKET
-
3910-4000377 SCREW, (M10 x 30), MANIFOLDSCREW, (M10 x 30), MANIFOLD
-
4013-400258 LOCKWASHER, SS, MANIFOLD SCREWLOCKWASHER, SS, MANIFOLD SCREW
