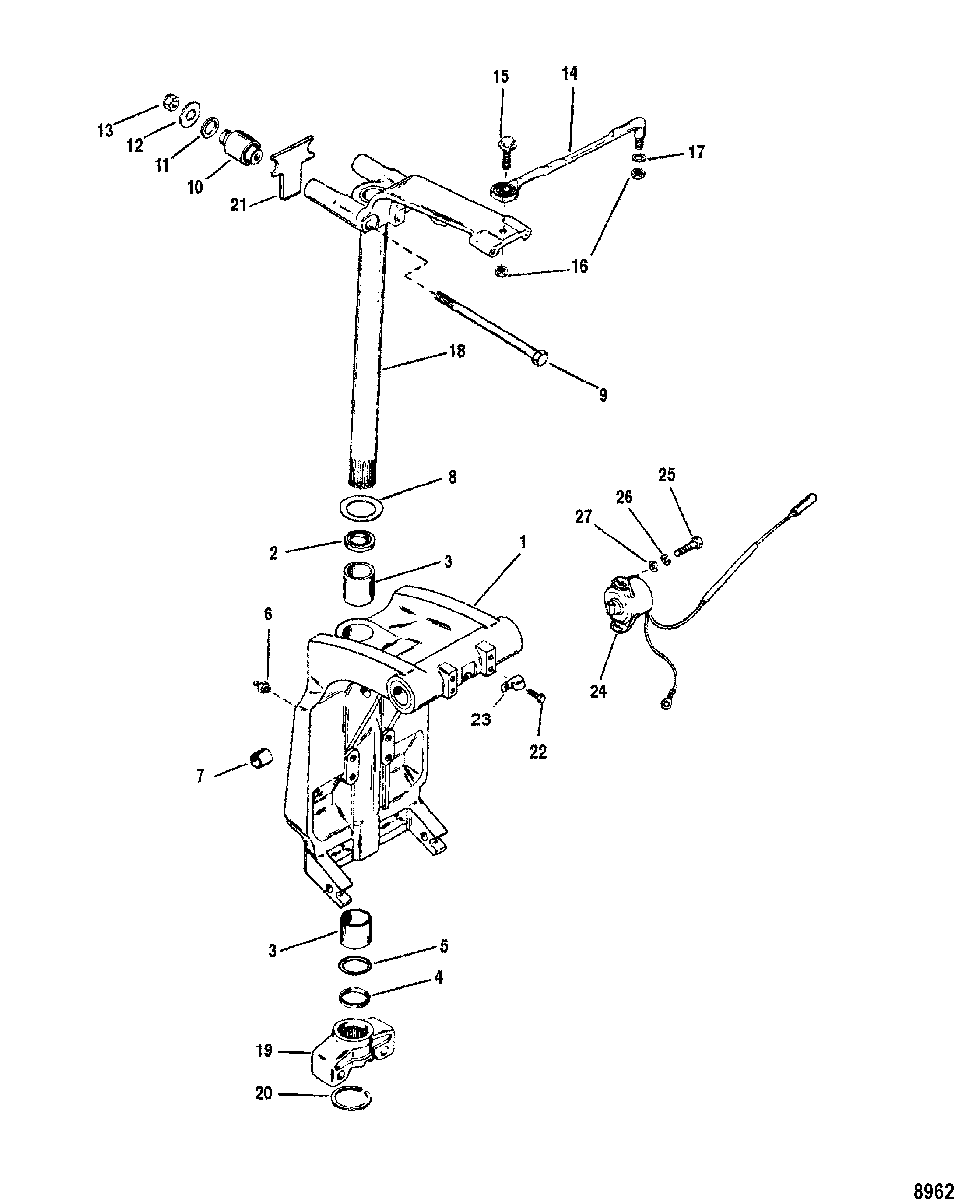

Swivel Bracket(Casting #1499-8710-7) для Mercury - V-150 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BERACKET ASSEMBLY (BLACK)
    SWIVEL BERACKET ASSEMBLY (BLACK)
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY (GRAY)
    SWIVEL BRACKET ASSEMBLY (GRAY)
  • 2
    26-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)
    SEAL, Oil, SWIVEL BRACKET (LOWER)
  • 3
    23-818764 BUSHING, SWIVEL BRACKET-LOWER AND UPPER
    BUSHING, SWIVEL BRACKET-LOWER AND UPPER
  • 4
    23-816039 SPACER
    SPACER
  • 5
    25-33504 O-RING
    O-RING
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 8
    12-816432 THRUST WASHER,
    THRUST WASHER,
  • 9
    10-8M0000491 SCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNT
    SCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNT
  • 10
    77326 MOUNT, RUBBER-UPPER (LONG)
    MOUNT, RUBBER-UPPER (LONG)
  • 10
    77326 MOUNT (X-LONG) (USE ON XR4/MAGNUM II)
    MOUNT (X-LONG) (USE ON XR4/MAGNUM II)
  • 11
    12-66921 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 12
    12-78688 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 13
    11-34933 NUT, (.437-20), UPPER MOUNT BOLT
    NUT, (.437-20), UPPER MOUNT BOLT
  • 14
    92876A12 STEERING LINK ASSEMBLY
    STEERING LINK ASSEMBLY
  • 15
    10-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
    SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
  • 16
    11-8M0042636 NUT, (.375-24), STEERING LINK SCREW
    NUT, (.375-24), STEERING LINK SCREW
  • 17
    12-34931 WASHER, (.406 x .734 x .063) SS, STEERING LINK TO STEERING ARM
    WASHER, (.406 x .734 x .063) SS, STEERING LINK TO STEERING ARM
  • 18
    17-8M0132731 SWIVEL PIN AND STEERING ARM (BLACK)
    SWIVEL PIN AND STEERING ARM (BLACK)
  • 18
    17-8M0132731 SWIVEL PIN AND STEERING ARM (GRAY)
    SWIVEL PIN AND STEERING ARM (GRAY)
  • 19
    878182T01 BOTTOM YOKE (BLACK)
    BOTTOM YOKE (BLACK)
  • 19
    878182T01 BOTTOM YOKE (GRAY)
    BOTTOM YOKE (GRAY)
  • 20
    53-67684 RETAINING RING, BOTTOM YOKE
    RETAINING RING, BOTTOM YOKE
  • 21
    88882 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • 22
    10-64014 SCREW, (.250-28 x .500), SWIVEL BRACKET
    SCREW, (.250-28 x .500), SWIVEL BRACKET
  • 23
    54-54457 J CLIP
    J CLIP
  • 24
    8M0098273 TRIM SENDER ASSEMBLY
    TRIM SENDER ASSEMBLY
  • 25
    10-852368 SCREW, (#10-24 x .750)
    SCREW, (#10-24 x .750)
  • 26
    13-26996 LOCKWASHER, (#10)
    LOCKWASHER, (#10)
  • 27
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
