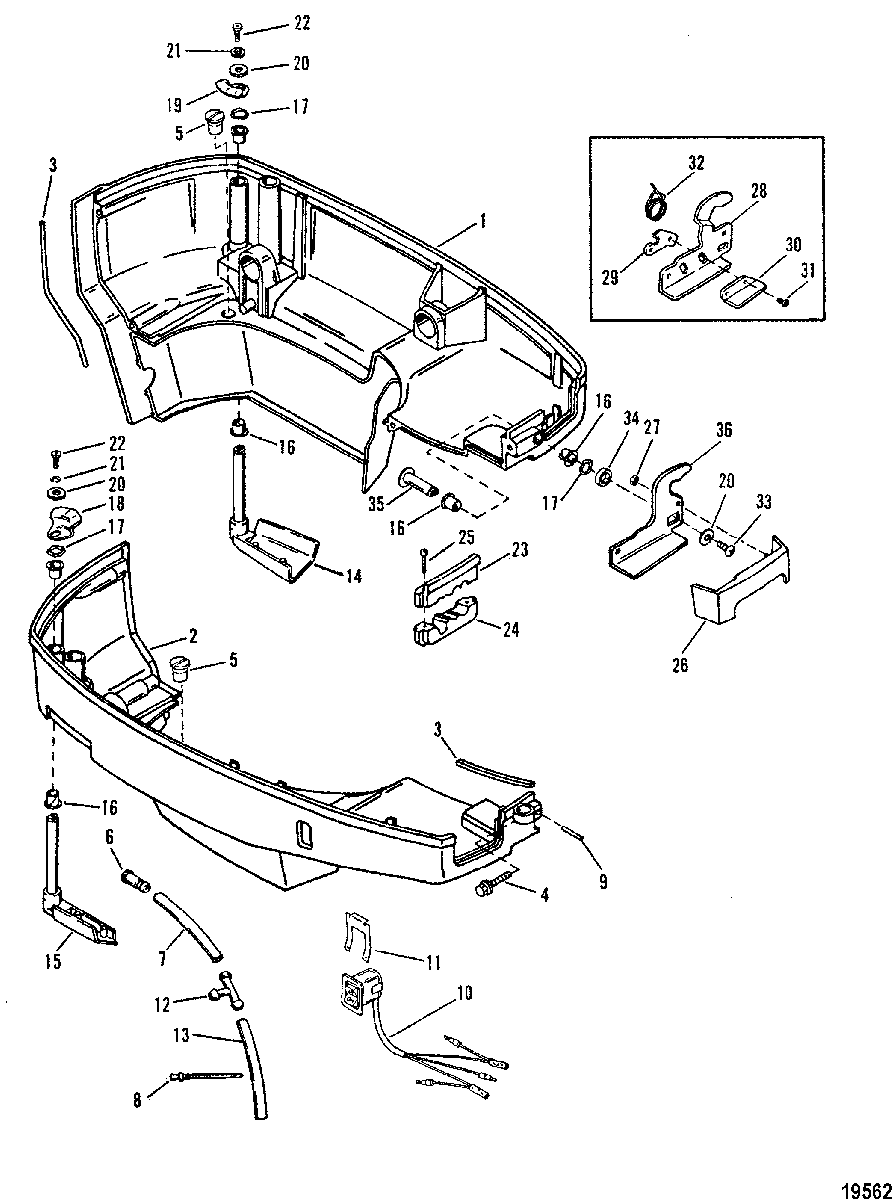

Bottom Cowl для Mercury - V-150 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    2197-9744A16 BOTTOM COWL ASSEMBLY (BLACK)
    (PORT)
    BOTTOM COWL ASSEMBLY (BLACK)
    (PORT)
  • 1
    2197-9744A16 BOTTOM COWL ASSEMBLY , Gray
    (PORT)
    BOTTOM COWL ASSEMBLY , Gray
    (PORT)
  • 2
    2197-9745A5 BOTTOM COWL ASSEMBLY (BLACK)
    (STARBOARD)
    BOTTOM COWL ASSEMBLY (BLACK)
    (STARBOARD)
  • 2
    2197-9745A6 BOTTOM COWL ASSEMBLY (GRAY)
    (STARBOARD)
    BOTTOM COWL ASSEMBLY (GRAY)
    (STARBOARD)
  • 3
    18701A1 SEAL KIT, BOTTOM COWLS-(PORT/STBD.)
    SEAL KIT, BOTTOM COWLS-(PORT/STBD.)
  • 4
    10-18699 SCREW, (.250-20 x 1.320), COWL (STARBOARD)
    SCREW, (.250-20 x 1.320), COWL (STARBOARD)
  • 5
    21-817519A1 CHECK VALVE, Drain (PORT/STBD.)
    CHECK VALVE, Drain (PORT/STBD.)
  • 6
    22-813613 FITTING, TELLTALE-STARBOARD
    FITTING, TELLTALE-STARBOARD
  • 7
    32-8M0108355 FUEL LINE, (57.00 Inches Bulk), TELLTALE-STARBOARD
    FUEL LINE, (57.00 Inches Bulk), TELLTALE-STARBOARD
  • 8
    54-816311T CABLE TIE, (8.00 Inches) (STARBOARD)
    CABLE TIE, (8.00 Inches) (STARBOARD)
  • 9
    17-815296 LOCK PIN (USE WHERE APPLICABLE)(STARBOARD)
    LOCK PIN (USE WHERE APPLICABLE)(STARBOARD)
  • 10
    87-8M0042301 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 11
    8M0032848 RETAINER
    RETAINER
  • 12
    22-815914 T-FITTING, TELLTALE
    T-FITTING, TELLTALE
  • 13
    32-77653101 HOSE, (24.500 Inches Bulk)
    HOSE, (24.500 Inches Bulk)
  • 14
    19648A2 HANDLE ASSEMBLY (BLACK)(PORT)
    HANDLE ASSEMBLY (BLACK)(PORT)
  • 14
    19648A2 HANDLE ASSEMBLY (GRAY)(PORT)
    HANDLE ASSEMBLY (GRAY)(PORT)
  • 15
    19647A3 HANDLE ASSEMBLY (BLACK)(STARBOARD)
    HANDLE ASSEMBLY (BLACK)(STARBOARD)
  • 15
    19647A3 HANDLE ASSEMBLY (GRAY)(STARBOARD)
    HANDLE ASSEMBLY (GRAY)(STARBOARD)
  • 16
    23-65830 NYLINER
    NYLINER
  • 17
    13-99611 WAVE WASHER
    WAVE WASHER
  • 18
    19369 PAWL (STARBOARD)
    PAWL (STARBOARD)
  • 19
    19370 PAWL (PORT)
    PAWL (PORT)
  • 20
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 21
    13-26992 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 22
    10-73286 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 23
    54-19749 CLAMP, UPPER (W/O POWER STEERING)
    CLAMP, UPPER (W/O POWER STEERING)
  • 23
    54-197491 CLAMP, UPPER (WITH POWER STEERING)
    CLAMP, UPPER (WITH POWER STEERING)
  • 24
    54-197481 CLAMP, LOWER
    CLAMP, LOWER
  • 25
    10-92799 SCREW, (#10-16 x 1.12)
    SCREW, (#10-16 x 1.12)
  • 26
    18872A1 COVER ASSEMBLY (BLACK)
    COVER ASSEMBLY (BLACK)
  • 26
    18872A1 COVER ASSEMBLY (GRAY)
    COVER ASSEMBLY (GRAY)
  • 27
    11-8136921 LOCK NUT
    LOCK NUT
  • 28
    NSS NOT SOLD SEPARATE, Front Handle
    (REPLACE WITH 813076A2)
    NOT SOLD SEPARATE, Front Handle
    (REPLACE WITH 813076A2)
  • 29
    NSS NOT SOLD SEPARATE, Handle
    (REPLACE WITH 813076A2)
    NOT SOLD SEPARATE, Handle
    (REPLACE WITH 813076A2)
  • 30
    NSS NOT SOLD SEPARATE, Lock-Handle
    (REPLACE WITH 813076A2)
    NOT SOLD SEPARATE, Lock-Handle
    (REPLACE WITH 813076A2)
  • 31
    NSS NOT SOLD SEPARATE, Screw
    (REPLACE WITH 813076A2)
    NOT SOLD SEPARATE, Screw
    (REPLACE WITH 813076A2)
  • 32
    NSS NOT SOLD SEPARATE, Spring
    (REPLACE WITH 813076A2)
    NOT SOLD SEPARATE, Spring
    (REPLACE WITH 813076A2)
  • 33
    10-18192 SCREW, (.25-20 x .62)
    SCREW, (.25-20 x .62)
  • 34
    23-19666 BUSHING
    BUSHING
  • 35
    18727 ROD
    ROD
  • 36
    8130764 FRONT HANDLE
    FRONT HANDLE
