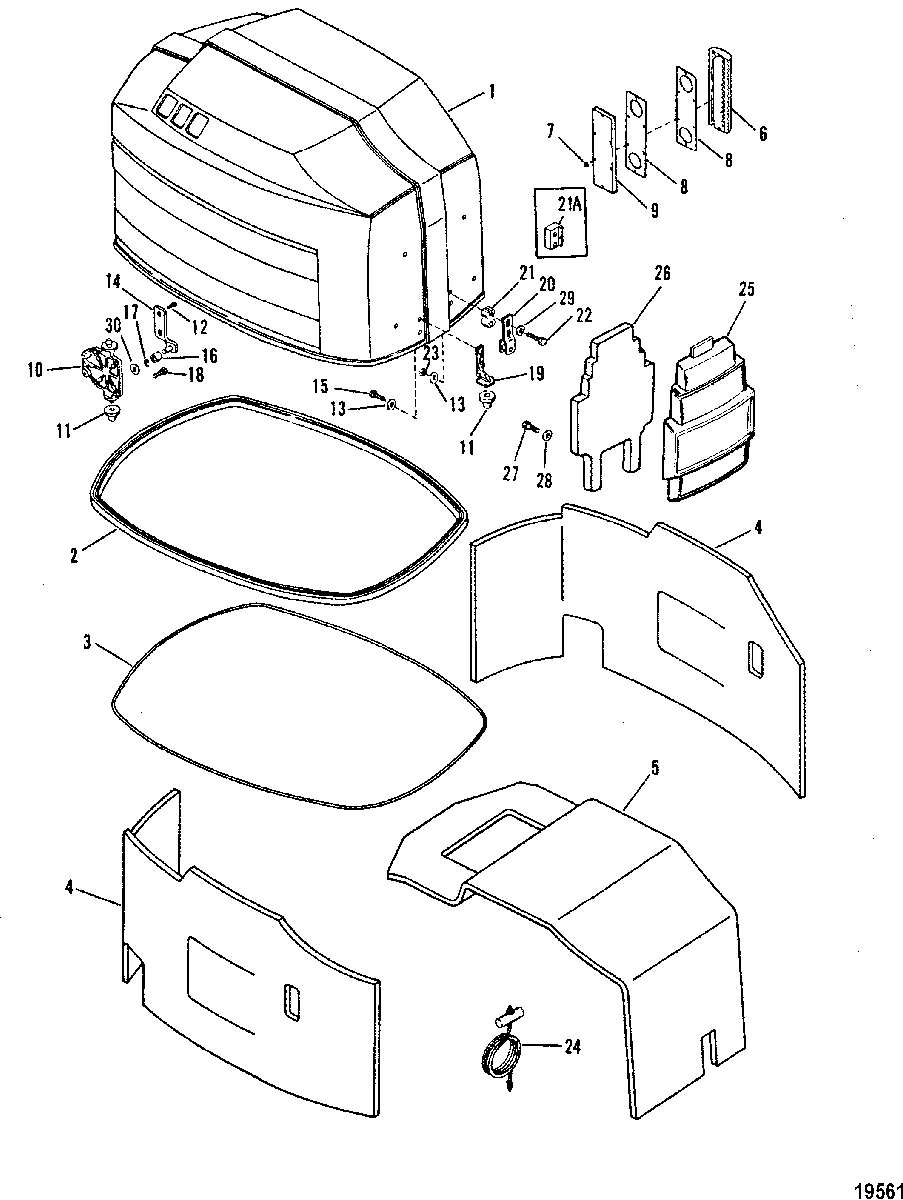

Top Cowl and Front Shield для Mercury - V-150 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    2196-9742T88 TOP COWL ASSEMBLY (BLACK)
    (135/150/175/200)
    TOP COWL ASSEMBLY (BLACK)
    (135/150/175/200)
  • 1
    2196-9743T11 TOP COWL ASSEMBLY (GRAY)
    (135/150/175/200)
    TOP COWL ASSEMBLY (GRAY)
    (135/150/175/200)
  • 1
    2196-9742T90 TOP COWL ASSEMBLY (BLACK)
    (XR4)
    TOP COWL ASSEMBLY (BLACK)
    (XR4)
  • 1
    2196-9742A91 TOP COWL ASSEMBLY (GRAY)
    (MAGNUM II)
    TOP COWL ASSEMBLY (GRAY)
    (MAGNUM II)
  • 2
    812784 SEAL
    SEAL
  • 3
    815478 SEAL
    SEAL
  • 4
    814823 SOUND BLANKET (SIDE)
    (USE WITHOUT DEFLECTOR)
    SOUND BLANKET (SIDE)
    (USE WITHOUT DEFLECTOR)
  • 5
    814837 SOUND BLANKET
    (USE WITHOUT DEFLECTOR)
    SOUND BLANKET
    (USE WITHOUT DEFLECTOR)
  • 4/5
    814823A1 SOUND BLANKT KIT
    (USE W/ DEFLECTOR)
    SOUND BLANKT KIT
    (USE W/ DEFLECTOR)
  • 6
    17196A1 SHIELD, AIR INLET
    (XR4/MAGNUM II)
    SHIELD, AIR INLET
    (XR4/MAGNUM II)
  • 7
    11-11316 SPEED/NUT
    (XR4/MAGNUM II)
    SPEED/NUT
    (XR4/MAGNUM II)
  • 8
    17238 SEAL, AIR INLET
    (XR4/MAGNUM II)
    SEAL, AIR INLET
    (XR4/MAGNUM II)
  • 9
    17194 SHIELD, AIR INLET (PORT)
    (XR4/MAGNUM II)
    SHIELD, AIR INLET (PORT)
    (XR4/MAGNUM II)
  • 9
    17195 SHIELD, AIR INLET (STBD)
    (XR4/MAGNUM II)
    SHIELD, AIR INLET (STBD)
    (XR4/MAGNUM II)
  • 10
    184741 BRACKET, REAR
    BRACKET, REAR
  • 11
    25-18506001 GROMMET
    GROMMET
  • 12
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 13
    12-56720 WASHER, (.330 x .750 x .060)
    WASHER, (.330 x .750 x .060)
  • 14
    813096A2 HOOK
    HOOK
  • 15
    10-73286 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 16
    815263 ROLLER
    ROLLER
  • 17
    53-13194 RING, Retaining
    RING, Retaining
  • 18
    10-816992 SCREW
    SCREW
  • 19
    187021 LOCATOR
    LOCATOR
  • 20
    893763 BRACKET
    BRACKET
  • 21
    813076A2 SPACER
    SPACER
  • 21A
    816838 SPACER
    SPACER
  • 22
    10-31984 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 22
    10-69267 SCREW, (.312-18 x 1.750)
    SCREW, (.312-18 x 1.750)
  • 23
    11-815848 NUT, (.312)
    NUT, (.312)
  • 24
    47341A11 ROPE AND HANDLE KIT (FOR MANUAL STARTING)
    ROPE AND HANDLE KIT (FOR MANUAL STARTING)
  • 25
    18755A1 FRONT SHIELD ASSEMBLY (BLACK)
    FRONT SHIELD ASSEMBLY (BLACK)
  • 25
    18755A2 FRONT SHIELD ASSEMBLY (GRAY)
    FRONT SHIELD ASSEMBLY (GRAY)
  • 26
    813562 SEAL (OLD DESIGN)
    SEAL (OLD DESIGN)
  • 27
    10-77137 SCREW, (.190-16 X .62)
    SCREW, (.190-16 X .62)
  • 28
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 29
    12-8M0042642 WASHER, (.323 x .563 x .063)
    WASHER, (.323 x .563 x .063)
  • 30
    12-36001 WASHER
    WASHER
