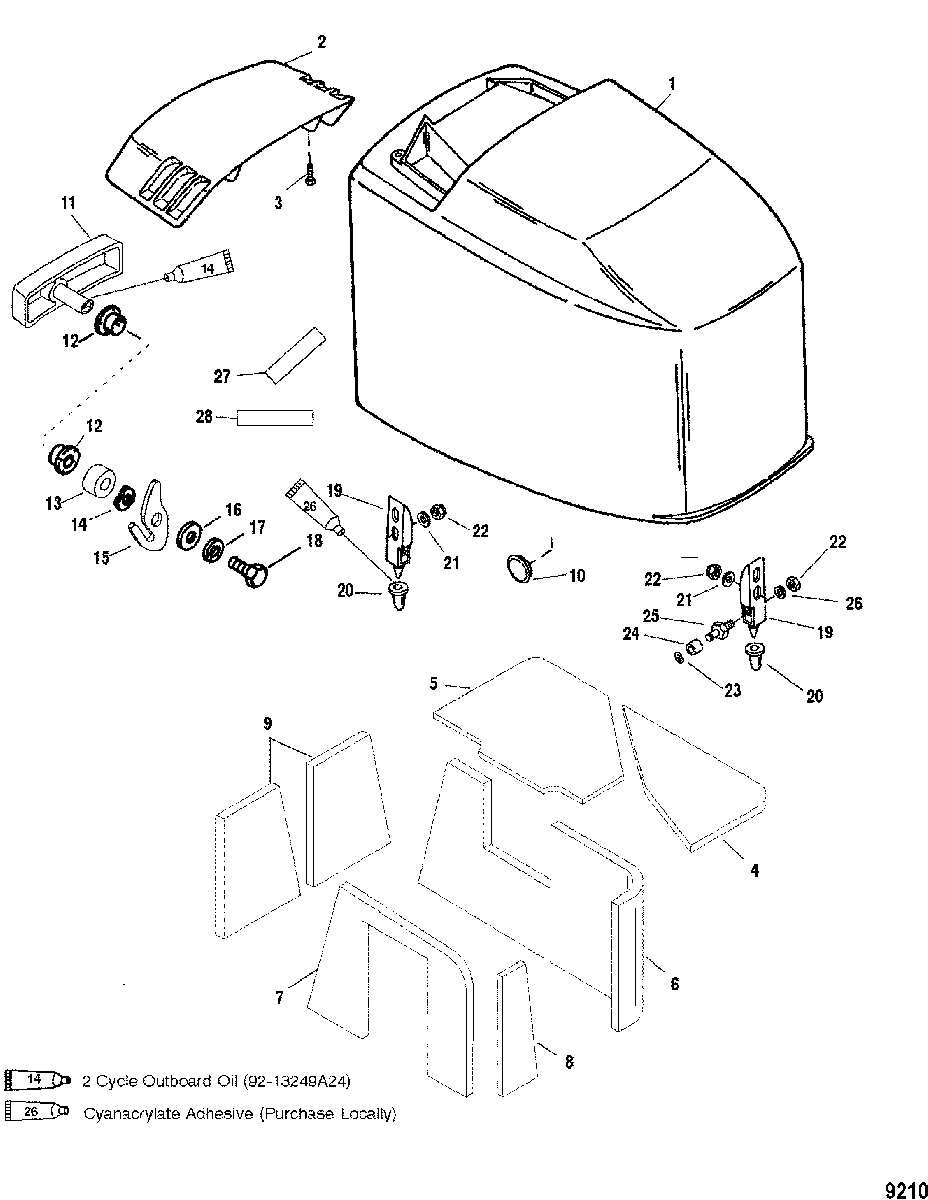

Top Cowl для Mercury - V-150 DFI (2.5L) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    4021-852552T3 TOP COWL ASSEMBLY
    (BLACK)
    TOP COWL ASSEMBLY
    (BLACK)
  • 1
    4021-852552T4 TOP COWL ASSEMBLY
    (SILVER)
    TOP COWL ASSEMBLY
    (SILVER)
  • 2
    821256T03 INLET, Air - Black
    (BLACK)
    INLET, Air - Black
    (BLACK)
  • 2
    821256T2 INLET, Air - Silver
    (SILVER)
    INLET, Air - Silver
    (SILVER)
  • 3
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 4
    854607A1 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 5
    NSS NOT SOLD SEPARATE, Sound Blanket-Top Back
    NOT SOLD SEPARATE, Sound Blanket-Top Back
  • 6
    NSS NOT SOLD SEPARATE, Sound Blanket-Port
    NOT SOLD SEPARATE, Sound Blanket-Port
  • 7
    NSS NOT SOLD SEPARATE, Sound Blanket-Starboard
    NOT SOLD SEPARATE, Sound Blanket-Starboard
  • 8
    NSS NOT SOLD SEPARATE, Sound Blankek-Front
    NOT SOLD SEPARATE, Sound Blankek-Front
  • 9
    NSS NOT SOLD SEPARATE, Sound Blanket-Back
    NOT SOLD SEPARATE, Sound Blanket-Back
  • 10
    19-823865 CAP PLUG
    CAP PLUG
  • 11
    831207A16 HANDLE ASSEMBLY, Black
    (BLACK)
    HANDLE ASSEMBLY, Black
    (BLACK)
  • 11
    831207A16 HANDLE ASSEMBLY, Silver
    (SILVER)
    HANDLE ASSEMBLY, Silver
    (SILVER)
  • 12
    23-812707 BUSHING
    BUSHING
  • 13
    23-831214 SPACER
    SPACER
  • 14
    13-12134 WASHER, Wave
    WASHER, Wave
  • 15
    8M0001081 CAM, Latch Shaft
    CAM, Latch Shaft
  • 16
    12-4002316 WASHER
    WASHER
  • 17
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 18
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 19
    8M0036792 BRACKET, Front
    BRACKET, Front
  • 20
    815477 BUMPER, Latch
    BUMPER, Latch
  • 21
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 22
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 23
    53-8237951 RING, Retaining
    RING, Retaining
  • 24
    815263 ROLLER
    ROLLER
  • 25
    8155381 PIN, Roll
    PIN, Roll
  • 26
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 27
    NSS NOT SOLD SEPARATE, Decal-Counter Rotation
    NOT SOLD SEPARATE, Decal-Counter Rotation
  • 28
    NSS NOT SOLD SEPARATE, Decal-Break In
    NOT SOLD SEPARATE, Decal-Break In
