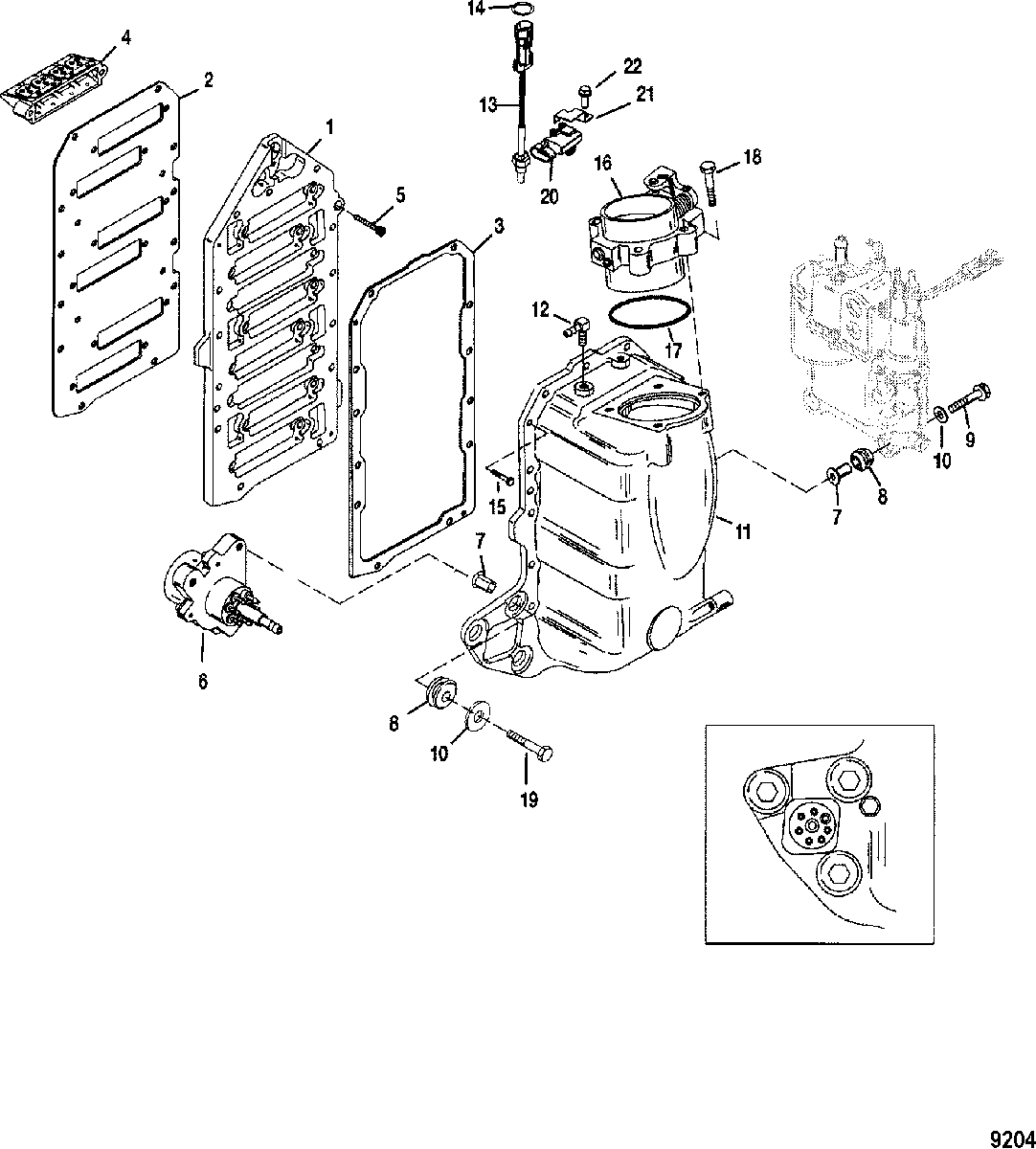

Air Handler Components для Mercury - V-150 DFI (2.5L) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • -
    855633T21 AIR HANDLER ASSEMBLY
    (135/150)
    AIR HANDLER ASSEMBLY
    (135/150)
  • -
    858703T3 AIR HANDLER ASSEMBLY
    (115)
    AIR HANDLER ASSEMBLY
    (115)
  • 1
    855420T02 ADAPTOR PLATE KIT
    ADAPTOR PLATE KIT
  • 2
    27-146973 GASKET
    GASKET
  • 3
    27-8500581 GASKET
    GASKET
  • 4
    855952T4 REED BLOCK
    (115)
    REED BLOCK
    (115)
  • 4
    855952T2 REED BLOCK
    (135/150)
    REED BLOCK
    (135/150)
  • 5
    10-55715 SCREW, (.250-20 x .880)
    SCREW, (.250-20 x .880)
  • 6
    8M0128080 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 7
    23-855364 BUSHING
    BUSHING
  • 8
    25-855362001 GROMMET
    GROMMET
  • 9
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 10
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 11
    850248A2 PLENUM KIT, Air
    PLENUM KIT, Air
  • 12
    22-8554242 ELBOW
    ELBOW
  • 13
    889575 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 14
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 15
    10-4001987 SCREW, (M4 x 16)
    SCREW, (M4 x 16)
  • 16
    855422A2 THROTTLE BODY KIT
    (115)
    THROTTLE BODY KIT
    (115)
  • 16
    855422A1 THROTTLE BODY KIT
    (135/150)
    THROTTLE BODY KIT
    (135/150)
  • 17
    25-855423 O-RING
    O-RING
  • 18
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 19
    10-81893430 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 20
    854445 SENSOR, MAP
    SENSOR, MAP
  • 21
    884522 BRACKET
    BRACKET
  • 22
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • -
    854008T00 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
