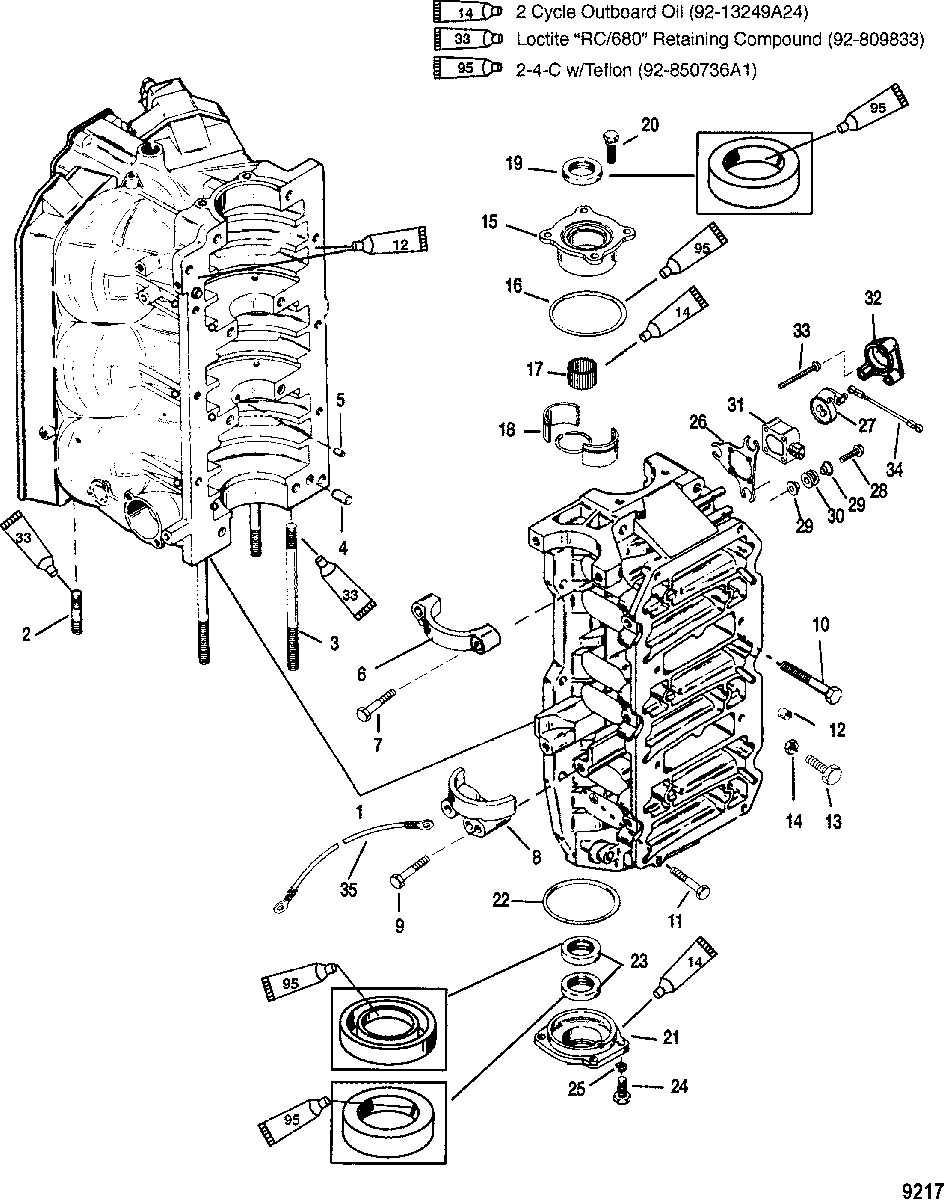

Cylinder Block and End Caps для Mercury - V-150 DFI (2.5L) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    884-828340A16 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    16-8M0034455 STUD, Powerhead (1-3/4 IN.)
    STUD, Powerhead (1-3/4 IN.)
  • 3
    16-670654 STUD, (.375 x 5.620)
    (5-1/2 Inches)
    STUD, (.375 x 5.620)
    (5-1/2 Inches)
  • 3
    16-8M0034454 STUD, (.375 x 6.870)
    (6-3/4 Inches)
    STUD, (.375 x 6.870)
    (6-3/4 Inches)
  • 4
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 5
    17-8M0036405 PIN (BEARING RACE)
    PIN (BEARING RACE)
  • 6
    8M0111325 COVER
    COVER
  • 7
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 8
    76867 COVER (BOTTOM)
    COVER (BOTTOM)
  • 9
    10-828214 SCREW, (.312-18 x 2.00) Hex Flange
    SCREW, (.312-18 x 2.00) Hex Flange
  • 10
    10-66717 SCREW, (.375-16 x 3.250)
    SCREW, (.375-16 x 3.250)
  • 11
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 12
    26852 CAP, Nylon
    CAP, Nylon
  • 13
    10-856832 SCREW, (.250-20 x 1.750)
    SCREW, (.250-20 x 1.750)
  • 14
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 15
    1159-832760T1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 16
    25-54029 O-RING, (2.800 x .103)
    O-RING, (2.800 x .103)
  • 17
    31-16756A4 BEARING KIT
    BEARING KIT
  • 18
    NSS NOT SOLD SEPARATE, Bearing Race
    NOT SOLD SEPARATE, Bearing Race
  • 19
    26-41953 SEAL
    SEAL
  • 20
    10-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00)
    SCREW WITH LOCKWASHER, (.312-18 x 1.00)
  • 21
    1156-7809T1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 22
    25-62700 O-RING, (3.237 x .103)
    O-RING, (3.237 x .103)
  • 23
    26-41953 SEAL
    SEAL
  • 24
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 25
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 26
    8538821 BRACKET
    BRACKET
  • 27
    8519371 LEVER, Throttle Position Indicator
    LEVER, Throttle Position Indicator
  • 28
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 29
    23-8318701 BUSHING
    BUSHING
  • 30
    25-834985 GROMMET
    GROMMET
  • 31
    8M6005165 INDICATOR, Throttle Position (INSIDE)
    INDICATOR, Throttle Position (INSIDE)
  • 32
    8582261 TPS COVER
    TPS COVER
  • 33
    10-8508281 SCREW, (#10-32 x 2.00)
    SCREW, (#10-32 x 2.00)
  • 34
    8M0084738 LINK, Throttle
    LINK, Throttle
  • 35
    84-88439A26 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • -
    27-8M0046714 GASKET SET, Engine
    GASKET SET, Engine
  • -
    854008T00 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
