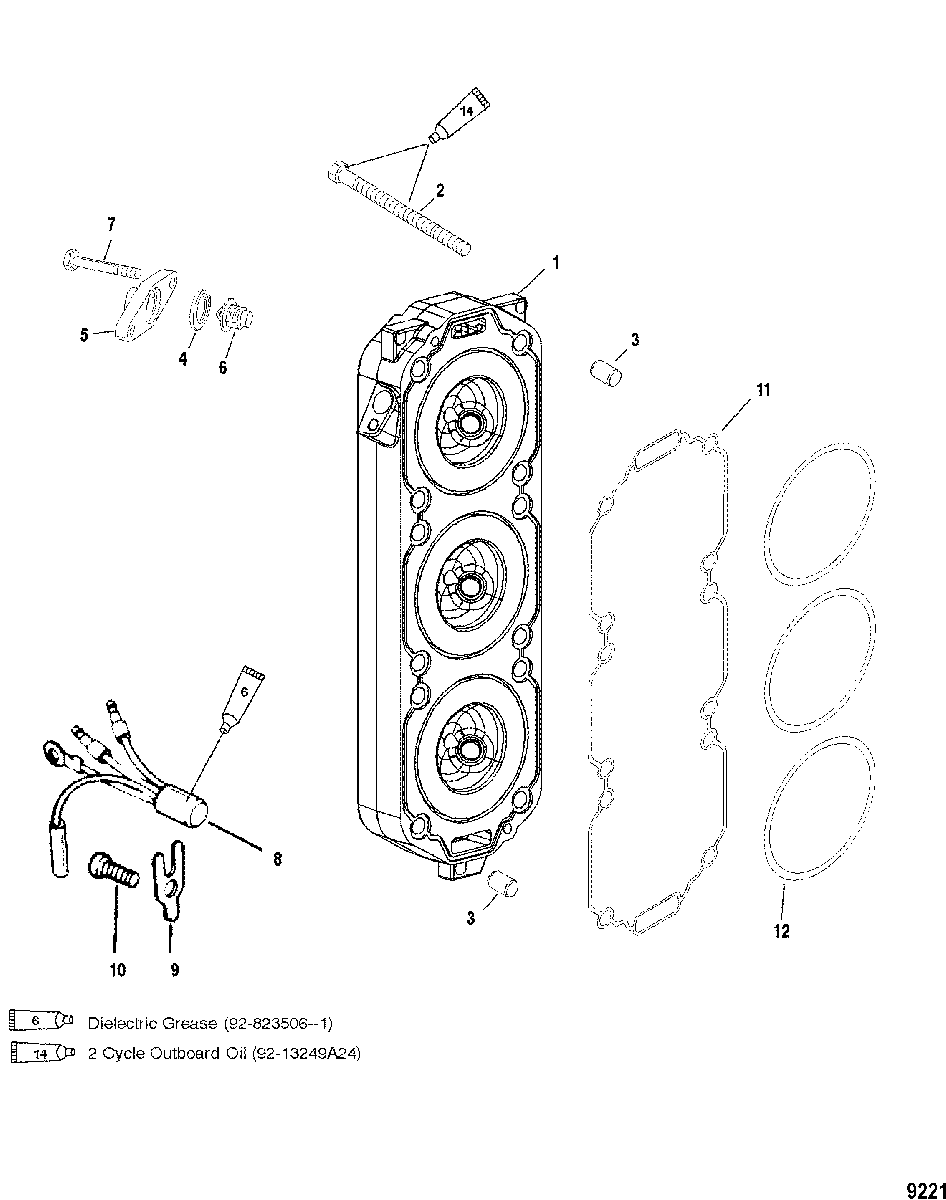

Cylinder Head для Mercury - V-150 DFI (2.5L) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    858405T2 CYLINDER HEAD (PORT)
    CYLINDER HEAD (PORT)
  • 1
    858406T2 CYLINDER HEAD (STARBOARD)
    CYLINDER HEAD (STARBOARD)
  • 2
    10-832971 SCREW, (.375-16 x 3.00) (2 IN)
    SCREW, (.375-16 x 3.00) (2 IN)
  • 3
    17-63779 PIN, Dowel (.250 x .625)
    PIN, Dowel (.250 x .625)
  • 4
    27-62386001 GASKET
    GASKET
  • 5
    8M0039353 COVER
    COVER
  • 6
    833072003 THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
    THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
  • 7
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 8
    13536A14 SENSOR ASSEMBLY, Temperature (STARBOARD)
    SENSOR ASSEMBLY, Temperature (STARBOARD)
  • 9
    137151 RETAINER
    RETAINER
  • 10
    10-81893412 SCREW, (M8 x 12)
    SCREW, (M8 x 12)
  • 11
    8584521 SEAL
    SEAL
  • 12
    8597721 SEAL
    SEAL
  • -
    27-8M0046714 GASKET SET, Engine
    GASKET SET, Engine
  • -
    854008T00 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
