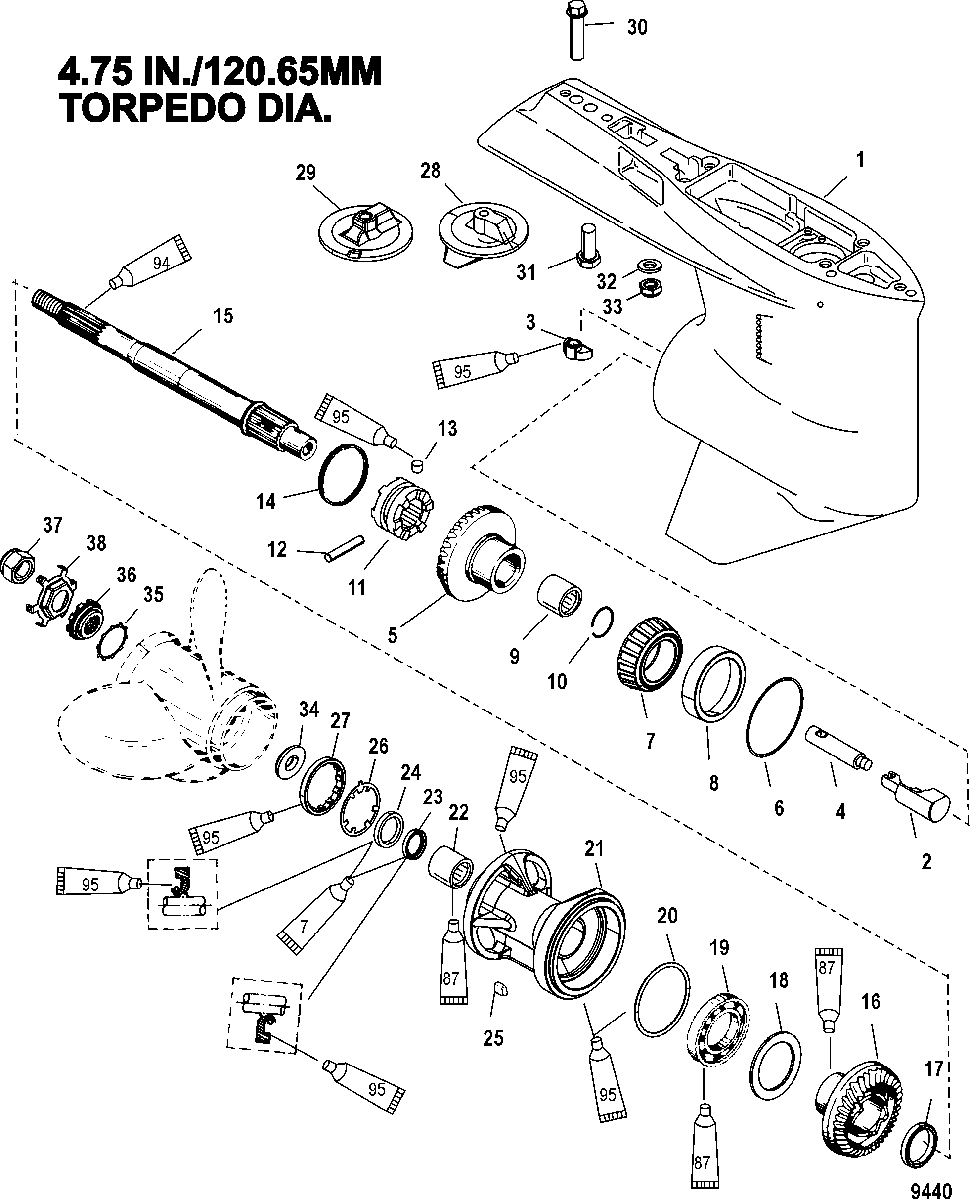

Gear Housing, Propeller Shaft - Standard Rotation для Mercury - V-150 DFI (2.5L) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • -
    1647-9148T84 GEAR HOUSING ASSEMBLY
    (Black-Long-Standard-1.87:1)
    GEAR HOUSING ASSEMBLY
    (Black-Long-Standard-1.87:1)
  • -
    1647-9148T84 GEAR HOUSING ASSEMBLY
    (Gray-Long-Standard-1.87:1)
    GEAR HOUSING ASSEMBLY
    (Gray-Long-Standard-1.87:1)
  • -
    1647-9148T85 GEAR HOUSING ASSEMBLY
    (Black X-Long-Standard-1.87:1)
    GEAR HOUSING ASSEMBLY
    (Black X-Long-Standard-1.87:1)
  • -
    1647-9148T85 GEAR HOUSING ASSEMBLY
    (Gray X-Long-Standard-1.87:1)
    GEAR HOUSING ASSEMBLY
    (Gray X-Long-Standard-1.87:1)
  • -
    1647-9148T81 GEAR HOUSING ASSEMBLY
    (Black-Long-Standard-2:1)
    GEAR HOUSING ASSEMBLY
    (Black-Long-Standard-2:1)
  • -
    1647-9148T81 GEAR HOUSING ASSEMBLY
    (Gray-Long-Standard-2:1)
    GEAR HOUSING ASSEMBLY
    (Gray-Long-Standard-2:1)
  • -
    1647-9148T82 GEAR HOUSING ASSEMBLY
    (Black-X-Long-Standard-2:1)
    GEAR HOUSING ASSEMBLY
    (Black-X-Long-Standard-2:1)
  • -
    1647-9148T82 GEAR HOUSING ASSEMBLY
    (Gray-X-Long-Standard-2:1)
    GEAR HOUSING ASSEMBLY
    (Gray-X-Long-Standard-2:1)
  • 1
    1647-9148T93 GEAR HOUSING ASSEMBLY
    (Black)
    GEAR HOUSING ASSEMBLY
    (Black)
  • 1
    1647-9148T93 GEAR HOUSING ASSEMBLY
    (Gray)
    GEAR HOUSING ASSEMBLY
    (Gray)
  • 2
    89594A1 FOLLOWER ASSEMBLY
    FOLLOWER ASSEMBLY
  • 3
    789562 SHIFT CAM
    SHIFT CAM
  • 4
    828287 ROD
    ROD
  • 5
    43-803615T2 GEAR SET
    (1.87:1 - 15/28)(150)
    GEAR SET
    (1.87:1 - 15/28)(150)
  • 5
    43-803612T2 GEAR ASSEMBLY, Forward
    (2:1 - 14/28)(135)
    GEAR ASSEMBLY, Forward
    (2:1 - 14/28)(135)
  • 6
    15-8M0063266 SHIM SET
    SHIM SET
  • 7
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 8
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 9
    31-30895T BEARING, Needle
    BEARING, Needle
  • 10
    53-856823 RING, Retaining
    RING, Retaining
  • 11
    52-859340T SLIDING CLUTCH
    SLIDING CLUTCH
  • 12
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 13
    17-828356 PIN, Detent
    PIN, Detent
  • 14
    24-30893 SPRING
    SPRING
  • 15
    44-94148 PROPELLER SHAFT
    PROPELLER SHAFT
  • 16
    43-828175A1 GEAR ASSEMBLY, Reverse - 15/28
    (150)
    GEAR ASSEMBLY, Reverse - 15/28
    (150)
  • 16
    43-828177A1 GEAR ASSEMBLY, Reverse - 14/28
    (135)
    GEAR ASSEMBLY, Reverse - 14/28
    (135)
  • 17
    23-824108 SPACER
    SPACER
  • 18
    681001 RING, Thrust
    RING, Thrust
  • 19
    30-88957T BEARING ASSEMBLY, Ball
    BEARING ASSEMBLY, Ball
  • 20
    25-31534 O-RING
    O-RING
  • 21
    43567T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 22
    31-30956T BEARING, Needle
    BEARING, Needle
  • 23
    26-14077 SEAL, Oil (INSIDE)
    SEAL, Oil (INSIDE)
  • 24
    26-76868 SEAL (OUTSIDE)
    SEAL (OUTSIDE)
  • 25
    28-30281 KEY
    KEY
  • 26
    14-79447 TAB WASHER
    TAB WASHER
  • 27
    8M2000347 RETAINER
    RETAINER
  • 28
    31640T07 TRIM TAB
    TRIM TAB
  • 29
    97-76214Q5 ANODE KIT
    ANODE KIT
  • 30
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 31
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 32
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 33
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 34
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 35
    13-423511 LOCKWASHER, Toothed
    LOCKWASHER, Toothed
  • 36
    12-31211Q03 WASHER, Splined
    WASHER, Splined
  • 37
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • 38
    14-816629Q TAB WASHER
    TAB WASHER
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
  • -
    27-8M0046714 GASKET SET
    GASKET SET
