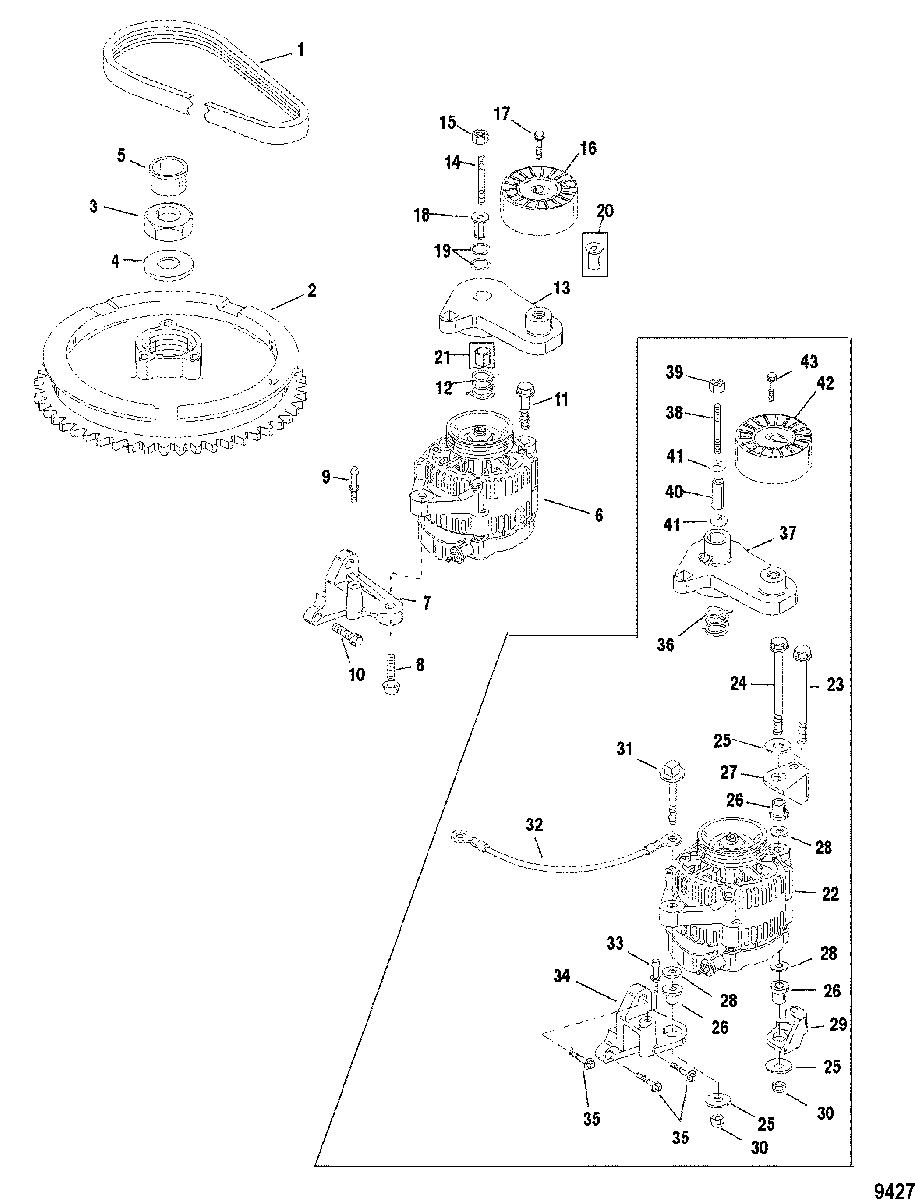

Flywheel/Alternator для Mercury - V-150 DFI (2.5L) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    57-828507Q4 BELT
    BELT
  • 2
    281-834936T6 FLYWHEEL
    FLYWHEEL
  • 3
    11-52901 NUT, (.625-18)
    NUT, (.625-18)
  • 4
    12-33001 WASHER, (.641 x 1.250 x .190)
    WASHER, (.641 x 1.250 x .190)
  • 5
    19-45907 PLUG, Yellow
    PLUG, Yellow
  • 6
    8M0064021 ALTERNATOR
    (NON RUBBER MOUNT)
    ALTERNATOR
    (NON RUBBER MOUNT)
  • 7
    832080M2 BRACKET, Alternator
    (NON RUBBER MOUNT)
    BRACKET, Alternator
    (NON RUBBER MOUNT)
  • 8
    10-81893430 SCREW, (M8 x 30)
    (NON RUBBER MOUNT)
    SCREW, (M8 x 30)
    (NON RUBBER MOUNT)
  • 9
    8215832 PIN
    (NON RUBBER MOUNT)
    PIN
    (NON RUBBER MOUNT)
  • 10
    10-812618 SCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch
    (NON RUBBER MOUNT)
    SCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch
    (NON RUBBER MOUNT)
  • 11
    10-82446180 SCREW, (M10 x 80)
    (NON RUBBER MOUNT)
    SCREW, (M10 x 80)
    (NON RUBBER MOUNT)
  • 12
    24-855798001 SPRING
    (NON RUBBER MOUNT)
    SPRING
    (NON RUBBER MOUNT)
  • 13
    850291T3 BELT TENSIONER
    (DESIGN I)
    BELT TENSIONER
    (DESIGN I)
  • 14
    16-8557281 STUD (M10 X 54)
    (DESIGN I)
    STUD (M10 X 54)
    (DESIGN I)
  • 15
    11-826292 NUT, (M10) Brass/Nickel Plated
    (DESIGN I)
    NUT, (M10) Brass/Nickel Plated
    (DESIGN I)
  • 16
    8M6005030 PULLEY
    (DESIGN I)
    PULLEY
    (DESIGN I)
  • 17
    10-4010835 SCREW, (M10 x 35) Hex Flange - Stainless Steel
    (DESIGN I)
    SCREW, (M10 x 35) Hex Flange - Stainless Steel
    (DESIGN I)
  • 18
    23-856030A2 BUSHING KIT
    (DESIGN II)
    BUSHING KIT
    (DESIGN II)
  • 19
    25-85045 O-RING, (.551 x .070)
    (DESIGN II)
    O-RING, (.551 x .070)
    (DESIGN II)
  • 20
    NLA No Longer Available
    (ORDER 23-856030A2)(DESIGN I)
    No Longer Available
    (ORDER 23-856030A2)(DESIGN I)
  • 21
    23-42139 BUSHING
    (DESIGN I)
    BUSHING
    (DESIGN I)
  • 22
    8M0064021 ALTERNATOR
    (RUBBER MOUNT)
    ALTERNATOR
    (RUBBER MOUNT)
  • 23
    10-8M0012503 SCREW, (M10 x 100) Hex Flange - Stainless Steel
    (RUBBER MOUNT)
    SCREW, (M10 x 100) Hex Flange - Stainless Steel
    (RUBBER MOUNT)
  • 24
    10-40108120 SCREW, (M10 x 120) Hex Flange - Stainless Steel
    (RUBBER MOUNT)
    SCREW, (M10 x 120) Hex Flange - Stainless Steel
    (RUBBER MOUNT)
  • 25
    12-8M0042641 WASHER, (.390 x 1.00 x .06)
    (RUBBER MOUNT)
    WASHER, (.390 x 1.00 x .06)
    (RUBBER MOUNT)
  • 26
    23-856975 MOUNT
    (RUBBER MOUNT)
    MOUNT
    (RUBBER MOUNT)
  • 27
    858391T01 BRACKET
    (RUBBER MOUNT)
    BRACKET
    (RUBBER MOUNT)
  • 28
    12-845998 WASHER, (.406 x 1.250 x .089)
    (RUBBER MOUNT)
    WASHER, (.406 x 1.250 x .089)
    (RUBBER MOUNT)
  • 29
    858393T01 BRACKET
    (RUBBER MOUNT)
    BRACKET
    (RUBBER MOUNT)
  • 30
    11-826292 NUT, (M10) Brass/Nickel Plated
    (RUBBER MOUNT)
    NUT, (M10) Brass/Nickel Plated
    (RUBBER MOUNT)
  • 31
    10-82446155 SCREW, (M10 x 55)
    (RUBBER MOUNT)
    SCREW, (M10 x 55)
    (RUBBER MOUNT)
  • 32
    84-856583T2 CABLE ASSEMBLY
    (RUBBER MOUNT)
    CABLE ASSEMBLY
    (RUBBER MOUNT)
  • 33
    8215832 PIN
    (RUBBER MOUNT)
    PIN
    (RUBBER MOUNT)
  • 34
    857142T BRACKET
    (RUBBER MOUNT)
    BRACKET
    (RUBBER MOUNT)
  • 35
    10-812618 SCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch
    (RUBBER MOUNT)
    SCREW, (.312-18 x 1.00) Stainless Steel With Nylon Patch
    (RUBBER MOUNT)
  • 36
    24-855798001 SPRING
    (DESIGN II)
    SPRING
    (DESIGN II)
  • 37
    856815T2 ARM TENSIONER ASSEMBLY
    (DESIGN II)
    ARM TENSIONER ASSEMBLY
    (DESIGN II)
  • 38
    16-8M0034457 STUD, (M10 x 85)
    (DESIGN II)
    STUD, (M10 x 85)
    (DESIGN II)
  • 39
    11-826292 NUT, (M10) Brass/Nickel Plated
    (DESIGN II)
    NUT, (M10) Brass/Nickel Plated
    (DESIGN II)
  • 40
    23-8568941 BUSHING
    (DESIGN II)
    BUSHING
    (DESIGN II)
  • 41
    12-4002320 WASHER
    (DESIGN II)
    WASHER
    (DESIGN II)
  • 42
    8M6005030 PULLEY
    (DESIGN II)
    PULLEY
    (DESIGN II)
  • 43
    10-4010835 SCREW, (M10 x 35) Hex Flange - Stainless Steel
    (DESIGN II)
    SCREW, (M10 x 35) Hex Flange - Stainless Steel
    (DESIGN II)
