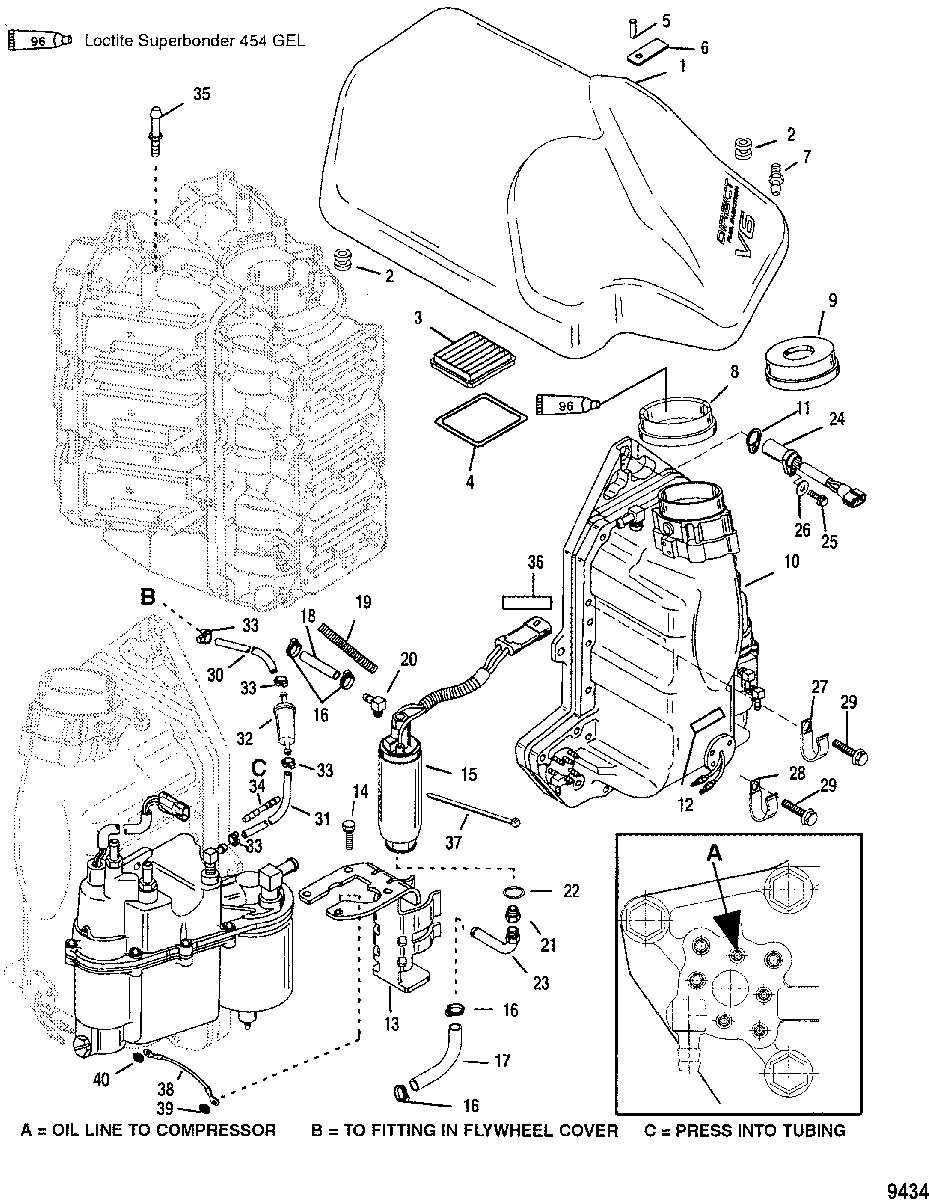

Air Handler для Mercury - V-150 DFI (2.5L) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    827325A7 COVER ASSEMBLY
    COVER ASSEMBLY
  • 2
    25-821555001 GROMMET
    GROMMET
  • 3
    35-853333T FILTER, Air
    FILTER, Air
  • 4
    853352 COVER
    COVER
  • 5
    17-855590 RIVET
    RIVET
  • 6
    854633 RETAINER
    RETAINER
  • 7
    22-64705 FITTING
    FITTING
  • 8
    25-855613 GROMMET
    (150)
    GROMMET
    (150)
  • 9
    25-8556131 GROMMET
    (135)
    GROMMET
    (135)
  • 10
    855633A15 AIR HANDLER ASSEMBLY
    (SEE BREAKDOWN ON AIR HANDLER COMPONENTS)
    AIR HANDLER ASSEMBLY
    (SEE BREAKDOWN ON AIR HANDLER COMPONENTS)
  • 11
    15-856139 SHIM
    (.020 THICK)
    SHIM
    (.020 THICK)
  • 11
    15-8561391 SHIM
    (.010 THICK)
    SHIM
    (.010 THICK)
  • 12
    NSS NOT SOLD SEPARATE, Decal-Caution-Start in Gear
    NOT SOLD SEPARATE, Decal-Caution-Start in Gear
  • 13
    855756A1 BRACKET
    BRACKET
  • 14
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 15
    8M0047624 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 16
    54-13791 CLAMP, (15.7)
    CLAMP, (15.7)
  • 17
    32-1350385 TUBING, (33.00 Inches Bulk) (5-1/2 IN.)
    TUBING, (33.00 Inches Bulk) (5-1/2 IN.)
  • 18
    32-85564361 HOSE (18 IN.)
    HOSE (18 IN.)
  • 19
    23-83312531 INSULATING SLEEVE
    INSULATING SLEEVE
  • 20
    22-855802A1 ELBOW
    ELBOW
  • 21
    22-805026A1 FITTING
    FITTING
  • 22
    25-805062 O-RING, (.530 x .082)
    O-RING, (.530 x .082)
  • 23
    22-8554247 FITTING
    FITTING
  • 24
    8285581 ENCODER
    ENCODER
  • 25
    10-418051 SCREW, (#10-24 x .620)
    SCREW, (#10-24 x .620)
  • 26
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 27
    54-97224 J CLIP (UPPER STBD.)
    J CLIP (UPPER STBD.)
  • 28
    54-814634 CLAMP (LOWER)
    CLAMP (LOWER)
  • 29
    10-817504 SCREW, (.250-20 x 1.500) Stainless Steel
    SCREW, (.250-20 x 1.500) Stainless Steel
  • 30
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 1-1/2 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 1-1/2 Inches)
  • 31
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 5 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 5 Inches)
  • 32
    35-855896T CANISTER, Vent
    CANISTER, Vent
  • 33
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 34
    22-860273 CONNECTOR
    CONNECTOR
  • 35
    8215832 PIN
    PIN
  • 36
    37-855577A26 DECAL, EPA Label Information
    (1998)
    DECAL, EPA Label Information
    (1998)
  • 37
    61990 TIE STRAP, (14.00 Inches)
    TIE STRAP, (14.00 Inches)
  • 38
    84-88807A27 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 39
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 40
    12-12038 WASHER
    WASHER
  • -
    804545R99 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
