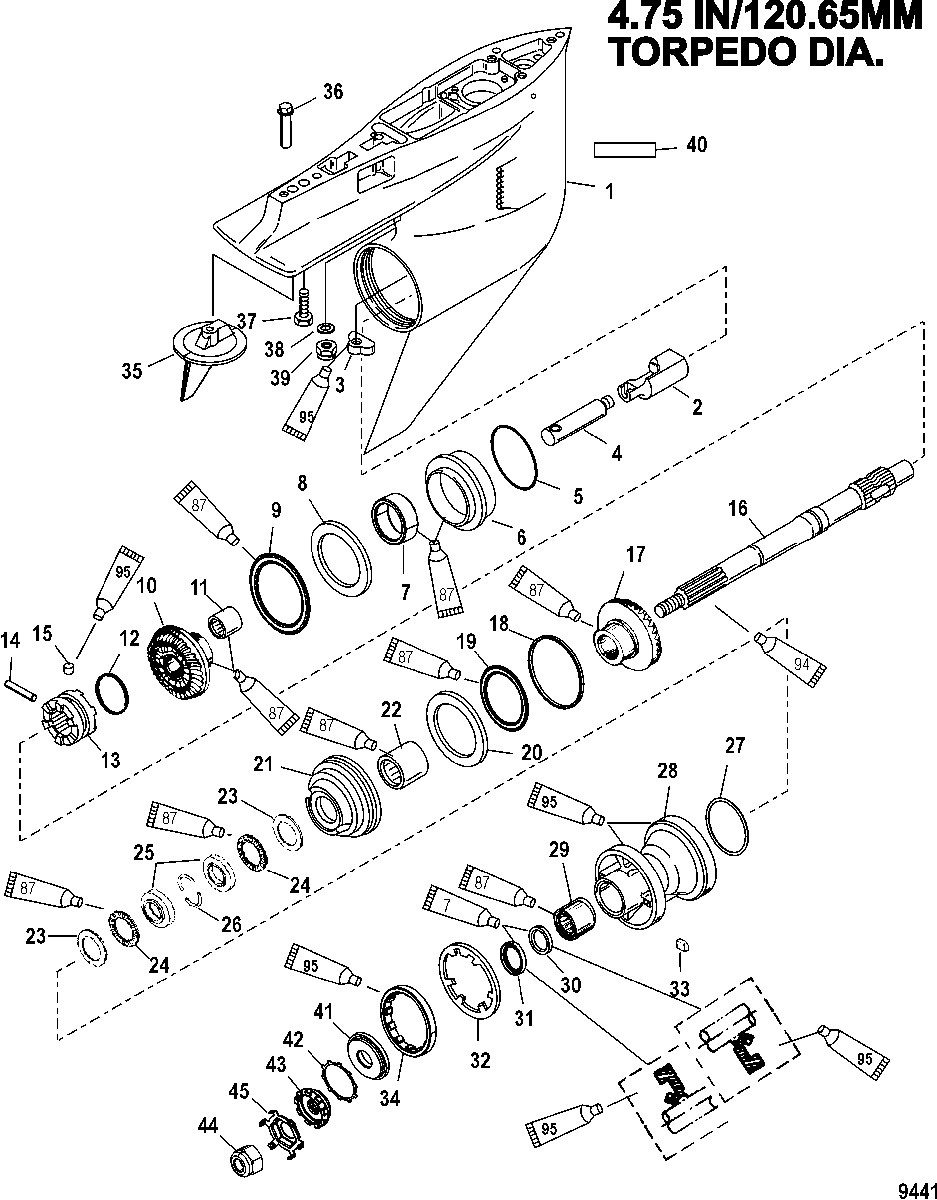

Gear Housing, Propeller Shaft - Counter Rotation для Mercury - V-150 DFI (2.5L) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • -
    1647-9148T86 GEAR HOUSING ASSEMBLY, Complete
    (Black-X-Long-Counter Rotation-1.87:1)
    GEAR HOUSING ASSEMBLY, Complete
    (Black-X-Long-Counter Rotation-1.87:1)
  • -
    1647-9148T86 GEAR HOUSING ASSEMBLY, Complete
    (Gray-X-Long-Counter Rotation-1.87:1)
    GEAR HOUSING ASSEMBLY, Complete
    (Gray-X-Long-Counter Rotation-1.87:1)
  • -
    1647-9148T83 GEAR HOUSING ASSEMBLY, Complete
    (Black-X-Long-Counter Rotation-2:1)
    GEAR HOUSING ASSEMBLY, Complete
    (Black-X-Long-Counter Rotation-2:1)
  • -
    1647-9148T89 GEAR HOUSING ASSEMBLY, Complete
    (Gray-X-Long-Counter Rotation-2:1)
    GEAR HOUSING ASSEMBLY, Complete
    (Gray-X-Long-Counter Rotation-2:1)
  • 0
    1647-9148T83 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-LONG - 2:1)
    GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
    (X-LONG - 2:1)
  • 1
    1647-9148T93 GEAR HOUSING ASSEMBLY
    (Black)
    GEAR HOUSING ASSEMBLY
    (Black)
  • 1
    1647-9148T93 GEAR HOUSING ASSEMBLY
    (Gray)
    GEAR HOUSING ASSEMBLY
    (Gray)
  • 2
    89594A1 FOLLOWER ASSEMBLY
    FOLLOWER ASSEMBLY
  • 3
    789562 SHIFT CAM
    SHIFT CAM
  • 4
    828287 ROD
    ROD
  • 5
    15-8M0063266 SHIM SET
    SHIM SET
  • 6
    828830A2 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 7
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 8
    12-815481 THRUST WASHER
    THRUST WASHER
  • 9
    31-815480 BEARING, Thrust
    BEARING, Thrust
  • 10
    43-828702A2 GEAR ASSEMBLY, Reverse - 15/28
    (1.87:1 Gear Ratio-150)
    GEAR ASSEMBLY, Reverse - 15/28
    (1.87:1 Gear Ratio-150)
  • 10
    43-828704A2 GEAR ASSEMBLY, Reverse - 14/28
    (2:1 Gear Ratio-135)
    GEAR ASSEMBLY, Reverse - 14/28
    (2:1 Gear Ratio-135)
  • 11
    31-15844 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 12
    24-30893 SPRING
    SPRING
  • 13
    52-859340T SLIDING CLUTCH
    SLIDING CLUTCH
  • 14
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 15
    17-828356 PIN, Detent
    PIN, Detent
  • 16
    44-828951 PROPELLER SHAFT
    PROPELLER SHAFT
  • 17
    43-828701A1 GEAR ASSEMBLY, Forward - 15/28
    (1.87:1 Gear Ratio-150)
    GEAR ASSEMBLY, Forward - 15/28
    (1.87:1 Gear Ratio-150)
  • 17
    43-828703A1 GEAR ASSEMBLY, Forward - 14/28
    (2:1 Gear Ratio-135)
    GEAR ASSEMBLY, Forward - 14/28
    (2:1 Gear Ratio-135)
  • 18
    23-1761514 SPACER SHIM , (.206)
    SPACER SHIM , (.206)
  • 18
    23-1761515 SPACER SHIM , (.208)
    SPACER SHIM , (.208)
  • 18
    23-1761516 SPACER SHIM, (.210)
    SPACER SHIM, (.210)
  • 18
    23-1761517 SPACER SHIM, (.212)
    SPACER SHIM, (.212)
  • 18
    23-1761518 SPACER SHIM, (.214)
    SPACER SHIM, (.214)
  • 18
    23-1761519 SPACER SHIM, (.216)
    SPACER SHIM, (.216)
  • 18
    23-1761520 SPACER SHIM, (.218)
    SPACER SHIM, (.218)
  • 18
    23-1761521 SPACER SHIM, (.220)
    SPACER SHIM, (.220)
  • 18
    23-1761522 SPACER SHIM, (.222)
    SPACER SHIM, (.222)
  • 18
    23-1761523 SPACER SHIM, (.224)
    SPACER SHIM, (.224)
  • 18
    23-1761524 SPACER SHIM, (.226)
    SPACER SHIM, (.226)
  • 18
    23-1761525 SPACER SHIM, (.228)
    SPACER SHIM, (.228)
  • 18
    23-1761526 SPACER SHIM, (.230)
    SPACER SHIM, (.230)
  • 19
    31-815480 BEARING, Thrust
    BEARING, Thrust
  • 20
    12-815481 THRUST WASHER
    THRUST WASHER
  • 21
    828831A3 ADAPTOR ASSEMBLY, Bearing
    ADAPTOR ASSEMBLY, Bearing
  • 22
    31-814653T BEARING ASSEMBLY, Needle Rollers
    BEARING ASSEMBLY, Needle Rollers
  • 23
    12-18448 THRUST WASHER
    THRUST WASHER
  • 24
    31-15842 BEARING, Thrust
    BEARING, Thrust
  • 25
    8182911 RACE, Thrust
    RACE, Thrust
  • 26
    814605 KEEPER
    KEEPER
  • 27
    25-31534 O-RING
    O-RING
  • 28
    818290A4 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 29
    31-30956T BEARING, Needle
    BEARING, Needle
  • 30
    26-14077 SEAL, Oil
    (INSIDE)
    SEAL, Oil
    (INSIDE)
  • 31
    26-76868 SEAL
    (OUTSIDE)
    SEAL
    (OUTSIDE)
  • 32
    14-183231 TAB WASHER
    TAB WASHER
  • 33
    28-30281 KEY
    KEY
  • 34
    8M2000347 RETAINER
    RETAINER
  • 35
    31640T07 TRIM TAB
    TRIM TAB
  • 36
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 37
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 38
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 39
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 40
    NSS NOT SOLD SEPARATE, Decal-Counter Rotation
    NOT SOLD SEPARATE, Decal-Counter Rotation
  • 41
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 42
    13-423511 LOCKWASHER, Toothed
    LOCKWASHER, Toothed
  • 43
    12-31211Q03 WASHER, Splined
    WASHER, Splined
  • 44
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • 45
    14-816629Q TAB WASHER
    TAB WASHER
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
  • -
    27-8M0046714 GASKET SET
    GASKET SET
