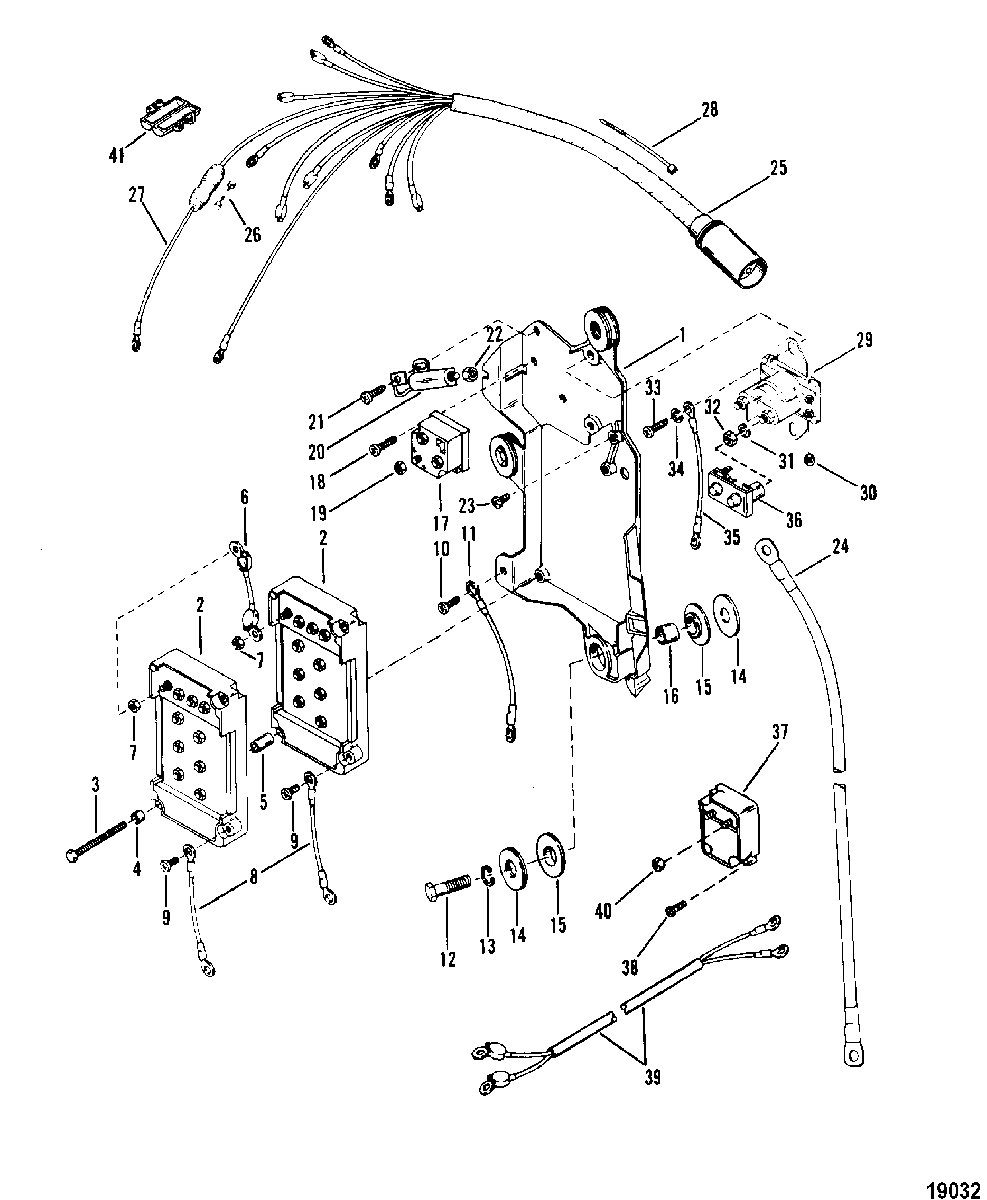

Wiring Harness, Starter Solenoid and Rectifier для Mercury - V-135 0A904646 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    434292 PLATE, IGNITION
    PLATE, IGNITION
  • 2
    332-7778A12 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 3
    10-13669 SCREW, (#12-24 x 2.00), SWITCH BOX TO IGNITION PLATE
    SCREW, (#12-24 x 2.00), SWITCH BOX TO IGNITION PLATE
  • 4
    23-94304 SPACER, SWITCH BOX SCREW (EARLY MODELS)
    SPACER, SWITCH BOX SCREW (EARLY MODELS)
  • 5
    23-94453 BUSHING, SWITCH BOX SCREW
    BUSHING, SWITCH BOX SCREW
  • 6
    84-62310A2 CABLE ASSEMBLY, SWITCH BOX TO SWITCH BOX
    CABLE ASSEMBLY, SWITCH BOX TO SWITCH BOX
  • 7
    11-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINAL
    NUT, (#10-32) Brass, SWITCH BOX TERMINAL
  • 8
    84-60871A10 WIRE ASSEMBLY, SWITCH BOX
    WIRE ASSEMBLY, SWITCH BOX
  • 9
    10-62568 SCREW, (#10-16 x .375), WIRE ATTACHING
    SCREW, (#10-16 x .375), WIRE ATTACHING
  • 10
    10-38055 SCREW, (.190-32 x .620), CABLE TO IGNITION PLATE
    SCREW, (.190-32 x .620), CABLE TO IGNITION PLATE
  • 11
    84-65999A3 CABLE ASSEMBLY, Black
    CABLE ASSEMBLY, Black
  • 12
    10-60411 SCREW, (1.25), IGNITION PLATE
    SCREW, (1.25), IGNITION PLATE
  • 13
    13-26993 LOCKWASHER, (.312), IGNITION PLATE SCREW
    LOCKWASHER, (.312), IGNITION PLATE SCREW
  • 14
    12-36042 WASHER, IGNITION PLATE SCREW
    WASHER, IGNITION PLATE SCREW
  • 15
    12-67264 WASHER, (Rubber), IGNITION PLATE SCREW
    WASHER, (Rubber), IGNITION PLATE SCREW
  • 16
    23-67268 BUSHING, IGNITION PLATE SCREW
    BUSHING, IGNITION PLATE SCREW
  • 17
    8M0058226 RECTIFIER
    RECTIFIER
  • 18
    10-38055 SCREW, (.190-32 x .620), MERCURY SWITCH TO IGNITION PLATE
    SCREW, (.190-32 x .620), MERCURY SWITCH TO IGNITION PLATE
  • 19
    11-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALS
    NUT, (#10-32) Brass, RECTIFIER TERMINALS
  • 20
    87-33386A3 SWITCH ASSEMLBY
    SWITCH ASSEMLBY
  • 21
    10-38055 SCREW, (.190-32 x .620), MERCURY SWITCH TO IGNITION PLATE
    SCREW, (.190-32 x .620), MERCURY SWITCH TO IGNITION PLATE
  • 22
    11-45076 NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
    NUT, (#10-32) Brass, MERCURY SWITCH TERMINAL
  • 23
    10-87926 SCREW, (#10-32 x .500), LEAD ATTACHING
    SCREW, (#10-32 x .500), LEAD ATTACHING
  • 24
    84-88439A14 CABLE ASSEMBLY, Battery - Positive, POSITIVE
    CABLE ASSEMBLY, Battery - Positive, POSITIVE
  • 24
    84-88439A2 CABLE ASSEMBLY, Battery - Negative, NEGATIVE
    CABLE ASSEMBLY, Battery - Negative, NEGATIVE
  • 25
    84-96220A4 HARNESS ASSEMBLY, ENGINE
    HARNESS ASSEMBLY, ENGINE
  • 26
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 27
    84-95084A2 CABLE ASSEMBLY, FUSE
    CABLE ASSEMBLY, FUSE
  • 28
    54-816311T CLAMP, HARNESS AND CABLES
    CLAMP, HARNESS AND CABLES
  • 29
    89-96054T SOLENOID ASSEMBLY, Starter
    (8-32 1/4-20 TERMINALS)
    SOLENOID ASSEMBLY, Starter
    (8-32 1/4-20 TERMINALS)
  • 30
    11-26419 NUT, (#8-32) Brass, SOLENOID TERMINALS
    (8-32 1/4-20 TERMINALS)
    NUT, (#8-32) Brass, SOLENOID TERMINALS
    (8-32 1/4-20 TERMINALS)
  • 31
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINALS (1/4")
    (8-32 1/4-20 TERMINALS)
    LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINALS (1/4")
    (8-32 1/4-20 TERMINALS)
  • 32
    11-94330 NUT, (.250-20) Brass, SOLENOID TERMINALS
    (8-32 1/4-20 TERMINALS)
    NUT, (.250-20) Brass, SOLENOID TERMINALS
    (8-32 1/4-20 TERMINALS)
  • 29
    89-853654A1 SOLENOID, Starter
    (10-32 5/16-18 TERMINALS)
    SOLENOID, Starter
    (10-32 5/16-18 TERMINALS)
  • 30
    11-45076 NUT, (#10-32) Brass, SOLENOID TERMINALS
    (10-32 5/16-18 TERMINALS)
    NUT, (#10-32) Brass, SOLENOID TERMINALS
    (10-32 5/16-18 TERMINALS)
  • 31
    13-53166 LOCKWASHER, (.312), SOLENOID TERMINALS
    (10-32 5/16-18 TERMINALS)
    LOCKWASHER, (.312), SOLENOID TERMINALS
    (10-32 5/16-18 TERMINALS)
  • 32
    11-68292 NUT, (.312-18), SOLENOID TERMINALS
    (10-32 5/16-18 TERMINALS)
    NUT, (.312-18), SOLENOID TERMINALS
    (10-32 5/16-18 TERMINALS)
  • 33
    10-31716 SCREW, (.250-20 x .620), SOLENOID TO IGNITION PLATE
    SCREW, (.250-20 x .620), SOLENOID TO IGNITION PLATE
  • 34
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TO IGNITION PLATE SCREW
    LOCKWASHER, (.250) Stainless Steel, SOLENOID TO IGNITION PLATE SCREW
  • 35
    84-65999A2 CABLE ASSEMBLY, Black, UPPER MOUNT
    CABLE ASSEMBLY, Black, UPPER MOUNT
  • 36
    85-97861 INSULATOR, SOLENOID
    INSULATOR, SOLENOID
  • 37
    88825A7 VOLTAGE REGUALTOR
    VOLTAGE REGUALTOR
  • 38
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, VOLTAGE REGULATOR
    SCREW, (#10-16 x .625) Stainless Steel, VOLTAGE REGULATOR
  • 39
    84-13397A1 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 40
    11-45076 NUT, (#10-32) Brass, VOLTAGE REGULATOR
    NUT, (#10-32) Brass, VOLTAGE REGULATOR
  • 41
    134731 HOLDER, Fuse
    HOLDER, Fuse
