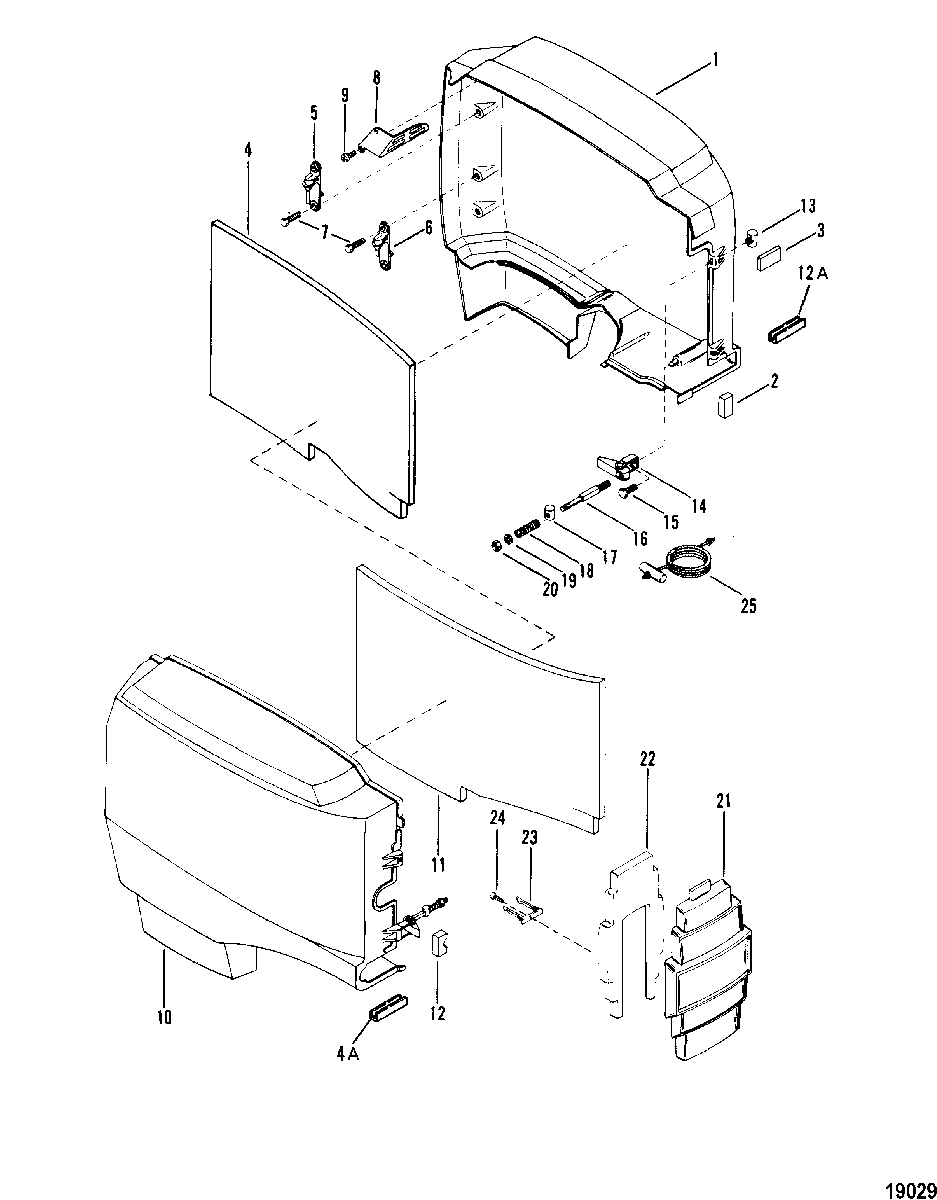

Cowls and Front Cover для Mercury - V-135 0A904646 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    2151-7620A4 TOP COWL ASSEMBLY, PORT (BLACK)
    TOP COWL ASSEMBLY, PORT (BLACK)
  • 1
    2151-7620A22 TOP COWL ASSEMBLY, PORT (GRAY)
    TOP COWL ASSEMBLY, PORT (GRAY)
  • 1
    2151-9447A18 TOP COWL ASSEMBLY, PORT (OYSTER)
    TOP COWL ASSEMBLY, PORT (OYSTER)
  • 2
    67260 SEAL, CONTROL CABLE
    SEAL, CONTROL CABLE
  • 3
    67258 PAD, COWL ASSEMBLY TO FRONT COVER
    PAD, COWL ASSEMBLY TO FRONT COVER
  • 4
    88227 BLANKET, SOUND - COWL
    BLANKET, SOUND - COWL
  • 4A
    193681 SEAL, (3.20 Inch), PORT COWL (OYSTER)
    SEAL, (3.20 Inch), PORT COWL (OYSTER)
  • 5
    879871 BRACKET, COWL ATTACHING - (UPPER)
    BRACKET, COWL ATTACHING - (UPPER)
  • 6
    87985 BRACKET, COWL ATTACHING - (LOWER)
    BRACKET, COWL ATTACHING - (LOWER)
  • 7
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, UPPER AND LOWER BRACKETS
    SCREW, (.312-18 x 1.00) Stainless Steel, UPPER AND LOWER BRACKETS
  • 8
    68049 SHIELD, INLET -COWL (STARBOARD)
    (BLACK/GRAY)
    SHIELD, INLET -COWL (STARBOARD)
    (BLACK/GRAY)
  • 8
    68048 SHIELD, INLET - COWL (PORT) (BLACK/GRAY)
    SHIELD, INLET - COWL (PORT) (BLACK/GRAY)
  • 8
    680491 SHIELD, INLET - COWL (STARBOARD) - (OYSTER)
    SHIELD, INLET - COWL (STARBOARD) - (OYSTER)
  • 8
    680481 SHIELD, INLET - COWL (PORT) (OYSTER)
    SHIELD, INLET - COWL (PORT) (OYSTER)
  • 9
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO COWL
    SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO COWL
  • 10
    2150-7619A1 TOP COWL ASSEMBLY, STARBOARD (BLACK)
    TOP COWL ASSEMBLY, STARBOARD (BLACK)
  • 10
    2150-7619A5 TOP COWL ASSEMBLY, STARBOARD (GRAY)
    TOP COWL ASSEMBLY, STARBOARD (GRAY)
  • 10
    2150-9452A3 TOP COWL ASSEMBLY, STARBOARD (OYSTER)
    TOP COWL ASSEMBLY, STARBOARD (OYSTER)
  • 11
    88227 BLANKET, SOUND - COWL
    BLANKET, SOUND - COWL
  • 12
    67260 SEAL, HARNESS
    SEAL, HARNESS
  • 12A
    193681 SEAL, (3.20 Inch), STARBOARD COWL (OYSTER)
    SEAL, (3.20 Inch), STARBOARD COWL (OYSTER)
  • 13
    62628 BARREL, RETAINING - COWL LATCH
    BARREL, RETAINING - COWL LATCH
  • 14
    46785A5 LATCH ASSEMBLY, Cowl
    LATCH ASSEMBLY, Cowl
  • 15
    10-31312 SCREW, (#10-32 x 0.875), BARREL TO COWL LATCH
    SCREW, (#10-32 x 0.875), BARREL TO COWL LATCH
  • 16
    15222 BAR, ADJUSTING - COWL LATCH
    BAR, ADJUSTING - COWL LATCH
  • 17
    62629 BARREL, RETAINING COWL LATCH
    BARREL, RETAINING COWL LATCH
  • 18
    24-62624 SPRING, COWL LATCH
    SPRING, COWL LATCH
  • 19
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, SPRING TO ADJUSTING BAR
    WASHER, (.192 x .375 x .0312) Stainless Steel, SPRING TO ADJUSTING BAR
  • 20
    11-859124 NUT, (#10-32) Stainless Steel, SPRING TO ADUSTING BAR
    NUT, (#10-32) Stainless Steel, SPRING TO ADUSTING BAR
  • 21
    2149-7532A2 COVER ASSEMBLY, Cowl - Front (BLACK)
    COVER ASSEMBLY, Cowl - Front (BLACK)
  • 21
    2149-7532A23 COVER ASSEMBLY, Cowl - Front (GRAY)
    COVER ASSEMBLY, Cowl - Front (GRAY)
  • 21
    2149-7532A23 COVER ASSEMBLY, Cowl - Front (OYSTER)
    COVER ASSEMBLY, Cowl - Front (OYSTER)
  • 22
    67615 BLANKET, SOUND - COWL FRONT COVER
    BLANKET, SOUND - COWL FRONT COVER
  • 23
    87907 HOOK, COWL FRONT COVER
    HOOK, COWL FRONT COVER
  • 24
    10-95700 SCREW, (#10-16 x .500), HOOK TO COWL FRONT COVER
    SCREW, (#10-16 x .500), HOOK TO COWL FRONT COVER
  • 25
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start
    (FOR MANUAL STARTING)
    ROPE AND HANDLE KIT, Manual/Emergency Start
    (FOR MANUAL STARTING)
