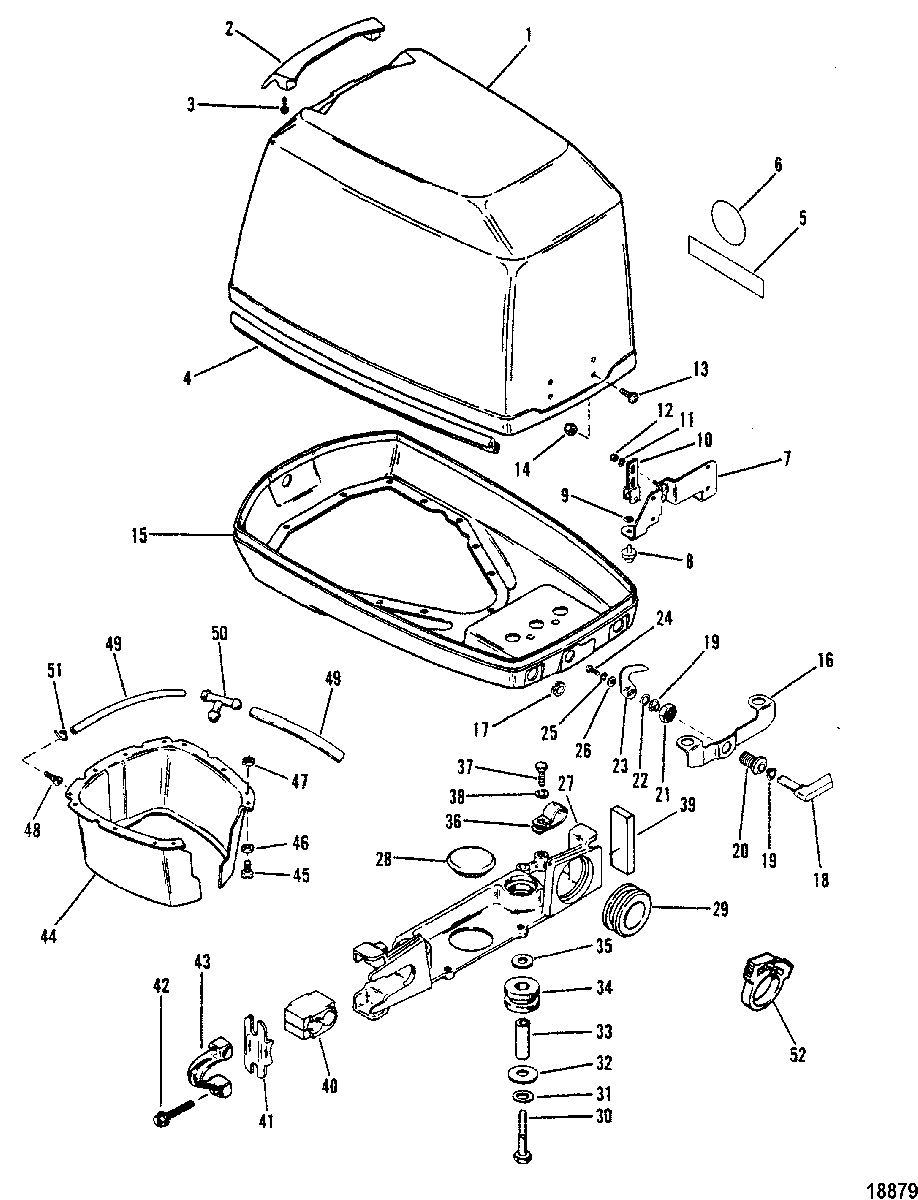

Cowls(Oyster Bucket Style) для Mercury - V-135 0A904646 THRU 0C100860
-
№АртикулНазвание
-
12194-9735A2 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
218036A1 LOUVER ASSEMBLYLOUVER ASSEMBLY
-
310-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
417973 SEALSEAL
-
538-17996 EMBLEMEMBLEM
-
637-179061 EMBLEMEMBLEM
-
718189A1 BRACKET ASSEMBLY, COWL LATCH (FRONT)BRACKET ASSEMBLY, COWL LATCH (FRONT)
-
718190A1 BRACKET ASSEMBLY, COWL LATCH (REAR)BRACKET ASSEMBLY, COWL LATCH (REAR)
-
818170A1 GUIDE MOUNTGUIDE MOUNT
-
954-18193 CLIP, GUIDE MOUNTCLIP, GUIDE MOUNT
-
10893763 BRACKET ASSEMBLY, Latch Roller, ROLLERBRACKET ASSEMBLY, Latch Roller, ROLLER
-
1113-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1211-82670910 NUT, (.312-18)NUT, (.312-18)
-
1310-18192 SCREW, (.250-20 x .620), BRACKETSCREW, (.250-20 x .620), BRACKET
-
1411-8267098 NUT, (.250-20), BRACKET SCREWNUT, (.250-20), BRACKET SCREW
-
152194-9734T10 BOTTOM COWLBOTTOM COWL
-
1618183 BRACKET, COWL LATCHBRACKET, COWL LATCH
-
1725-18182 GROMMETGROMMET
-
1818168A1 LATCH HANDLE ASSEMBLYLATCH HANDLE ASSEMBLY
-
1923-812707 BUSHINGBUSHING
-
2023-18172 BUSHING, COWL LATCHBUSHING, COWL LATCH
-
2111-18304 NUTNUT
-
2213-69708 WAVE WASHERWAVE WASHER
-
2318169 HOOK, COWL LATCHHOOK, COWL LATCH
-
2410-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
2513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
27994241 BRACKET, LOWER COWLBRACKET, LOWER COWL
-
2819-18219 PLUGPLUG
-
2925-13467 GROMMET, (.88 Inside Diameter)GROMMET, (.88 Inside Diameter)
-
3010-70732 SCREW, (.250-20 x 2.00)SCREW, (.250-20 x 2.00)
-
3112-69057 WASHERWASHER
-
3212-35280 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3323-18194 BUSHINGBUSHING
-
3425-88033 GROMMETGROMMET
-
3512-26907 WASHERWASHER
-
3654-18479 CLAMPCLAMP
-
3710-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
3813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3967260 SEAL, CONTROL CABLESSEAL, CONTROL CABLES
-
4099391 RETAINER, OIL LINESRETAINER, OIL LINES
-
4188622 PLATE, CABLE RETAINERPLATE, CABLE RETAINER
-
4210-68918 SCREW, (.190-24 x 1.00), CABLE RETAINERSCREW, (.190-24 x 1.00), CABLE RETAINER
-
4399447 RETAINER, CABLERETAINER, CABLE
-
4418037T10 TRIM COVER, COWLTRIM COVER, COWL
-
4510-18124 SCREW, (#10-32 x .750), TRIM COVER TO PLATESCREW, (#10-32 x .750), TRIM COVER TO PLATE
-
4612-89302 WASHER, (.203 x .406 x .040), TRIM COVER SCREWWASHER, (.203 x .406 x .040), TRIM COVER SCREW
-
4711-826709106 NUT, (#10-32), TRIM COVER SCREWNUT, (#10-32), TRIM COVER SCREW
-
4822-18195 FITTING, TELL TALEFITTING, TELL TALE
-
4932-8M0108355 LINE, (57.00 Inches Bulk), TELL TALELINE, (57.00 Inches Bulk), TELL TALE
-
5022-90824001 TEE, TELL TALE HOSETEE, TELL TALE HOSE
-
5154-816311T CLAMPCLAMP
-
5254-4158210 CLAMP, NylonCLAMP, Nylon
