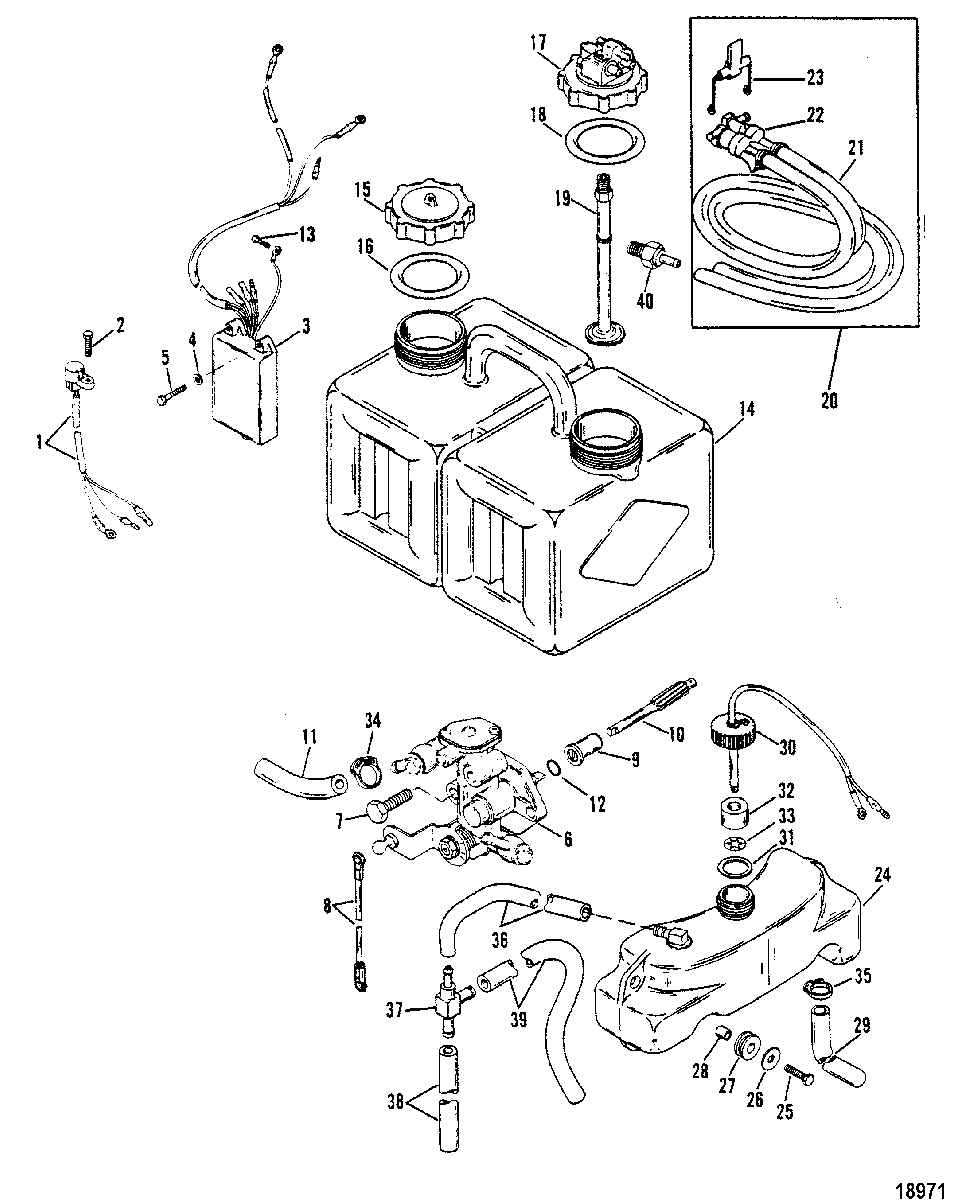

Oil Injection Components для Mercury - V-135 0A904646 THRU 0C100860
![](/wa-data/public/shop/sheme/mercury/12nidhb0.png)
-
№АртикулНазвание
-
112430A4 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
210-48409 SCREW, (#10-16 x .625) Stainless Steel, SENSOR ATTACHINGSCREW, (#10-16 x .625) Stainless Steel, SENSOR ATTACHING
-
341470A27 WARNING MODULE ASSEMBLYWARNING MODULE ASSEMBLY
-
412-38833 WASHER, WARNING MODULE SCREWWASHER, WARNING MODULE SCREW
-
510-690201 SCREW, (#10-32 x .875), WARNING MODULE TO CYLINDER BLOCKSCREW, (#10-32 x .875), WARNING MODULE TO CYLINDER BLOCK
-
6815698T PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
710-32228 SCREW, (#10-32 x .625), OIL PUMP TO CRANKCASESCREW, (#10-32 x .625), OIL PUMP TO CRANKCASE
-
710-41507 SCREW, (#10-32 x 1.120), OIL PUMP TO CRANKCASESCREW, (#10-32 x 1.120), OIL PUMP TO CRANKCASE
-
8193856 LINK, THROTTLE LEVER TO OIL PUMPLINK, THROTTLE LEVER TO OIL PUMP
-
923-41429A2 BEARING ASSEMBLY, DRIVE GEARBEARING ASSEMBLY, DRIVE GEAR
-
1043-14563 GEAR, DrivenGEAR, Driven
-
1132-82381335 TUBING, OIL PUMP TO TEETUBING, OIL PUMP TO TEE
-
1225-11379 O-RING, OIL PUMPO-RING, OIL PUMP
-
1310-42813 SCREW, (#10-32 X .380), WARNING MODULE LEADSCREW, (#10-32 X .380), WARNING MODULE LEAD
-
141257-87421 TANKTANK
-
1536-43298A2 CAP ASSEMBLY, OIL TANKCAP ASSEMBLY, OIL TANK
-
1625-11332 O-RING, (2.225 x .210), CAPO-RING, (2.225 x .210), CAP
-
17816190A4 HOUSING ASSEMBLY, AdaptorHOUSING ASSEMBLY, Adaptor
-
1825-11332 O-RING, (2.225 x .210), ADAPTOR HOUSINGO-RING, (2.225 x .210), ADAPTOR HOUSING
-
1932-99802 TUBE, OIL PICK-UPTUBE, OIL PICK-UP
-
20NSS NOT SOLD SEPARATE, Quick Disconnect Kit (Order parts separately)NOT SOLD SEPARATE, Quick Disconnect Kit (Order parts separately)
-
2132-99439 HOSE, (114.00 Inches), OILHOSE, (114.00 Inches), OIL
-
2212540A3 HOUSINGHOUSING
-
2312242A1 LATCHLATCH
-
24994436 RESERVOIR, OilRESERVOIR, Oil
-
2510-690201 SCREW, (#10-32 x .875), OIL RESERVOIR ATTACHINGSCREW, (#10-32 x .875), OIL RESERVOIR ATTACHING
-
2612-42118 WASHER, OIL RESERVOIR SCREWWASHER, OIL RESERVOIR SCREW
-
2725-42117 GROMMET, OIL RESERVOIR SCREWGROMMET, OIL RESERVOIR SCREW
-
2823-42116 BUSHING, OIL RESERVOIR SCREWBUSHING, OIL RESERVOIR SCREW
-
2932-82381455 TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")
-
3036-43300A9 CAP ASSEMBLY, OIL RESERVOIRCAP ASSEMBLY, OIL RESERVOIR
-
3127-43307T GASKET, RESERVOIR CAPGASKET, RESERVOIR CAP
-
3299022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3311-99265 PUSH NUTPUSH NUT
-
3454-415821 CLAMP, OIL HOSE (SMALL)CLAMP, OIL HOSE (SMALL)
-
3554-415823 CLAMP, OIL HOSE (LARGE)CLAMP, OIL HOSE (LARGE)
-
3632-8M0108355 LINE, (57.00 Inches Bulk), OILLINE, (57.00 Inches Bulk), OIL
-
3722-42425 TEE, OIL TUBINGTEE, OIL TUBING
-
3832-9072925 HOSE, OIL (6-3/4")HOSE, OIL (6-3/4")
-
3032-8M0108355 HOSEHOSE
-
4021-8781051 FITTING, CHECK VALVE (CRANKCASE)FITTING, CHECK VALVE (CRANKCASE)
