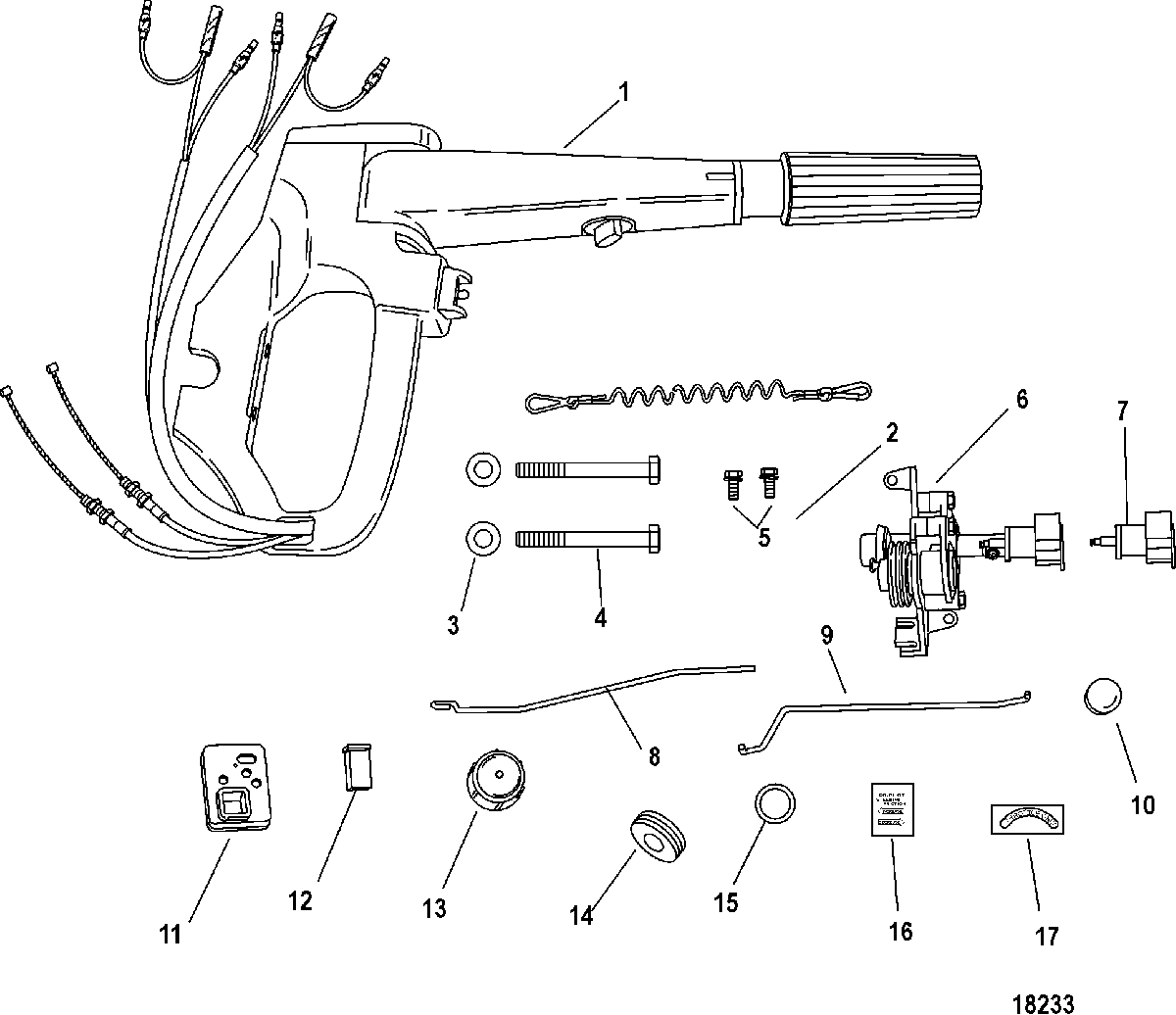

Tiller Handle Conversion Kit-Manual, 896289A01 для Mercury - 9.9 (4-STROKE)(209cc) 0P325500 & Up

  • №
    Артикул
    Название
  • -
    8M0103839 TILLER HANDLE KIT
    TILLER HANDLE KIT
  • 1
    NSS NOT SOLD SEPARATE, Tiller Handle Assembly
    NOT SOLD SEPARATE, Tiller Handle Assembly
  • 2
    8M0092850 LANYARD ASSEMBLY
    LANYARD ASSEMBLY
  • 3
    12-879194340 WASHER, Stainless Steel
    WASHER, Stainless Steel
  • 4
    10-8M0058362 BOLT, Steel
    BOLT, Steel
  • 5
    10-8248324 BOLT, Stainless Steel
    BOLT, Stainless Steel
  • 6
    NSS NOT SOLD SEPARATE, Throttle Assembly
    NOT SOLD SEPARATE, Throttle Assembly
  • 7
    802971001 SHIFT DETENT
    Bigfoot Models
    SHIFT DETENT
    Bigfoot Models
  • 8
    803574002 ROD, Throttle
    ROD, Throttle
  • 9
    855561007 ROD, Choke Link
    ROD, Choke Link
  • 10
    25-162284 GROMMET
    GROMMET
  • 11
    25-895175 GROMMET
    GROMMET
  • 12
    23-851858005 BUSHING
    BUSHING
  • 13
    11-85372214 CAP NUT, Tilt Tube
    CAP NUT, Tilt Tube
  • 14
    25-853709008 GROMMET
    GROMMET
  • 15
    26-16219002 SEAL
    SEAL
  • 16
    NSS NOT SOLD SEPARATE, Decal, Co-Pilot
    NOT SOLD SEPARATE, Decal, Co-Pilot
  • 17
    37-859278003 DECAL, Throttle Only
    DECAL, Throttle Only
