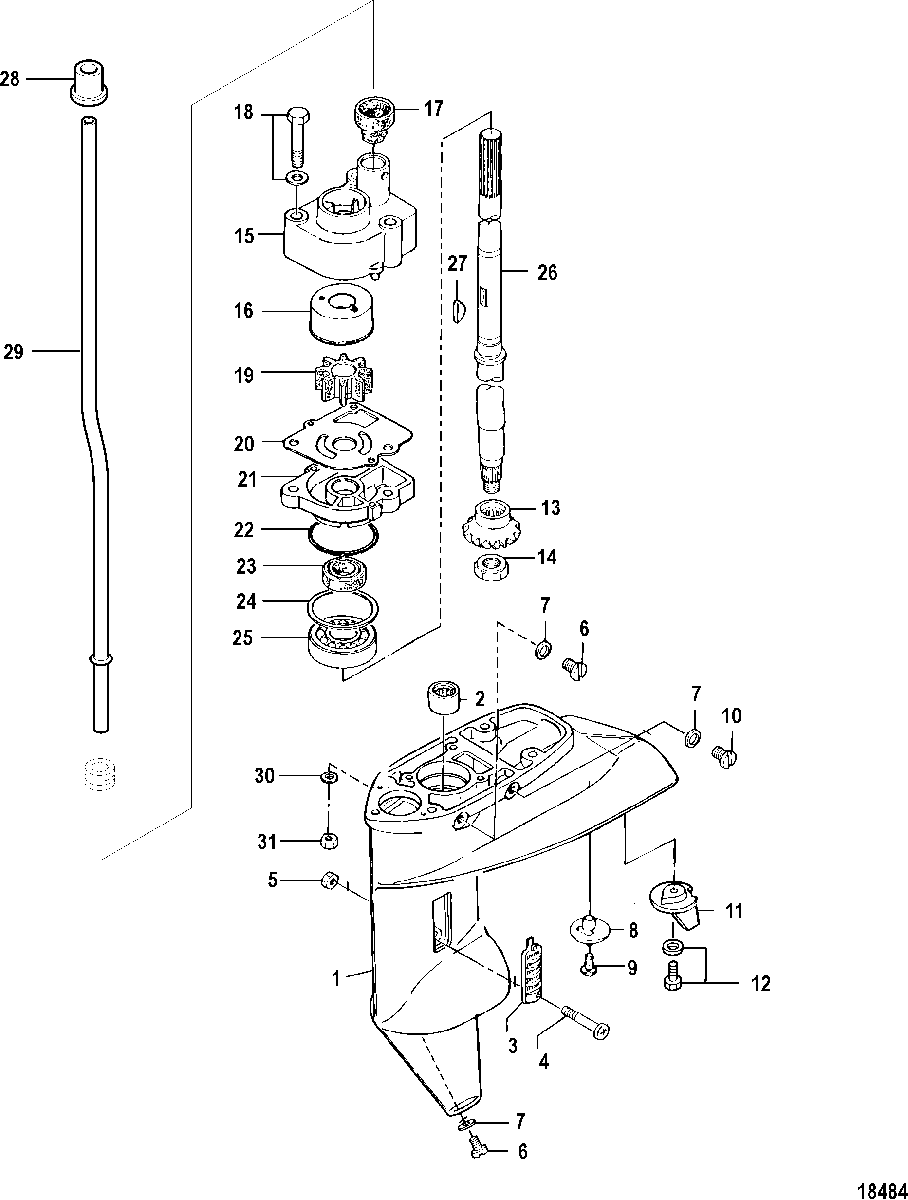

Gear Housing, Driveshaft-Bigfoot для Mercury - 9.9 (4-STROKE)(209cc) 0P325500 & Up

  • №
    Артикул
    Название
  • -
    1668-8M0070884 GEAR HOUSING ASSEMBLY, Complete
    Long SN# USA-0R198975/BEL-0P513351 & Below
    GEAR HOUSING ASSEMBLY, Complete
    Long SN# USA-0R198975/BEL-0P513351 & Below
  • -
    1668-8M0070884 GEAR HOUSING ASSEMBLY, Complete
    Long SN# USA-0R198976/BEL-0P513352 & Up
    GEAR HOUSING ASSEMBLY, Complete
    Long SN# USA-0R198976/BEL-0P513352 & Up
  • -
    1668-8M0070895 GEAR HOUSING ASSEMBLY, Complete
    X-Long SN# USA-0R198975/BEL-0P513351 & Below
    GEAR HOUSING ASSEMBLY, Complete
    X-Long SN# USA-0R198975/BEL-0P513351 & Below
  • -
    1668-8M0070895 GEAR HOUSING ASSEMBLY, Complete
    X-Long SN# USA-0R198976/BEL-0P513352 & Up
    GEAR HOUSING ASSEMBLY, Complete
    X-Long SN# USA-0R198976/BEL-0P513352 & Up
  • 1
    1668-8M0070873 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    31-160521 BEARING, Needle
    BEARING, Needle
  • 3
    803730002 STRAINER, Water
    STRAINER, Water
  • 4
    10-17635 SCREW
    SCREW
  • 5
    11-85372210 NUT
    NUT
  • 6
    22-953683 PLUG
    PLUG
  • 7
    8M0082880 GASKET
    GASKET
  • 8
    16133 STRAINER, Water
    STRAINER, Water
  • 9
    10-16134 SCREW
    SCREW
  • 10
    22-953683 PLUG
    PLUG
  • 11
    853762T01 TRIM TAB
    TRIM TAB
  • 12
    10-167051 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 13
    43-803740T02 GEAR, Pinion
    GEAR, Pinion
  • 14
    11-85372211 NUT
    NUT
  • 15
    46-803750A05 HOUSING ASSEMBLY, Upper Water Pump
    HOUSING ASSEMBLY, Upper Water Pump
  • 16
    803751 LINER, Water Pump
    LINER, Water Pump
  • 17
    26-8036674 SEAL
    SEAL
  • 18
    10-879194269 BOLT
    BOLT
  • 19
    47-803748 IMPELLER
    IMPELLER
  • 20
    803753 GUIDE PLATE
    GUIDE PLATE
  • 21
    46-803750A04 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 22
    25-8537096 O-RING
    O-RING
  • 23
    26-803752 SEAL, Oil
    SEAL, Oil
  • 24
    15-813276001 SHIM, (0.1)
    SHIM, (0.1)
  • 24
    15-813276015 SHIM, (0.15)
    SHIM, (0.15)
  • 24
    15-813276003 SHIM, (0.3)
    SHIM, (0.3)
  • 24
    15-813276005 SHIM, (0.5)
    SHIM, (0.5)
  • 25
    30-16132T05 BEARING, Ball, Component of X-Long Extension Housing Kit
    BEARING, Ball, Component of X-Long Extension Housing Kit
  • 26
    45-803738T09 DRIVESHAFT
    Long
    DRIVESHAFT
    Long
  • 26
    45-803738T10 DRIVESHAFT, Component of X-Long Extension Housing Kit
    X-Long
    DRIVESHAFT, Component of X-Long Extension Housing Kit
    X-Long
  • 27
    28-803749 KEY
    KEY
  • 28
    25-804899002 GROMMET
    GROMMET
  • 29
    32-803755T10 TUBE, Water
    Long
    TUBE, Water
    Long
  • 29
    32-803755T11 TUBE, Water, Component of X-Long Extension Housing Kit
    X-Long
    TUBE, Water, Component of X-Long Extension Housing Kit
    X-Long
  • 30
    12-8M0135942 WASHER
    WASHER
  • 31
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • -
    27-8M0082884 GASKET SET, Lower Unit
    GASKET SET, Lower Unit
  • -
    46-8M0122064 PUMP KIT, Water - Complete
    PUMP KIT, Water - Complete
  • -
    47-803748K02 REPAIR KIT, Water Impeller
    Mercury Brand
    REPAIR KIT, Water Impeller
    Mercury Brand
  • -
    47-803748Q02 REPAIR KIT, Water Impeller
    Quicksilver Brand
    REPAIR KIT, Water Impeller
    Quicksilver Brand
