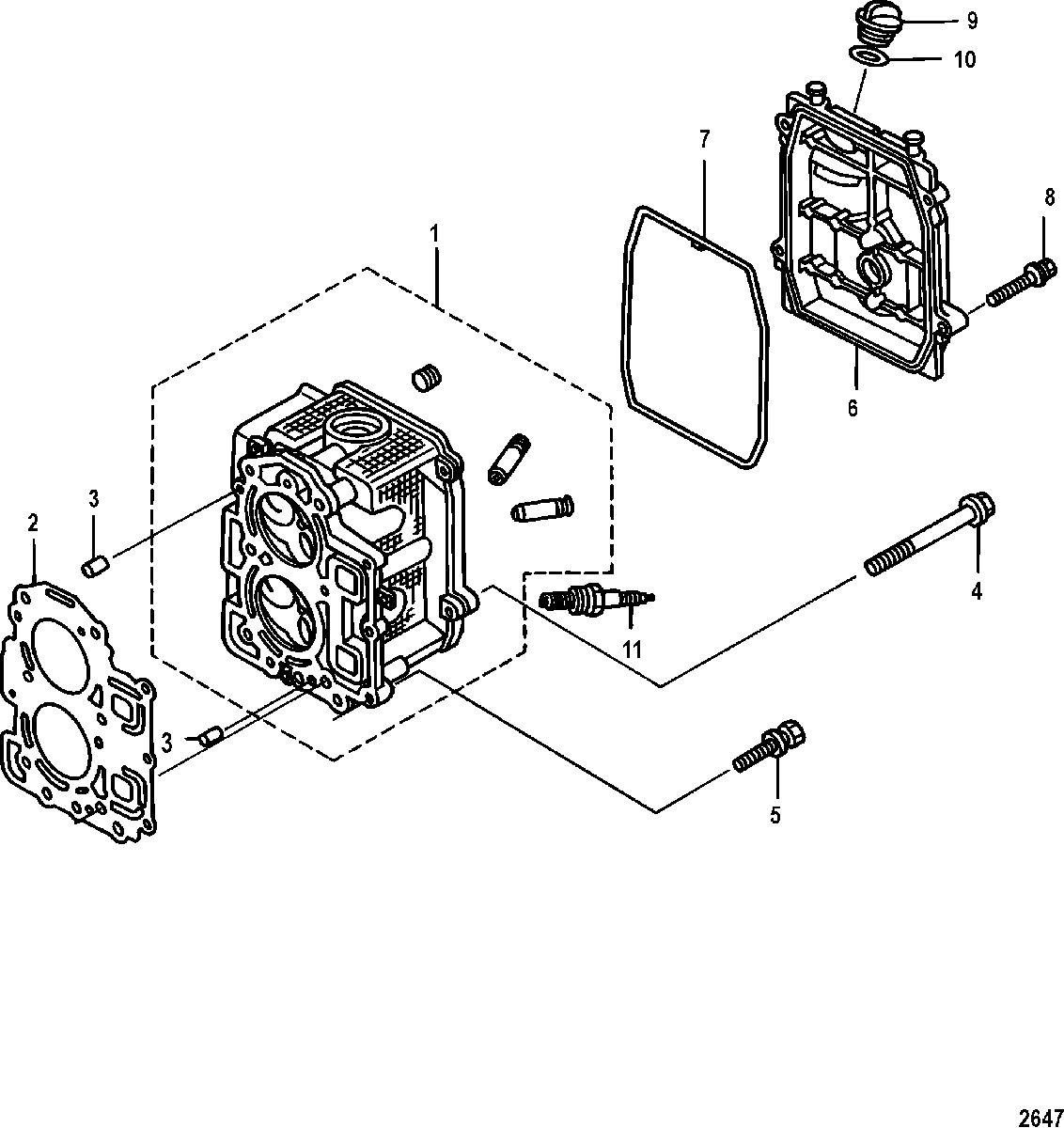

Cylinder Head для Mercury - 9.9 (4-STROKE)(209cc) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    900-835430T03 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 2
    27-850836001 GASKET
    GASKET
  • 3
    17-16119 PIN, Dowel
    PIN, Dowel
  • 4
    10-855677005 BOLT
    BOLT
  • 5
    10-825009026 BOLT
    BOLT
  • 6
    834954A01 COVER, Cylinder Head
    Without Decal
    COVER, Cylinder Head
    Without Decal
  • 6
    834954A01 COVER ASSEMBLY, Cylinder Head
    With Decal
    COVER ASSEMBLY, Cylinder Head
    With Decal
  • -
    37-892904009 DECAL, Oil Recommend
    DECAL, Oil Recommend
  • 7
    27-803508017 GASKET, Cylinder Head Cover
    GASKET, Cylinder Head Cover
  • 8
    10-823042 BOLT, Stainless Steel
    BOLT, Stainless Steel
  • 9
    859578A02 CAP ASSEMBLY, Oil Filler
    CAP ASSEMBLY, Oil Filler
  • 10
    25-803513007 O-RING
    O-RING
  • 11
    33-803507 SPARK PLUG, NGK#DCPR6E
    SPARK PLUG, NGK#DCPR6E
  • -
    27-835427A04 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R139508 & Below
    POWERHEAD ASSEMBLY
    SN# 0R139508 & Below
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R139509 THRU 0R310614
    POWERHEAD ASSEMBLY
    SN# 0R139509 THRU 0R310614
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R310615 & Up
    POWERHEAD ASSEMBLY
    SN# 0R310615 & Up
  • -
    900-835430T07 CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139508 & Below
    CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139508 & Below
  • -
    900-835430T07 CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139509 & Up
    CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139509 & Up
