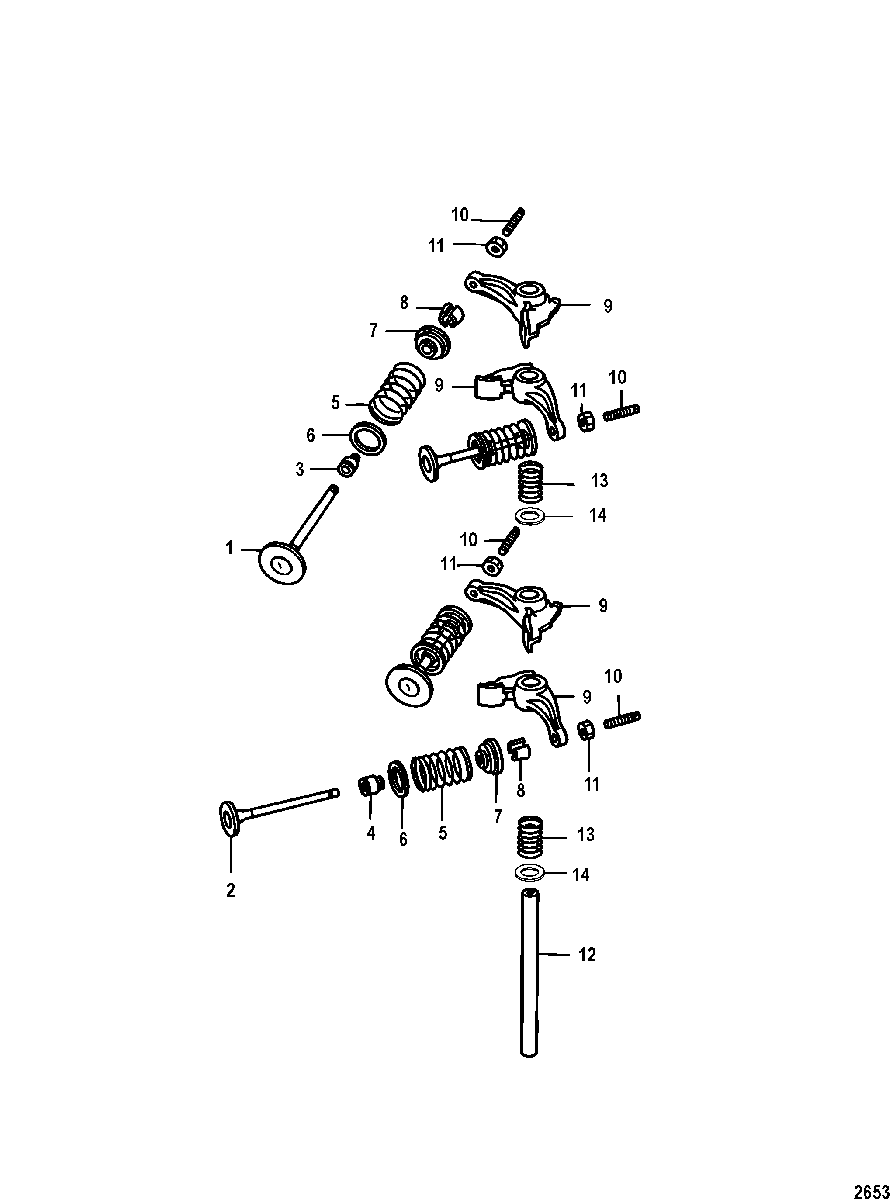

Intake and Exhaust Valves для Mercury - 9.9 (4-STROKE)(209cc) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    850838T01 VALVE, Intake
    VALVE, Intake
  • 2
    850839T01 VALVE, Exhaust
    VALVE, Exhaust
  • 3
    26-822647001 SEAL, Intake - Black
    SEAL, Intake - Black
  • 4
    26-822647002 SEAL, Exhaust - Green
    SEAL, Exhaust - Green
  • 5
    24-803554005 SPRING, Valve
    SPRING, Valve
  • 6
    855959001 SEAT, Valve Spring
    SEAT, Valve Spring
  • 7
    822650001 RETAINER
    RETAINER
  • 8
    28-803556 KEEPER, Valve
    KEEPER, Valve
  • 9
    8M0081793 ROCKER ARM
    ROCKER ARM
  • 10
    10-825046001 SCREW, Adjusting
    SCREW, Adjusting
  • 11
    11-826150001 NUT, Adjusting
    NUT, Adjusting
  • 12
    850842001 ROCKER ARM SHAFT
    ROCKER ARM SHAFT
  • 13
    24-825452001 SPRING
    SPRING
  • 14
    12-895118001 WASHER
    WASHER
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R139508 & Below
    POWERHEAD ASSEMBLY
    SN# 0R139508 & Below
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R139509 THRU 0R310614
    POWERHEAD ASSEMBLY
    SN# 0R139509 THRU 0R310614
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R310615 & Up
    POWERHEAD ASSEMBLY
    SN# 0R310615 & Up
  • -
    900-835430T07 CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139508 & Below
    CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139508 & Below
  • -
    900-835430T07 CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139509 & Up
    CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139509 & Up
