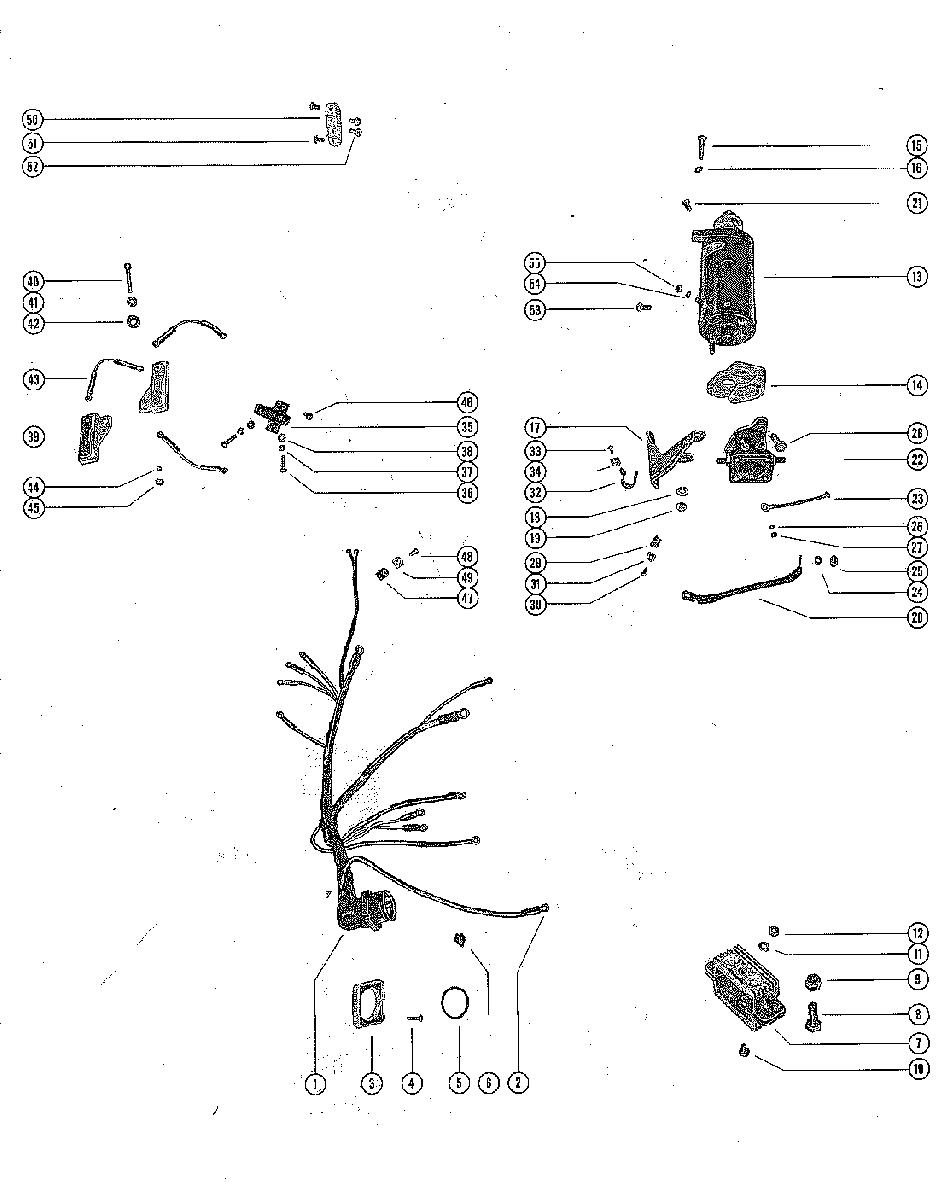

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 900 (6 CYL.) 1766824 THRU 1869775

  • №
    Артикул
    Название
  • 1
    37817 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 2
    30050 TERMINAL, HARNESS AND MERCURY SWITCH LEADS
    TERMINAL, HARNESS AND MERCURY SWITCH LEADS
  • 3
    26079A2 PLATE, WIRING HARNESS TO BOTTOM COWL
    PLATE, WIRING HARNESS TO BOTTOM COWL
  • 4
    10-45893 SCREW< HARNESS PLATE FASTENING
    SCREW< HARNESS PLATE FASTENING
  • 5
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 6
    54-22783 "S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL
    "S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL
  • 7
    32177A2 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 8
    10-26065 SCREW, RECTIFIER TO MOUNTING BRACKET
    SCREW, RECTIFIER TO MOUNTING BRACKET
  • 9
    11-29250 NUT, RECTIFIER MOUNTING SCREW
    NUT, RECTIFIER MOUNTING SCREW
  • 10
    10-35400 SCREW, HARNESS GTERMINAL LEAD TO RECTIFIER
    SCREW, HARNESS GTERMINAL LEAD TO RECTIFIER
  • 11
    13-26996 LOCKWASHER, RECTIFIER STATOR LEAD TERMINALS
    LOCKWASHER, RECTIFIER STATOR LEAD TERMINALS
  • 12
    11-68219 NUT, FASTENING - RECTIFIER STATOR LEADS
    NUT, FASTENING - RECTIFIER STATOR LEADS
  • 13
    50-45822A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 14
    45125 PLATE, SPACER - STARTER MOTOR
    PLATE, SPACER - STARTER MOTOR
  • 15
    10-22698 SCREW< STARTER MOTOR TO CRANKCASE FLANGE
    SCREW< STARTER MOTOR TO CRANKCASE FLANGE
  • 16
    13-26993 LOCKWASHER, STARTER MOTOR FASTENING SCREW
    LOCKWASHER, STARTER MOTOR FASTENING SCREW
  • 17
    38747 BRACKET, SUPPORT - STARTER MOTOR
    BRACKET, SUPPORT - STARTER MOTOR
  • 18
    13-24669 LOCKWASHER, THRU BOLT
    LOCKWASHER, THRU BOLT
  • 19
    11-20890 NUT, THRU BOLT - BRACKET TO STARTER MOTOR
    NUT, THRU BOLT - BRACKET TO STARTER MOTOR
  • 20
    84-93388A14 CABLE, WIRE - STARTER MOTOR TO SOLENOID
    CABLE, WIRE - STARTER MOTOR TO SOLENOID
  • 21
    10-69035 SCREW, HARNESS GROUND LEAD TO STARTER MOTOR
    SCREW, HARNESS GROUND LEAD TO STARTER MOTOR
  • 22
    32082 SOLENOID, STARTER
    SOLENOID, STARTER
  • 23
    32278A1 GROUND STRAP ASSEMBLY, STARTER SOLENOID
    GROUND STRAP ASSEMBLY, STARTER SOLENOID
  • 24
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16)
    LOCKWASHER, SOLENOID TERMINAL (5/16)
  • 25
    11-22053 NUT, SOLENOID TERMINAL (5/16)
    NUT, SOLENOID TERMINAL (5/16)
  • 26
    13-26996 LOCKWASHER, SOLENOID TERMINAL (10)
    LOCKWASHER, SOLENOID TERMINAL (10)
  • 27
    11-68219 NUT, SOLENOID TERMINAL (10)
    NUT, SOLENOID TERMINAL (10)
  • 28
    10-29282 SCREW, SOLENOID TO STARTER MOTOR
    SCREW, SOLENOID TO STARTER MOTOR
  • 29
    54-24836 CLIP, LEAD WIRRES TO SUPPORT BRACKET
    CLIP, LEAD WIRRES TO SUPPORT BRACKET
  • 30
    10-62568 SCREW, LEAD WIRE CLIP FASTENING
    SCREW, LEAD WIRE CLIP FASTENING
  • 31
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 32
    54-24871 CLAMP, WIRING HARNESS TO SUPPORT BRACKET
    CLAMP, WIRING HARNESS TO SUPPORT BRACKET
  • 33
    10-62568 SCREW, HARNESS CLAMP FASTENING
    SCREW, HARNESS CLAMP FASTENING
  • 34
    8M0084613 "D" WASHER, HARNESS CLAMP
    "D" WASHER, HARNESS CLAMP
  • 35
    29714 BLOCK, TGERMINAL - UPPER FUEL PUMP PAD
    BLOCK, TGERMINAL - UPPER FUEL PUMP PAD
  • 36
    10-22245 SCREW, TGERMINAL BLOCK FASTENING
    SCREW, TGERMINAL BLOCK FASTENING
  • 37
    13-26996 LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
    LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
  • 38
    12-26014 WASHER, TERMINAL BLOCK FSATENING SCREW
    WASHER, TERMINAL BLOCK FSATENING SCREW
  • 39
    82-72878A1 BALLAST, IGNITION COIL
    BALLAST, IGNITION COIL
  • 40
    10-28666 SCREW, BALLAST AND PORT COVER MOUNTING (1")
    SCREW, BALLAST AND PORT COVER MOUNTING (1")
  • 41
    13-26992 LOCKWASHER, BALLAST AND PORT COVER MOUNTING SCREW
    LOCKWASHER, BALLAST AND PORT COVER MOUNTING SCREW
  • 42
    12-69057 WASHER, BALLAST AND PORT COVER MOUNTING SCREW
    WASHER, BALLAST AND PORT COVER MOUNTING SCREW
  • 43
    29112 JUMPER, BALLAST TO BALLAST AND BALLAST TO BLOCK
    JUMPER, BALLAST TO BALLAST AND BALLAST TO BLOCK
  • 44
    13-26995 LOCKWASHER, BALLAST JUMPER LEAD TERMINALS
    LOCKWASHER, BALLAST JUMPER LEAD TERMINALS
  • 45
    11-21923T NUT, BALLAST JUMPER LEADS FASTENING
    NUT, BALLAST JUMPER LEADS FASTENING
  • 46
    10-35400 SCRFEW, HARNESS AND JUMPER LEADS TO TERMINAL BLOCK
    SCRFEW, HARNESS AND JUMPER LEADS TO TERMINAL BLOCK
  • 47
    54-24836 CLIP, WIRING HARNESS TO CRANKCASE FLANGE
    CLIP, WIRING HARNESS TO CRANKCASE FLANGE
  • 48
    10-8M0113176 SCREW, HARNESS CLIP FASTENING
    SCREW, HARNESS CLIP FASTENING
  • 49
    8M0084613 "D" WASHER, HARNESS CLIP
    "D" WASHER, HARNESS CLIP
  • 50
    30212 BLOCK, TERMINAL - EXHAUST COVER
    BLOCK, TERMINAL - EXHAUST COVER
  • 51
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK
    SCREW, HARNESS LEADS TO TERMINAL BLOCK
  • 52
    10-72169 SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
    SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
  • 53
    10-32471 SCREW, SOLENOID MOUNTING HOLES IN STARTER MOTOR
    SCREW, SOLENOID MOUNTING HOLES IN STARTER MOTOR
  • 54
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 55
    11-20890 NUT, STARTER MOTOR TERMINAL
    NUT, STARTER MOTOR TERMINAL
