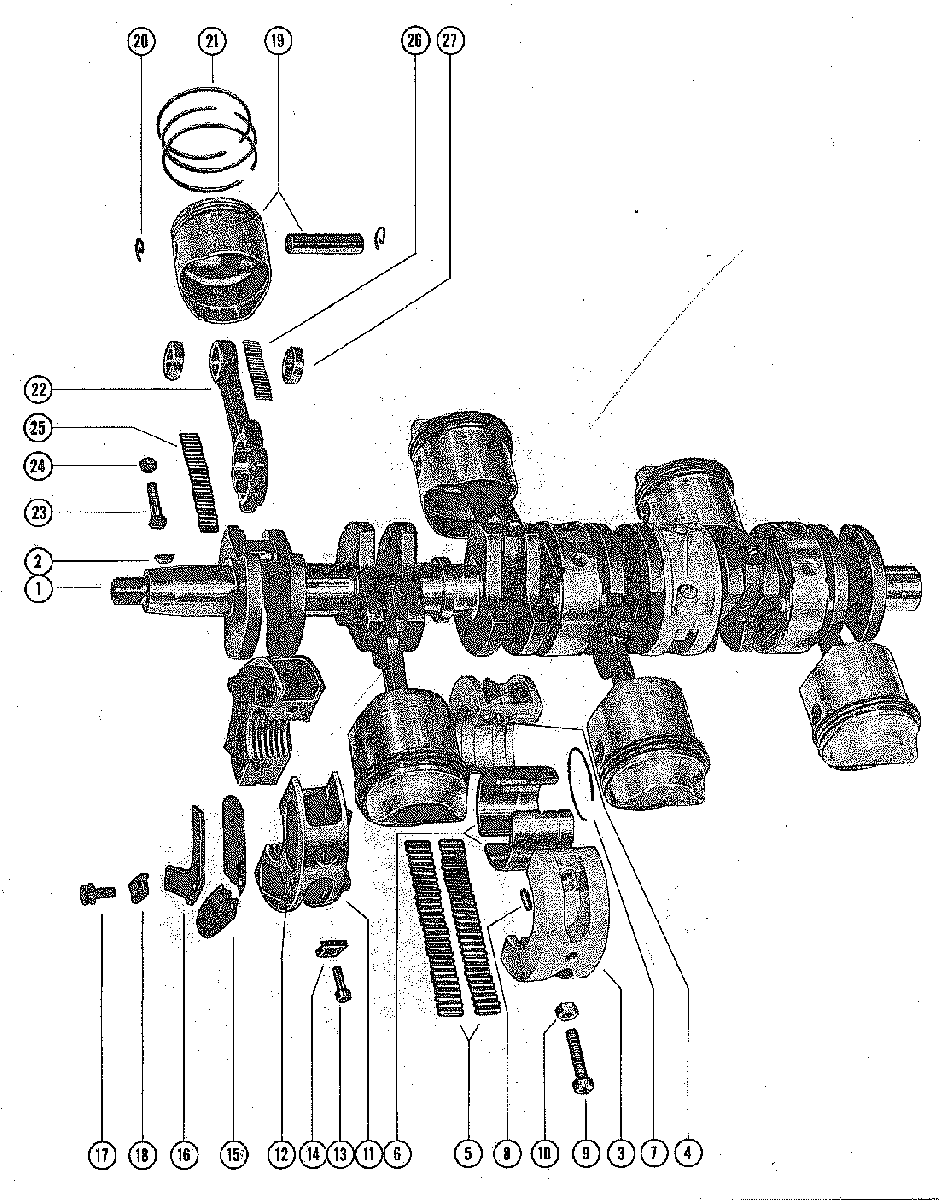

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 900 (6 CYL.) 1766824 THRU 1869775
-
№АртикулНазвание
-
1420-3351A3 CRANKSHAFTCRANKSHAFT
-
228-45554 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
3531-1884A3 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
417-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
529-714221 BEARING, NEEDLE - OUTER RACEBEARING, NEEDLE - OUTER RACE
-
626113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
753-26933 RING, SNAP - OUTER RACERING, SNAP - OUTER RACE
-
817-31245 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
910-22968 SCRREW, CENTER MAIN BEARING CLAMPINGSCRREW, CENTER MAIN BEARING CLAMPING
-
1011-20184 NUT, BEARING CLAMPING SCREWNUT, BEARING CLAMPING SCREW
-
11533-2761A3 MAIN BEARING ASSEMBLY, VALVE TYPEMAIN BEARING ASSEMBLY, VALVE TYPE
-
1217-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1310-25313 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
1411-29469 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1534-88498A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1634-20053 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1710-77280 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
1811-29469 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
19732-2735A2 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2040-32118 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2139-32921A12 RING, PISTON (5/64" THICK)RING, PISTON (5/64" THICK)
-
22611-1885A4 CONNECTING ROD AND CAP ASSEMBLY
SERIAL 00000000-01850448CONNECTING ROD AND CAP ASSEMBLY
SERIAL 00000000-01850448 -
2310-45379 >SCREW, CONNECTING ROD-
SERIAL 00000000-01850448>SCREW, CONNECTING ROD-
SERIAL 00000000-01850448 -
2411-20061 NUT, CONNECTING ROD SCREW
SERIAL 00000000-01850448NUT, CONNECTING ROD SCREW
SERIAL 00000000-01850448 -
2529-47897 BEARING, NEEDLE -CRANKPIN
SERIAL 00000000-01850448BEARING, NEEDLE -CRANKPIN
SERIAL 00000000-01850448 -
2629-39656 BEARIGN, NEEDLE- PISTON PIN
SERIAL 00000000-01850448BEARIGN, NEEDLE- PISTON PIN
SERIAL 00000000-01850448 -
2712-29681 WASHER, NEEDLE LOCATING
SERIAL 00000000-01850448WASHER, NEEDLE LOCATING
SERIAL 00000000-01850448 -
22531-1884A3 CONNECTING ROD AND CAP ASSEMBLY
SERIAL 00000000-01850448CONNECTING ROD AND CAP ASSEMBLY
SERIAL 00000000-01850448 -
2310-45379 SCREW, CONNECTING ROD
SERIAL 01850449-09999999SCREW, CONNECTING ROD
SERIAL 01850449-09999999 -
2411-20061 NUT, CONNECTING ROD SCREW
SERIAL 01850449-09999999NUT, CONNECTING ROD SCREW
SERIAL 01850449-09999999 -
2529-47897 BEARING, NEEDLE - CRANKPIN
SERIAL 01850449-09999999BEARING, NEEDLE - CRANKPIN
SERIAL 01850449-09999999 -
2629-39656 BEARING, NEEDLE - PISTON PIN
SERIAL 01850449-09999999BEARING, NEEDLE - PISTON PIN
SERIAL 01850449-09999999 -
2712-29681 WASHER, NEEDLE LOCATING
SERIAL 01850449-09999999WASHER, NEEDLE LOCATING
SERIAL 01850449-09999999 -
--732-2739A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
SERIAL 01850449-09999999PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
SERIAL 01850449-09999999 -
--39-33945A12 RING, PISTON (.015 OVERSIZE) - 5/64" THICKRING, PISTON (.015 OVERSIZE) - 5/64" THICK
