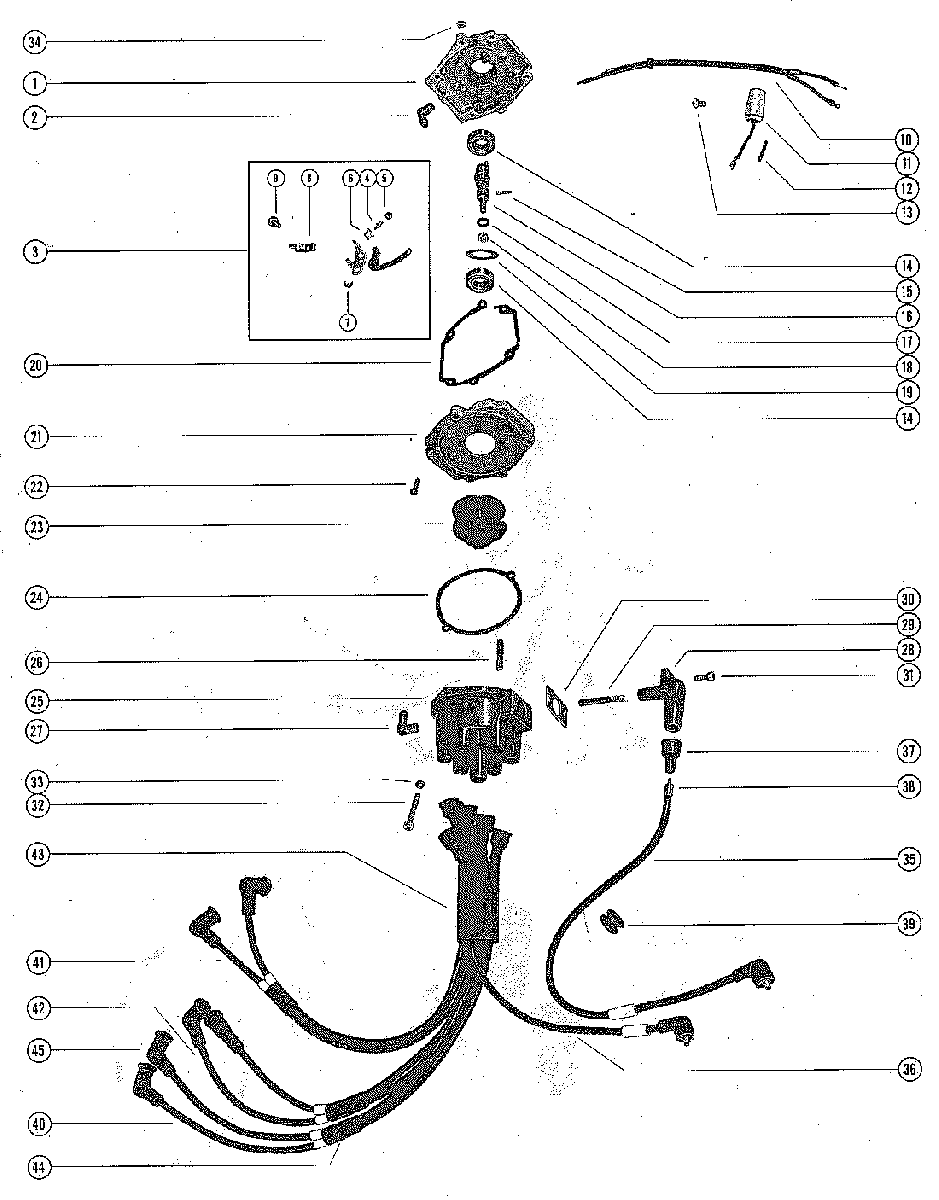

DISTRIBUTOR ASSEMBLY, COMPLETE для Mercury - 900 (6 CYL.) 1766824 THRU 1869775
-
№АртикулНазвание
-
-393-1282A17 DISTRIBUTOR ASSEMBLY, COMPLETEDISTRIBUTOR ASSEMBLY, COMPLETE
-
1393-1282 HOUSING, PRIMARYHOUSING, PRIMARY
-
222-25885A1 ELBOW ASSEMBLY, VENT HOSE- PRIMARY HOUSINGELBOW ASSEMBLY, VENT HOSE- PRIMARY HOUSING
-
3393-1504A11 BREAKER ASSEMBLY, COMPLETEBREAKER ASSEMBLY, COMPLETE
-
416-29230 STUD, PRIMARY LEAD AND TENSION SPRINGSTUD, PRIMARY LEAD AND TENSION SPRING
-
511-29236 NUT, PRIMARY LEAD FASTENINGNUT, PRIMARY LEAD FASTENING
-
6393-1586 GROMMET, PLASTIC - BREAKER ASSEMBLYGROMMET, PLASTIC - BREAKER ASSEMBLY
-
753-21058 "E" RING, BREAKER TO PIVOT PIN"E" RING, BREAKER TO PIVOT PIN
-
8393-1287A2 CAM WICK AND HOLDER ASSEMBLYCAM WICK AND HOLDER ASSEMBLY
-
910-20597 SCREW, BREAKER HOLDER TO HOUSINGSCREW, BREAKER HOLDER TO HOUSING
-
10393-1656 WIRE, PRIMERY GROUNDWIRE, PRIMERY GROUND
-
11393-1283A1 CONDENSERCONDENSER
-
1238700 SNUBBER, CAPACITORSNUBBER, CAPACITOR
-
1310-29434 SCREW, CONDENSER TO HOUSINGSCREW, CONDENSER TO HOUSING
-
1430-26379 BEARING, BALL - CAM SHAFTBEARING, BALL - CAM SHAFT
-
1517-25319 PIN, ROLL - CAM SHAFTPIN, ROLL - CAM SHAFT
-
16393-1779A2 SHAFT ASSEMBLY - DISTRIBUTOR CAMSHAFT ASSEMBLY - DISTRIBUTOR CAM
-
1725-26543 "O"RING, CAM SHAFT"O"RING, CAM SHAFT
-
1823-28933 BUSHING, DISTRIBUTOR CAM SHAFTBUSHING, DISTRIBUTOR CAM SHAFT
-
1913-26917 WASHER, WAVE - BALL BEARING TENSIONWASHER, WAVE - BALL BEARING TENSION
-
2027-26412 GASKET, HOUSING TO ADAPTORGASKET, HOUSING TO ADAPTOR
-
21393-1278 ADAPTOR, HOUSING TO DISTRIBUTOR CAPADAPTOR, HOUSING TO DISTRIBUTOR CAP
-
2210-32651 SCREW, ADAPTOR TO HOUSINGSCREW, ADAPTOR TO HOUSING
-
23393-1280A1 ROTOR, DISTRIBUTORROTOR, DISTRIBUTOR
-
2427-36268 GASKET, DISTRIBUTOR CAP TO ADAPTORGASKET, DISTRIBUTOR CAP TO ADAPTOR
-
25393-1927A9 DISTRIBUTOR CAP ASSEMBLYDISTRIBUTOR CAP ASSEMBLY
-
26393-1293A1 >BRUSH AND SPRING ASSEMBLY>BRUSH AND SPRING ASSEMBLY
-
2722-31521 ELBOW, VENT HOSE - DISTRIBUTOR CAPELBOW, VENT HOSE - DISTRIBUTOR CAP
-
28F1277 SIDE INLET ASSEMBLYSIDE INLET ASSEMBLY
-
29393-1292A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
3027-26447 GASKET, SIDE INLET TO DISTRIBUTOR CAPGASKET, SIDE INLET TO DISTRIBUTOR CAP
-
3110-29167 SCREW, SIDE INLET TO DISTRIBUTOR CAPSCREW, SIDE INLET TO DISTRIBUTOR CAP
-
3210-29158 SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSINGSCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING
-
3312-89302 WASHER, DISTRIBUTOR CAP FASTENING SCREWWASHER, DISTRIBUTOR CAP FASTENING SCREW
-
3411-21806 NUT, DISTRIBUTOR CAP FASTENING SCREWNUT, DISTRIBUTOR CAP FASTENING SCREW
-
3584-821945A37 HIGH TENSION CABLE ASSEMBLY (COIL 2)HIGH TENSION CABLE ASSEMBLY (COIL 2)
-
3684-821945A27 HIGH TENSION CABLE ASSEMBLY (COIL 1)HIGH TENSION CABLE ASSEMBLY (COIL 1)
-
3785-94589 SLEEVE, TERMINAL END COVERSLEEVE, TERMINAL END COVER
-
388M0084600 CONNECTOR, HIGH TENSION CABLE (CAP END)CONNECTOR, HIGH TENSION CABLE (CAP END)
-
3925-26547 GROMMET, HIGH TENSION CABLEGROMMET, HIGH TENSION CABLE
-
4084-813715A1 SPARK PLUG LEAD ASSEMBLY (3, 4 AND 5)
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY (3, 4 AND 5)
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
4184-813715A1 SPARK PLUG LEAD ASSEMBLY (2 AND 6)
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY (2 AND 6)
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
4284-813715A1 SPARK PLUG LEAD ASSEMBLY (1)
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY (1)
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
388M0084600 CONNECTOR, SPARK PLUG LEADCONNECTOR, SPARK PLUG LEAD
-
3785-94589 SLEEVE, TERMINAL END COVERSLEEVE, TERMINAL END COVER
-
4332-30574 SLEEVE, SPARK PLUG LEADSLEEVE, SPARK PLUG LEAD
-
4432-46768 SLEEVE, SPARK PLUG LEAD (1 1/2")SLEEVE, SPARK PLUG LEAD (1 1/2")
-
4432-46768 SLEEVE, SPARK PLUG LEAD (5 1/8")SLEEVE, SPARK PLUG LEAD (5 1/8")
-
4585-63709A1 PROTECTOR, SPARK PLUG LEADPROTECTOR, SPARK PLUG LEAD
