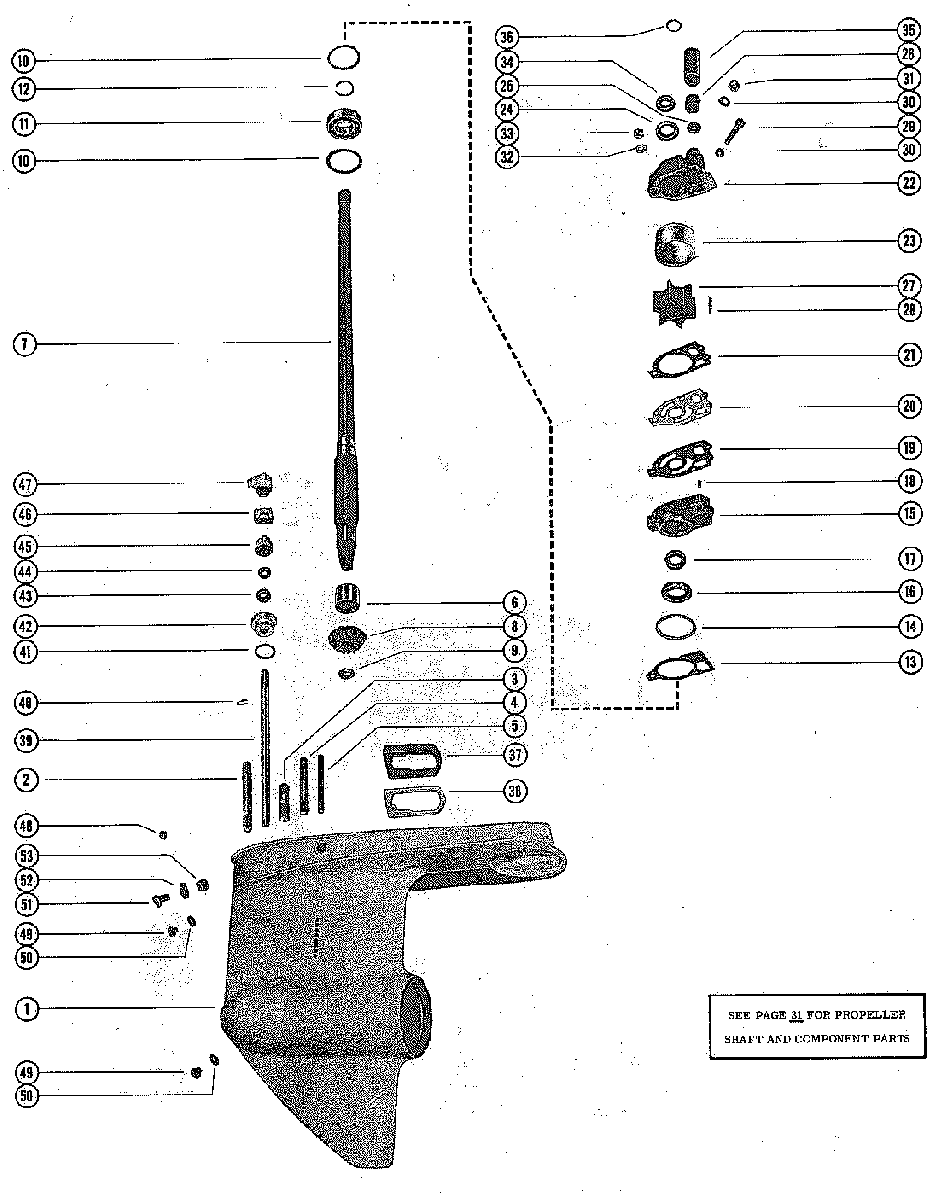

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 900 (6 CYL.) 1766824 THRU 1869775
-
№АртикулНазвание
-
-1623-3912A8 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)- SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (STANDARD)- SEE NOTE BELOW
-
11623-5244A14 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16")
-
316-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 31/32")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 31/32")
-
416-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 7/16")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 7/16")
-
516-57919 STUD, WATER PUMP BASE AND BOTY TO GEAR HOUSING (3 5/16")STUD, WATER PUMP BASE AND BOTY TO GEAR HOUSING (3 5/16")
-
631-32898T BEARING, ROLLER -DRIVE SHAFTBEARING, ROLLER -DRIVE SHAFT
-
745-38459 DRIVE SHAFT (STANDARD)DRIVE SHAFT (STANDARD)
-
843-31419 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
911-30932 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1015-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSINGSHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING
-
1130-63326T BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
1253-30726 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
1015-30278A1 SHIM, WATER PUMP BASE TOG EARHOUSINGSHIM, WATER PUMP BASE TOG EARHOUSING
-
1327-32438 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1425-30224 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1546-48758A1 WATER PUMP BASE ASSEMBLY
SERIAL 00000000-01852148WATER PUMP BASE ASSEMBLY
SERIAL 00000000-01852148 -
1546-48758A1 WATER PUMP BASE ASSEMBLY
SERIAL 01852149-09999999WATER PUMP BASE ASSEMBLY
SERIAL 01852149-09999999 -
1626-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1726-16977 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1817-8M0084627 SDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYSDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
1927-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
20324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2127-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2246-96148A8 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2330915 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2426-16977 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
2512-36446 WASHER, NYLON - WATER INLET TUBEWASHER, NYLON - WATER INLET TUBE
-
2626-36557 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2747-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2817-8M0034466 PIN, IMPELLER DRIVEPIN, IMPELLER DRIVE
-
2910-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4)
-
3013-26992 LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4)LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4)
-
3111-29598 NUT, WATER PUMP BODY FASTENING STUDS (1/4)NUT, WATER PUMP BODY FASTENING STUDS (1/4)
-
3213-26993 LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16)LOCKWASHER, WATER PUMP BODY FASTENING STUD (5/16)
-
3311-28770 NUT, WATER PUMP BODY FASTENING STUD (5/16)NUT, WATER PUMP BODY FASTENING STUD (5/16)
-
3425-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
3523-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3625-30613 "O" RING, UPPER - DRIVE SHAFT"O" RING, UPPER - DRIVE SHAFT
-
3737641001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
3838051 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
3976062A1 SHAFT, SHIFT - LOWERSHAFT, SHIFT - LOWER
-
4053-29641 CLIP, REETAINING -SHIFT SHAFTCLIP, REETAINING -SHIFT SHAFT
-
4125-25439 "O" RIING, SHFIT SHAFT BUSHING"O" RIING, SHFIT SHAFT BUSHING
-
4223-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4326-892361 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
4412-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4537422 CAM, LOWER - REVERSE LOCKINGCAM, LOWER - REVERSE LOCKING
-
4637421 CAM, DRIVE- REVERSE LOCKINGCAM, DRIVE- REVERSE LOCKING
-
4737420 CAM, UPPER - REVERSE LOCKINGCAM, UPPER - REVERSE LOCKING
-
4822-390721 PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLEPLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE
-
4910-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
5012-191833 WASHER, GRESAE FILLER AND VENT HOLE SCREWWASHER, GRESAE FILLER AND VENT HOLE SCREW
-
5110-29608 SCREW, GEAR HOUSING FLUSHING HOLESCREW, GEAR HOUSING FLUSHING HOLE
-
5227-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREWGASKET, GEAR HOUSING FLUSHING HOLE SCREW
-
5326-29612 SEAL, GEAR HOUSING FLUSHING HOLESEAL, GEAR HOUSING FLUSHING HOLE
