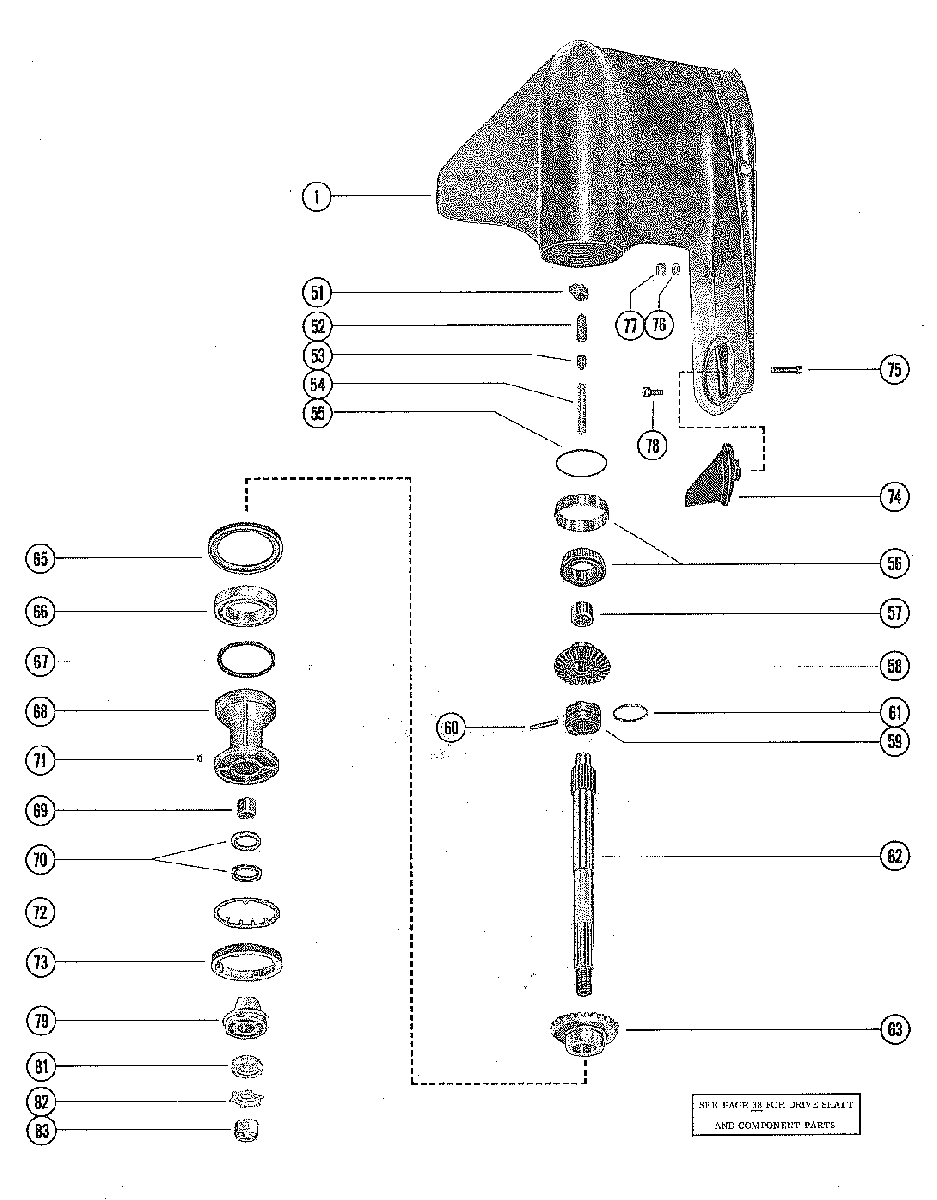

GEAR HOUSING ASSEMBLY, COMPLETE (SERIAL GROUP #2) (PAGE 2) для Mercury - 850 (4 CYL.) 9110014 THRU 9177625
-
№АртикулНазвание
-
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (MERC 850XS) SEE NOTE BELOWGEAR HOUSING ASSEMBLY, COMPLETE (MERC 850XS) SEE NOTE BELOW
-
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (MERC 850 LONG)SEE NOTE BELGEAR HOUSING ASSEMBLY, COMPLETE (MERC 850 LONG)SEE NOTE BEL
-
11623-7339A1 GEAR HOUSING ASSEMBLY (MERC 850XS) SEE PAGE 38 FOR BREAKDOWGEAR HOUSING ASSEMBLY (MERC 850XS) SEE PAGE 38 FOR BREAKDOW
-
11655-7333T23 GEAR HOUSING ASSEMBLY (MERC 850 LONG) SEE PAGE 38 FOR BREAKGEAR HOUSING ASSEMBLY (MERC 850 LONG) SEE PAGE 38 FOR BREAK
-
51760394 CAM, SHIFTCAM, SHIFT
-
5230625 FOLLOWER, CAMFOLLOWER, CAM
-
5330624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5424-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5515-30923A1 SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)SHIM, BEARING OUTER RACE TO GEAR HSG. (.002-3-5-10)
-
5631-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5731-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5843-75314T2 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5952-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6017-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
6124-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6244-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
6343-75315 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6512-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSINGWASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
-
6630-31265 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6725-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6873800A1 BEARING CARRIER ASSEMBLY (MERC 850XS)BEARING CARRIER ASSEMBLY (MERC 850XS)
-
6852132T1 BEARING CARRIER ASSEMBLY (MERC 850 LONG)BEARING CARRIER ASSEMBLY (MERC 850 LONG)
-
6931-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7026-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
--25-32546 "O" RING, BEARING CARRIER (MERC 850XS)"O" RING, BEARING CARRIER (MERC 850XS)
-
7128-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7214-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7352699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7497-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7510-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7612-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
7711-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
7810-65210 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
-
7965091Q01 THRUST HUBTHRUST HUB
-
8112-31211Q03 WASHER, SPLINED - PROPELLER NUTWASHER, SPLINED - PROPELLER NUT
-
8214-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8311-52707Q1 NUT, PROPELLERNUT, PROPELLER
