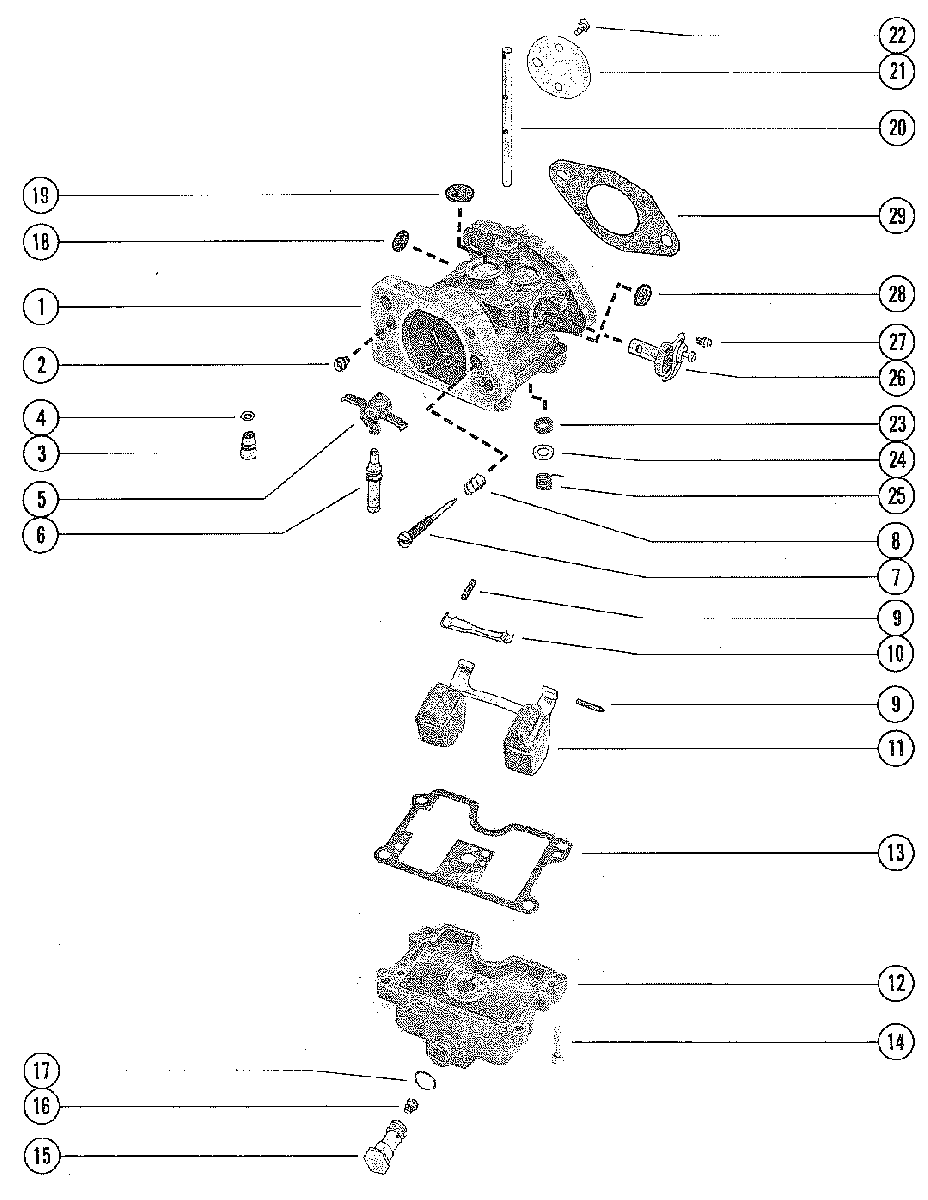

CARBURETOR ASSEMBLY для Mercury - 850 (4 CYL.) 9110014 THRU 9177625

  • №
    Артикул
    Название
  • 1
    1379-6071A4 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4366802 THRU 4423111
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4366802 THRU 4423111
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
  • 1
    1379-6071A58 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
  • 2
    1395-6201 JET, VENT BOWL (.080)
    UNITED STATES 4366802 THRU 4423111
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
    JET, VENT BOWL (.080)
    UNITED STATES 4366802 THRU 4423111
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
  • 2
    1395-6207 JET, VENT BOWL (.072)
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
    JET, VENT BOWL (.072)
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
  • 3
    1395-83181 INLET NEEDLE AND SEAT
    INLET NEEDLE AND SEAT
  • 4
    90-8M0143356 GASKET, INLET NEEDLE AND SEAT
    GASKET, INLET NEEDLE AND SEAT
  • 5
    1395-6685 VENTURI ASSEMBLY
    VENTURI ASSEMBLY
  • 6
    90-8M0143356 NOZZLE
    NOZZLE
  • 7
    90-8M0143356 IDLE NEEDLE
    IDLE NEEDLE
  • 8
    90-8M0143356 SPRING, IDLE MIXTURE
    SPRING, IDLE MIXTURE
  • 9
    90-8M0143356 PIN, FLOAT
    PIN, FLOAT
  • 10
    90-8M0143356 LEVER, FLOAT
    LEVER, FLOAT
  • 11
    19273 FLOAT
    FLOAT
  • 12
    1395-6195 FUEL BOWL
    UNITED STATES 4366802 THRU 4423111
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
    FUEL BOWL
    UNITED STATES 4366802 THRU 4423111
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
  • 12
    1395-6488 FUEL BOWL
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
    FUEL BOWL
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
  • 13
    90-8M0143356 GASKET, FUEL BOWL
    GASKET, FUEL BOWL
  • 14
    90-8M0143356 SCREW, FUEL BOWL
    SCREW, FUEL BOWL
  • 15
    1395-6199 PLUG, MAIN JET
    PLUG, MAIN JET
  • 16
    1395-6202 JET MAIN (.088)
    UNITED STATES 4366802 THRU 4423111 BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
    JET MAIN (.088)
    UNITED STATES 4366802 THRU 4423111 BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
  • 16
    1395-6247 JET, MAIN (.090)
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
    JET, MAIN (.090)
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
  • 17
    90-8M0143356 GASKET, MAIN JET PLUG
    GASKET, MAIN JET PLUG
  • 18
    90-8M0143356 SCREEN, FUEL INLET
    SCREEN, FUEL INLET
  • 19
    90-8M0143356 WELCH PLUG (9/16")
    WELCH PLUG (9/16")
  • 20
    1395-4807 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 21
    1395-6196 VALVE, THROTTLE
    VALVE, THROTTLE
  • 22
    90-8M0143356 SCREW, VALVE TO THROTTLE SHAFT
    SCREW, VALVE TO THROTTLE SHAFT
  • 23
    1395-6204 SEAL, THROTTLE SHAFT
    SEAL, THROTTLE SHAFT
  • 24
    1395-6203 WASHER, THROTTLE SHAFT
    WASHER, THROTTLE SHAFT
  • 25
    90-8M0143356 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 26
    1395-6198 VALVE ASSEMBLY, ENRICHMENT
    VALVE ASSEMBLY, ENRICHMENT
  • 27
    90-8M0143356 SCREW, ENRICHMENT BRACKET
    SCREW, ENRICHMENT BRACKET
  • 28
    90-8M0143356 WELCH PLUG (7/16")
    WELCH PLUG (7/16")
  • 29
    27-733771 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • --
    1395-6200 GASKET KIT
    GASKET KIT
  • --
    812953 REPAIR PARTS KIT
    UNITED STATES 4366802 THRU 4423111
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
    REPAIR PARTS KIT
    UNITED STATES 4366802 THRU 4423111
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7082022
  • --
    812953 REPAIR PARTS KIT
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
    REPAIR PARTS KIT
    UNITED STATES 4423112 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7082023 AND UP
