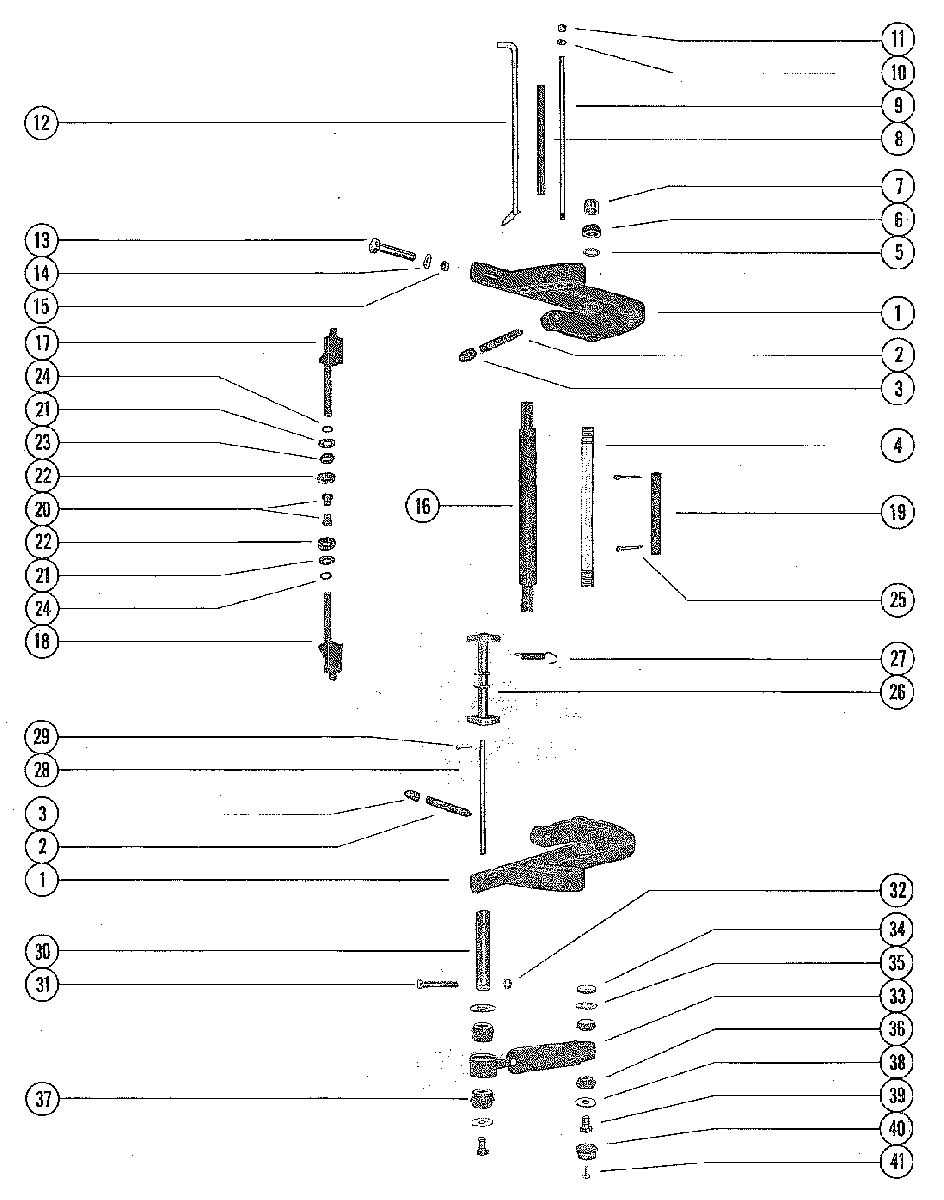

CLAMP BRACKET AND REVERSE LOCK для Mercury - 850 (4 CYL.) 9110014 THRU 9177625

  • №
    Артикул
    Название
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
    0 ₽
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
    0 ₽
  • 3
    75043 COVER, THUMB SCREW
    COVER, THUMB SCREW
    0 ₽
  • 4
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    2 820 ₽
  • 5
    12-52864 WASHER, CLAMP BRACKET TILT TUBE
    WASHER, CLAMP BRACKET TILT TUBE
    0 ₽
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
    330 ₽
  • 7
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
    0 ₽
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
    0 ₽
  • 9
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
    0 ₽
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
    140 ₽
  • 11
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
    110 ₽
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
    4 970 ₽
  • 13
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
    BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
    0 ₽
  • 14
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
    570 ₽
  • 13
    10-68299 BOLT, CLAMP BRACKET TO TRANSOM (3")
    BOLT, CLAMP BRACKET TO TRANSOM (3")
    500 ₽
  • 14
    12-68300 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
    0 ₽
  • 15
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
    410 ₽
  • 16
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
    6 970 ₽
  • 17
    76386 TILT LOCK ASSEMBLY, STARBOARD
    MERC 850XS AND MERC 850 LONG
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    TILT LOCK ASSEMBLY, STARBOARD
    MERC 850XS AND MERC 850 LONG
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    0 ₽
  • 18
    76385T TILT LOCK ASSEMBLY, PORT
    MERC 850XS AND MERC 850 LONG
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    TILT LOCK ASSEMBLY, PORT
    MERC 850XS AND MERC 850 LONG
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    3 480 ₽
  • 19
    47802 TUBE, TILT LOCK
    MERC 850XS AND MERC 850 LONG
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    TUBE, TILT LOCK
    MERC 850XS AND MERC 850 LONG
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    0 ₽
  • 20
    23-47803 BUSHING, TILT LOCK TUBE
    MERC 850XS AND MERC 850 LONG
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    BUSHING, TILT LOCK TUBE
    MERC 850XS AND MERC 850 LONG
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    0 ₽
  • 21
    13-69150 WASHER, TILT LOCK TUBE
    MERC 850XS AND MERC 850 LONG
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    WASHER, TILT LOCK TUBE
    MERC 850XS AND MERC 850 LONG
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    270 ₽
  • 17
    76386 TILT LOCK ASSEMBLY, STARBOARD
    MERC 850 LONG UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    TILT LOCK ASSEMBLY, STARBOARD
    MERC 850 LONG UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    0 ₽
  • 18
    76385T TILT LOCK ASSEMBLY, PORT
    MERC 850 LONG UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    TILT LOCK ASSEMBLY, PORT
    MERC 850 LONG UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    3 480 ₽
  • 19
    79659 TUBE, TILT LOCK
    MERC 850 LONG
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    TUBE, TILT LOCK
    MERC 850 LONG
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    0 ₽
  • 21
    13-69150 WASHER, WAVE - TILT LOCK (STARBOARD SIDE ONLY)
    MERC 850 LONG UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    WASHER, WAVE - TILT LOCK (STARBOARD SIDE ONLY)
    MERC 850 LONG UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    270 ₽
  • 22
    26-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)
    MERC 850 LONG
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    OIL SEAL, SWIVEL BRACKET (TILT LOCK)
    MERC 850 LONG
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    0 ₽
  • 23
    12-76388 WASHER, TILT LOCK (STARBOARD SIDE ONLY)
    MERC 850 LONG
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    WASHER, TILT LOCK (STARBOARD SIDE ONLY)
    MERC 850 LONG
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    0 ₽
  • 24
    25-627021 "O" RING, TILT LOCK
    MERC 850 LONG UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    "O" RING, TILT LOCK
    MERC 850 LONG UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    120 ₽
  • 25
    18-47959 COTTER PIN, TILT LOCK
    COTTER PIN, TILT LOCK
    280 ₽
  • 26
    87431 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
    0 ₽
  • 27
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
    0 ₽
  • 28
    56349 SHAFT, REVERSE LOCK PIVOT
    SHAFT, REVERSE LOCK PIVOT
    0 ₽
  • 29
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
    280 ₽
  • 30
    55-696531 PIN, LOWER SHOCK MOUNTING (MERC 850XS)
    PIN, LOWER SHOCK MOUNTING (MERC 850XS)
    0 ₽
  • 30
    55-28414 PIN, LOWER SHOCK MOUNTING MERC 850 LONG
    MERC 850 LONG
    PIN, LOWER SHOCK MOUNTING MERC 850 LONG
    MERC 850 LONG
    0 ₽
  • 31
    10-21937 SCREW, LOWER SHOCK PIN (2")
    MERC 850 LONG
    SCREW, LOWER SHOCK PIN (2")
    MERC 850 LONG
    210 ₽
  • 32
    11-20184 NUT, LOWER SHOCK PIN SCREW
    MERC 850 LONG
    NUT, LOWER SHOCK PIN SCREW
    MERC 850 LONG
    120 ₽
  • 33
    55-58780A7 SHOCK ABSORBER
    SHOCK ABSORBER
    32 410 ₽
  • 34
    23-73203 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
    SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
    0 ₽
  • 35
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
    0 ₽
  • 36
    23-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    0 ₽
  • 37
    23-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    0 ₽
  • 38
    12-28421 WASHER, UPPER AND LOWER BUSHING (OUTER)
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    WASHER, UPPER AND LOWER BUSHING (OUTER)
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    260 ₽
  • 39
    10-69375A1 SCREW, UPPER AND LOWER SHOCK MOUNTING IPN (3/4")
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    SCREW, UPPER AND LOWER SHOCK MOUNTING IPN (3/4")
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    0 ₽
  • 38
    12-69374 WASHER, UPPER/LOWER SHOCK MOUNTING PIN (LOWER)
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    WASHER, UPPER/LOWER SHOCK MOUNTING PIN (LOWER)
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    0 ₽
  • 39
    10-69375 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    SCREW, UPPER AND LOWER SHOCK MOUNTING PIN
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    0 ₽
  • 40
    70679 COVER, UPPER AND LOWER SHOCK MOUNTING PIN
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    COVER, UPPER AND LOWER SHOCK MOUNTING PIN
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    0 ₽
  • 41
    10-37655 SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    150 ₽
