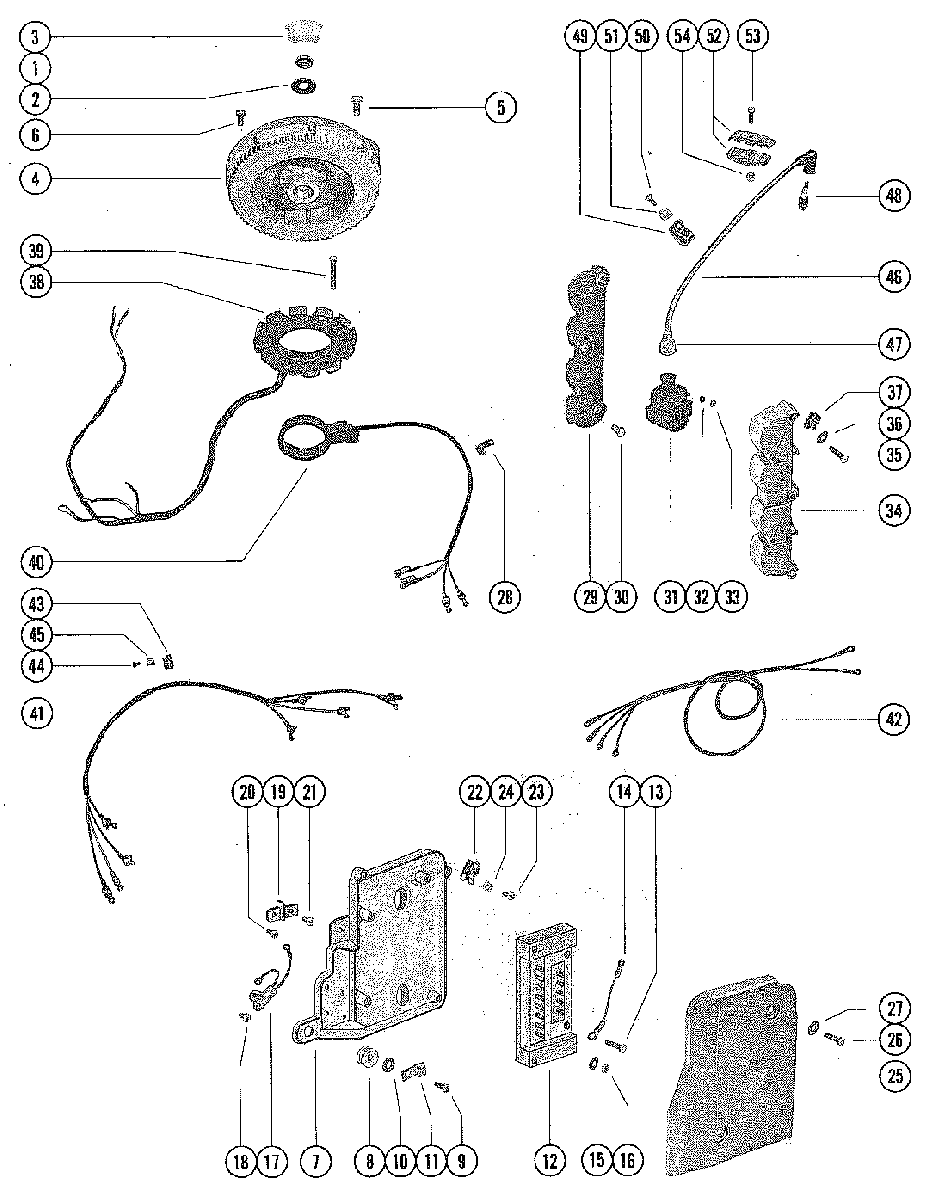

FLYWHEEL, STATOR AND IGNITION COIL для Mercury - 850 (4 CYL.) 9110014 THRU 9177625

  • №
    Артикул
    Название
  • 1
    11-52901 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 4
    248-8722A6 FLYWHEEL ASSEMBLY
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    FLYWHEEL ASSEMBLY
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
  • 4
    248-8722A6 FLYWHEEL ASSEMBLY
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
    FLYWHEEL ASSEMBLY
    UNITED STATES 4590512 AND UP
    AUSTRALIA 8043775 AND UP
    BELGIUM 9139350 AND UP
    CANADA 7091098 AND UP
  • 5
    10-68997 SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
    SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
  • 6
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
  • 7
    90332 PLATE, SWITCH BOX
    PLATE, SWITCH BOX
  • 8
    25-57009001 GROMMET, SWITCH BOX PLATE
    GROMMET, SWITCH BOX PLATE
  • 9
    10-824941 SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
    SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
  • 10
    12-56720 WASHER, SWITCH BOX PLATE SCREW
    WASHER, SWITCH BOX PLATE SCREW
  • 11
    54-47483 "J" CLIP, SWITCH BOX WIRES AND FUEL LINE
    "J" CLIP, SWITCH BOX WIRES AND FUEL LINE
  • 12
    332-5772A7 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 13
    10-20619 SCREW, SWITCH BOX TO PLATE (1 3/8")
    SCREW, SWITCH BOX TO PLATE (1 3/8")
  • 14
    84-65999A5 WIRE ASSEMBLY
    WIRE ASSEMBLY
  • 15
    13-26996 LOCKWASHER, SWITCH BOX TERMINAL
    LOCKWASHER, SWITCH BOX TERMINAL
  • 16
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 17
    58124A19 MERCURY SWITCH ASSEMBLY
    MERCURY SWITCH ASSEMBLY
  • 18
    10-37571 SCREW, MERCURY SWITCH TO PLATE (1/2")
    SCREW, MERCURY SWITCH TO PLATE (1/2")
  • 19
    86-66986 TERMINAL BLOCK
    TERMINAL BLOCK
  • 20
    10-38055 SCREW, TERMINAL BLOCK TO PLATE (5/8")
    SCREW, TERMINAL BLOCK TO PLATE (5/8")
  • 21
    10-37655 SCREW, WIRE TO TERMINAL BLOCK (1/2")
    SCREW, WIRE TO TERMINAL BLOCK (1/2")
  • 22
    54-23567 CLIP, WIRES AND HARNESS
    CLIP, WIRES AND HARNESS
  • 23
    10-62568 SCREW, CLIP TO PLATE (3/8")
    SCREW, CLIP TO PLATE (3/8")
  • 24
    8M0084613 "D" WASHER, CLIP SCREW
    "D" WASHER, CLIP SCREW
  • 25
    73407 COVER, SWITCH BOX
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    COVER, SWITCH BOX
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
  • 26
    10-20616 SCREW, COVER TO PLATE (1/2")
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    SCREW, COVER TO PLATE (1/2")
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
  • 27
    12-20533 WASHER, COVER SCREW
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
    WASHER, COVER SCREW
    UNITED STATES 4366802 THRU 4590511
    BELGIUM 9110014 THRU 9139349
    CANADA 7071373 THRU 7091097
  • 28
    54-47483 "J" CLAMP, TRIGGER PLATE HARNESS
    "J" CLAMP, TRIGGER PLATE HARNESS
  • 29
    73395 PLATE, MOUNTING - IGNITION COIL
    PLATE, MOUNTING - IGNITION COIL
  • 30
    10-28668 SCREW, MOUNTING PLATE TO CRANKCASE (7/8")
    SCREW, MOUNTING PLATE TO CRANKCASE (7/8")
  • 31
    339-5288T2 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 32
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 33
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 34
    87554 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 35
    10-88856 SCREW, COVER TO MOUNTING PLATE (2")
    SCREW, COVER TO MOUNTING PLATE (2")
  • 36
    12-30164 WASHER, COVER SCREW
    WASHER, COVER SCREW
  • 37
    54-22740 CLIP, NYLON - IGNITION COIL COVER SCREW
    CLIP, NYLON - IGNITION COIL COVER SCREW
  • 38
    398-5454A26 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 39
    10-63136 SCREW, STATOR TO UPPER END CAP (7/8")
    SCREW, STATOR TO UPPER END CAP (7/8")
  • 40
    96453A2 TRIGGER PLATE ASSEMBLY SEE NOTE ON GRID E4
    SEE NOTE ON GRID E4
    TRIGGER PLATE ASSEMBLY SEE NOTE ON GRID E4
    SEE NOTE ON GRID E4
  • 41
    84-73362A1 HARNESS ASSEMBLY, IGNITION COIL
    SEE NOTE ON GRID E4
    HARNESS ASSEMBLY, IGNITION COIL
    SEE NOTE ON GRID E4
  • 42
    84-74901 HARNESS, GROUNDING
    HARNESS, GROUNDING
  • 43
    54-28700 CLAMP, HARNESS ATTACHING
    CLAMP, HARNESS ATTACHING
  • 44
    10-48408 SCREW, CLAMP TO CRANKCASE (1/2")
    SCREW, CLAMP TO CRANKCASE (1/2")
  • 45
    12-56681 WASHER, HARNESS CLAMP SCREW
    WASHER, HARNESS CLAMP SCREW
  • 46
    84-813715A1 WIRE ASSEMBLY, SPARK PLUB
    WIRE ASSEMBLY, SPARK PLUB
  • 47
    332-2854T01 BOOT, IGNITION COIL END
    BOOT, IGNITION COIL END
  • 48
    33-97180Q SPARK PLUG (AC#V40FFM)
    SPARK PLUG (AC#V40FFM)
  • 49
    54-45806 CLAMP, SPARK PLUG WIRE
    CLAMP, SPARK PLUG WIRE
  • 50
    10-48408 SCREW, CLAMP TO EXHAUST MANIFOLD COVER (1/2")
    SCREW, CLAMP TO EXHAUST MANIFOLD COVER (1/2")
  • 51
    8M0084613 "D" WASHER, CLAMP SCREW
    "D" WASHER, CLAMP SCREW
  • 52
    63319 RETAINER, SPARK PLUG WIRE
    RETAINER, SPARK PLUG WIRE
  • 53
    10-46378 SCREW, RETAINER TO CYLINDER BLOCK COVER (1")
    SCREW, RETAINER TO CYLINDER BLOCK COVER (1")
  • 54
    11-20013 NUT, RETAINER SCREW
    NUT, RETAINER SCREW
