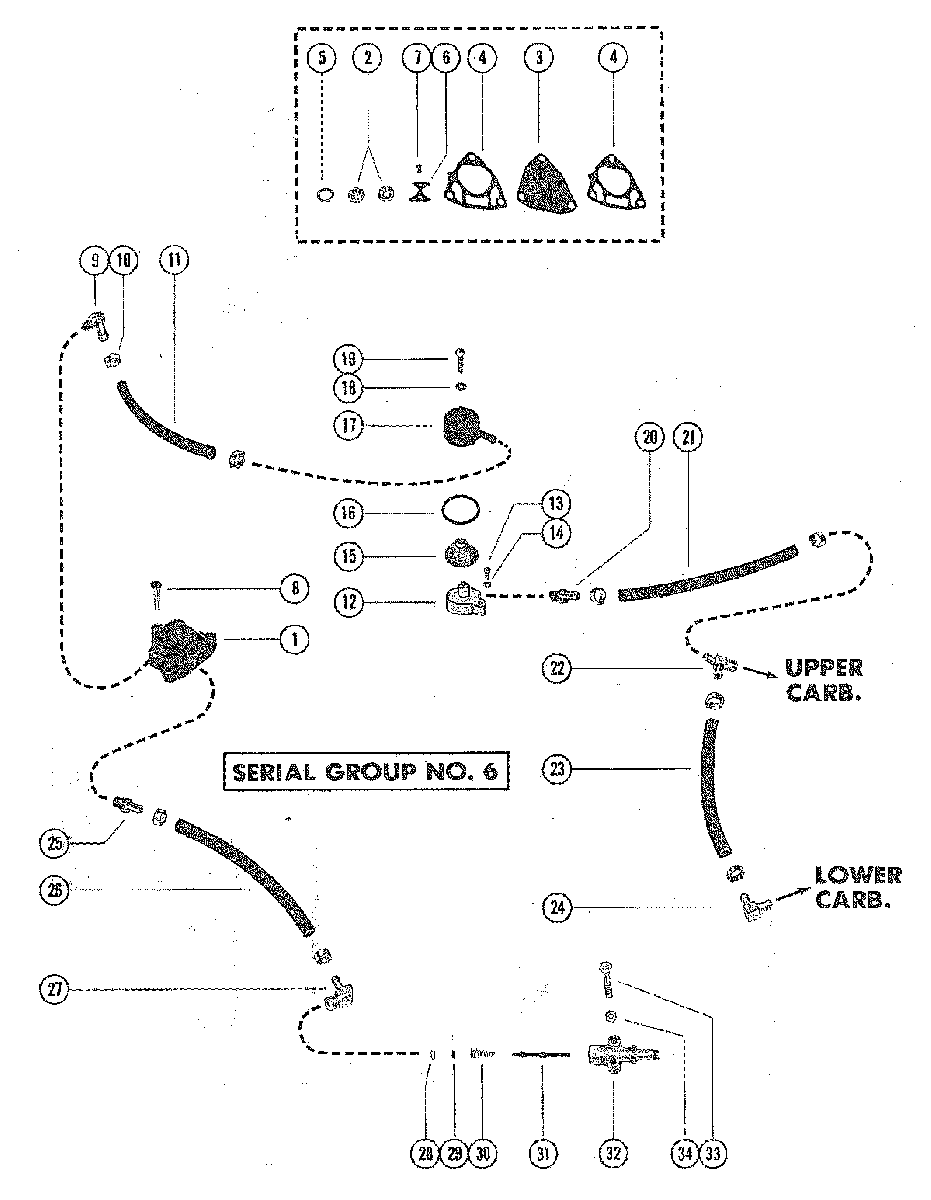

FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP NO. 6) для Mercury - 850 (4 CYL.) 8005440 THRU 8043774
-
№АртикулНазвание
-
158888A4 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-8M0084276 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
355278A5 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
590-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
623004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
710-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
810-69067 SCREW, PUMP MOUNTING (1 3/8")SCREW, PUMP MOUNTING (1 3/8")
-
922-19688 FITTING, FUEL PUMP (OUTLET)FITTING, FUEL PUMP (OUTLET)
-
1054-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
1132-8M0108355 FUEL LINE, FUEL PUMP TO FILTER COVER (4 1/2")FUEL LINE, FUEL PUMP TO FILTER COVER (4 1/2")
-
1270929 BASE, FUEL PUMPBASE, FUEL PUMP
-
1310-70939 SCREW, BASE TO TRANSFER PORT COVERSCREW, BASE TO TRANSFER PORT COVER
-
1412-20533 WASHER, BASE SCREWWASHER, BASE SCREW
-
1535-59072 SCREEN, FILTER - INLETSCREEN, FILTER - INLET
-
1625-35480 "O" RING, COVER TO HOUSING"O" RING, COVER TO HOUSING
-
1735-91078A1 COVER, FUEL INLETCOVER, FUEL INLET
-
1827-25848 GASKET, NYLON - FILTER COVER SCREWGASKET, NYLON - FILTER COVER SCREW
-
1910-37370 SCREW, COVER TO FUEL PUMP (5/8")SCREW, COVER TO FUEL PUMP (5/8")
-
2022-64705 FITTING, FILTER BASEFITTING, FILTER BASE
-
2132-8M0108355 FUEL LINE, FILTER COVER TO CARBURETOR (8 7/8")FUEL LINE, FILTER COVER TO CARBURETOR (8 7/8")
-
2222-66328 FITTING, TEE - UPPER CARBURETORFITTING, TEE - UPPER CARBURETOR
-
2332-8M0108355 FUEL LINE, CARBURETOR TO CARBURETOR (6 1/4")FUEL LINE, CARBURETOR TO CARBURETOR (6 1/4")
-
2422-19688 FITTING, ELBOW - LOWER CARBURETORFITTING, ELBOW - LOWER CARBURETOR
-
2522-64705 FITTING, FUEL LINE TO FUEL PUMP (INLET)FITTING, FUEL LINE TO FUEL PUMP (INLET)
-
2632-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (12 1/2")FUEL LINE, ADAPTOR TO FUEL PUMP (12 1/2")
-
2722-63981 ELBOW, FUEL LINE TO ADAPTORELBOW, FUEL LINE TO ADAPTOR
-
2830188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2925-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
3024-30189 SPRING, ADAPTOR STEM
UNITED STATES 4153349 AND BELOW
AUSTRALIA 8030639 AND BELOW
BELGIUM 9086163 AND BELOW
CANADA 7054482 AND BELOWSPRING, ADAPTOR STEM
UNITED STATES 4153349 AND BELOW
AUSTRALIA 8030639 AND BELOW
BELGIUM 9086163 AND BELOW
CANADA 7054482 AND BELOW -
3130185Q3 STEM, CHECK UNIT ADAPTOR
UNITED STATES 4153349 AND BELOW
AUSTRALIA 8030639 AND BELOW
BELGIUM 9086163 AND BELOW
CANADA 7054482 AND BELOWSTEM, CHECK UNIT ADAPTOR
UNITED STATES 4153349 AND BELOW
AUSTRALIA 8030639 AND BELOW
BELGIUM 9086163 AND BELOW
CANADA 7054482 AND BELOW -
3230186 ADAPTOR, CHECK UNIT (FUEL LINE)
UNITED STATES 4153349 AND BELOW
AUSTRALIA 8030639 AND BELOW
BELGIUM 9086163 AND BELOW
CANADA 7054482 AND BELOWADAPTOR, CHECK UNIT (FUEL LINE)
UNITED STATES 4153349 AND BELOW
AUSTRALIA 8030639 AND BELOW
BELGIUM 9086163 AND BELOW
CANADA 7054482 AND BELOW -
3024-23067T SPRING, ADAPTOR STEM
UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UPSPRING, ADAPTOR STEM
UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UP -
3123069 STEM, CHECK UNIT ADAPTOR
UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UPSTEM, CHECK UNIT ADAPTOR
UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UP -
3222833 ADAPTOR, CHECK UNIT (FUEL LINE)
UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UPADAPTOR, CHECK UNIT (FUEL LINE)
UNITED STATES 4153350 AND UP
AUSTRALIA 8030640 AND UP
BELGIUM 9086164 AND UP
CANADA 7054483 AND UP -
3310-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
-
3411-826709109 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
